Day 98: Electrical Wiring And Devices On Roof - Day 4

Long-Form Article

Elevating My Ford Transit Camper Van: Security And Lighting Upgrades

Transforming my 2023 Ford Transit 250 into a bespoke camper van has been a thrilling expedition. It's a journey marked by numerous projects, each designed to bolster both the van's utility and its security. Notably, the integration of DIY security camera mounting and the addition of small LED lights have significantly upgraded the van’s security apparatus and its external illumination. This article outlines the steps I took in this particular project, detailing the materials and tools I employed, and the progress thus far.

Project Overview

Completed Tasks:

• Installation of high-quality security cameras and small LED lights.

Upcoming Tasks:

• Installation of the conduit, wire running, a roof fan, and solar panels.

Time Invested:

• 12 Hours.

Execution Details

Mounting Security Cameras:

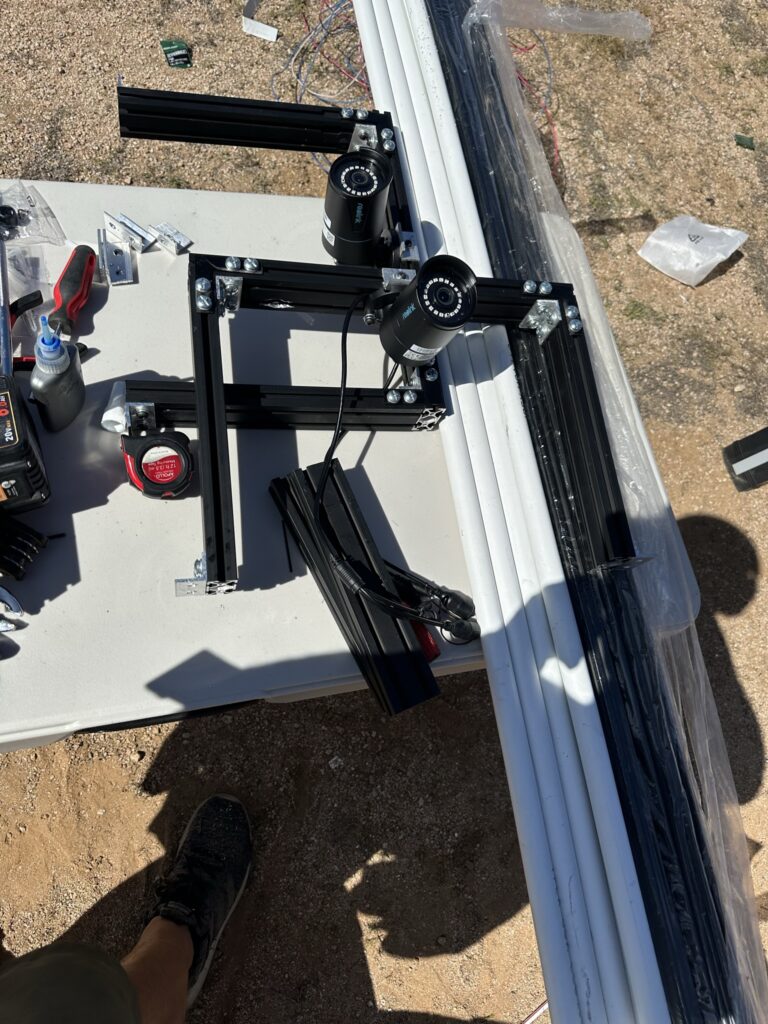

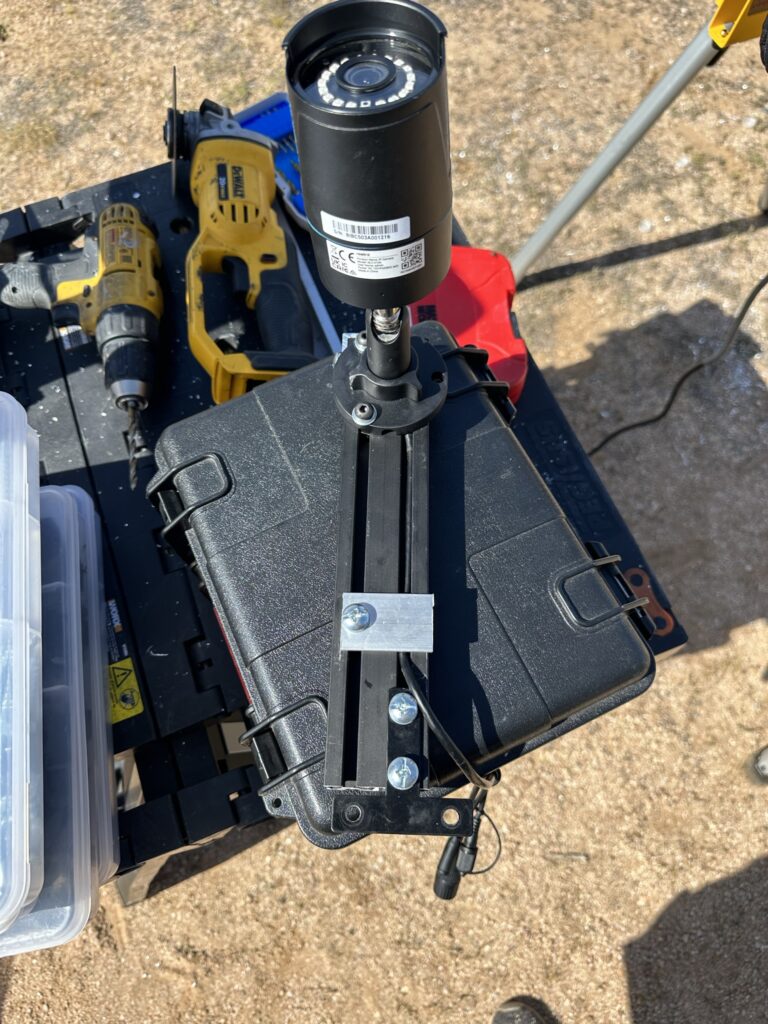

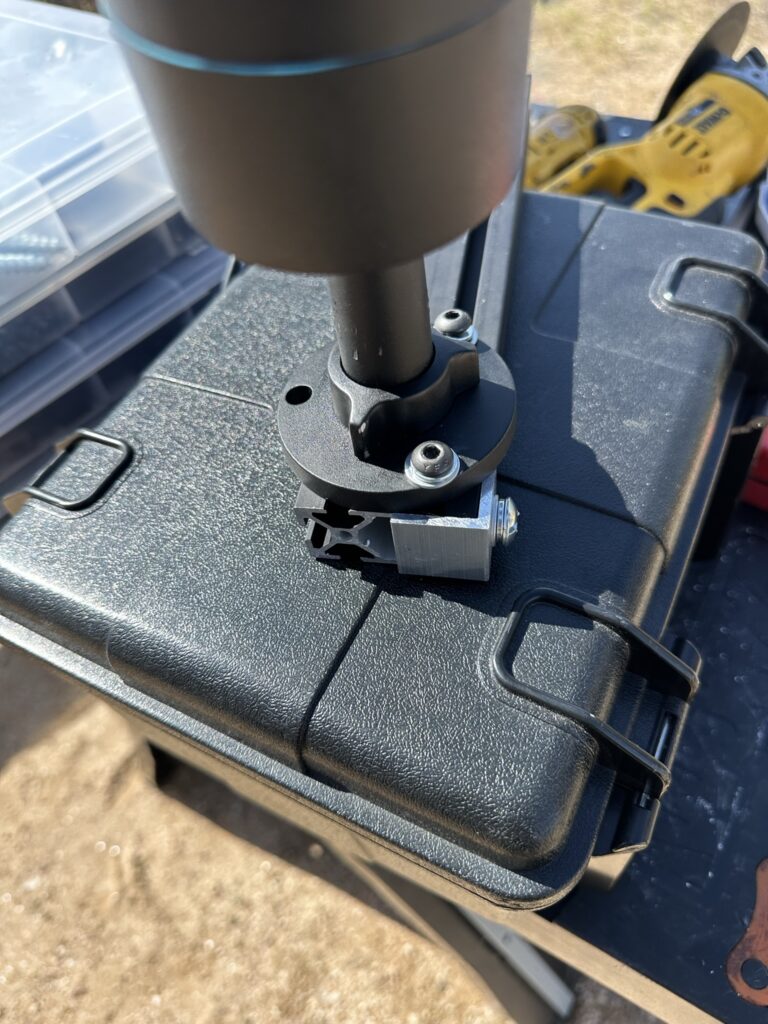

• I started by using a compact drill driver and a titanium drill bit to widen holes on the aluminum extrusion for the security camera mounting. This initial step ensured the mounts would fit perfectly.

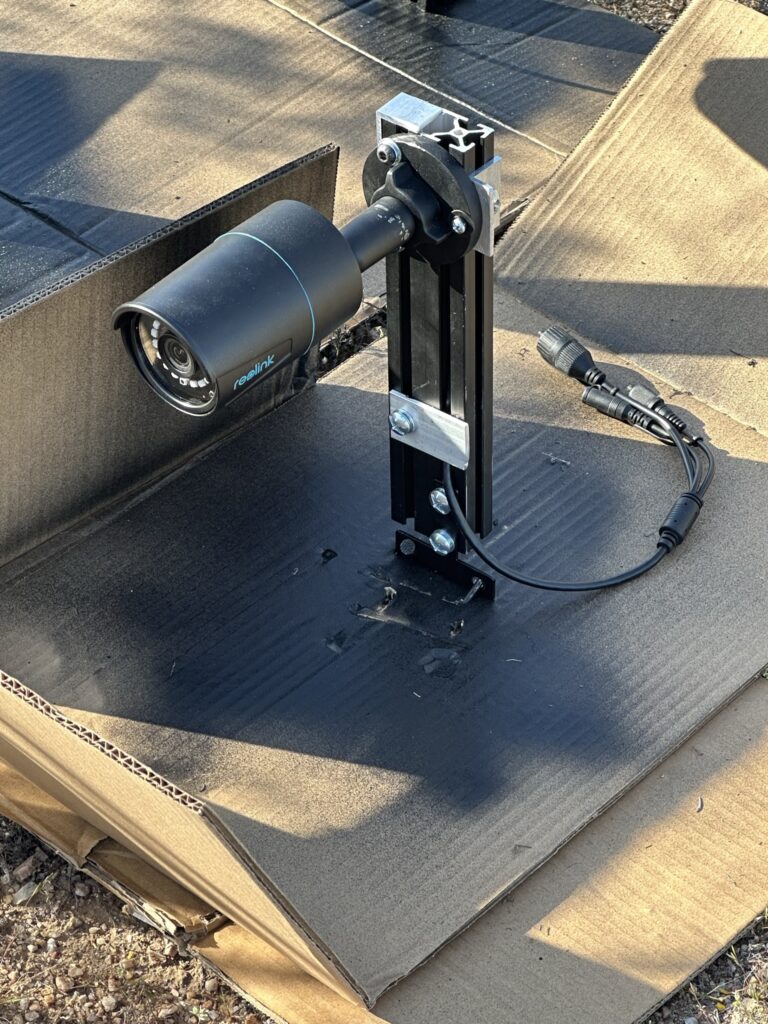

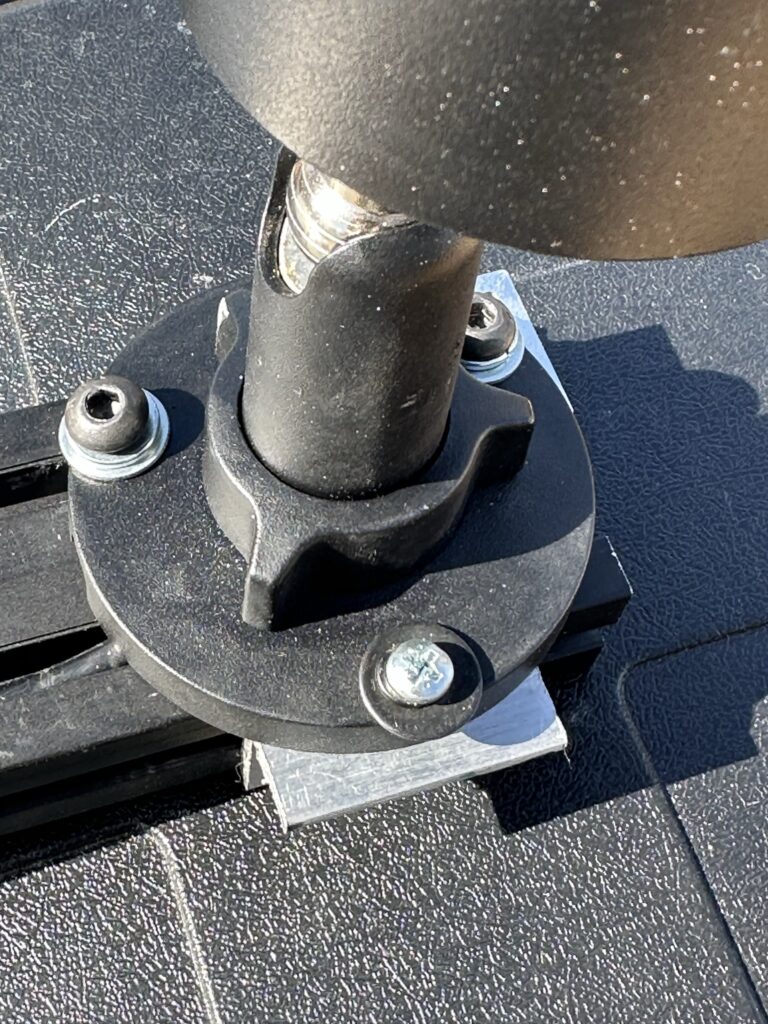

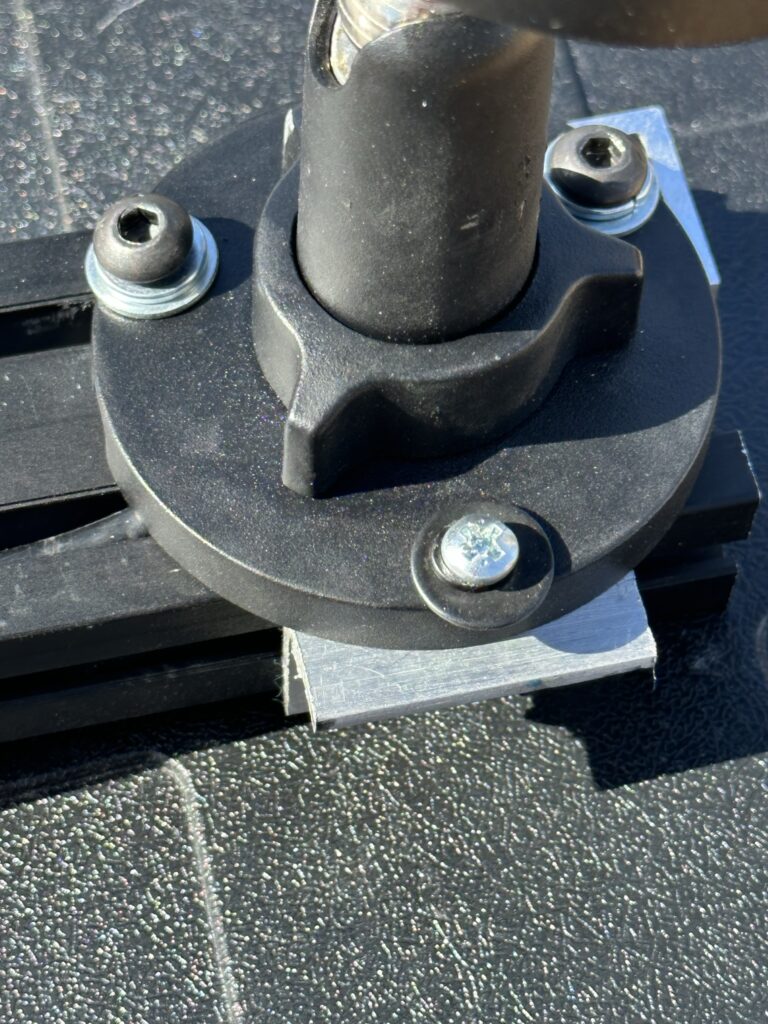

• Side brackets were then added to each security camera mount, enhancing their stability. This was crucial for maintaining the fields of view and ensuring the longevity of the setup.

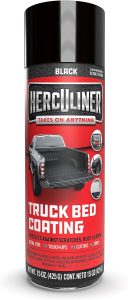

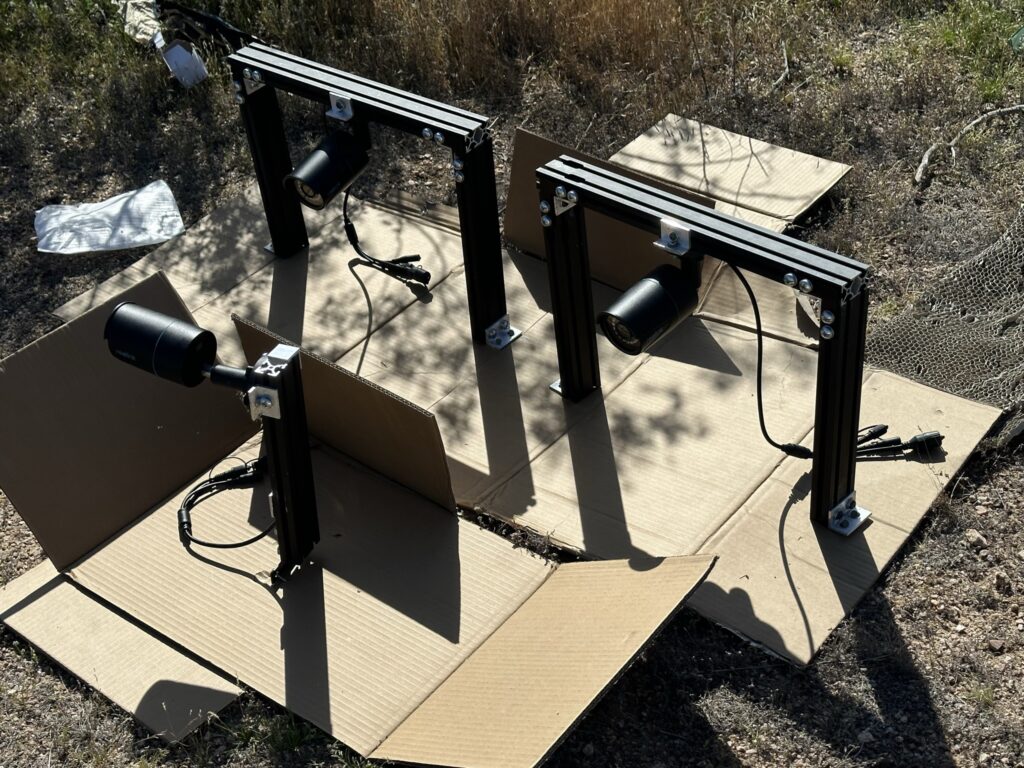

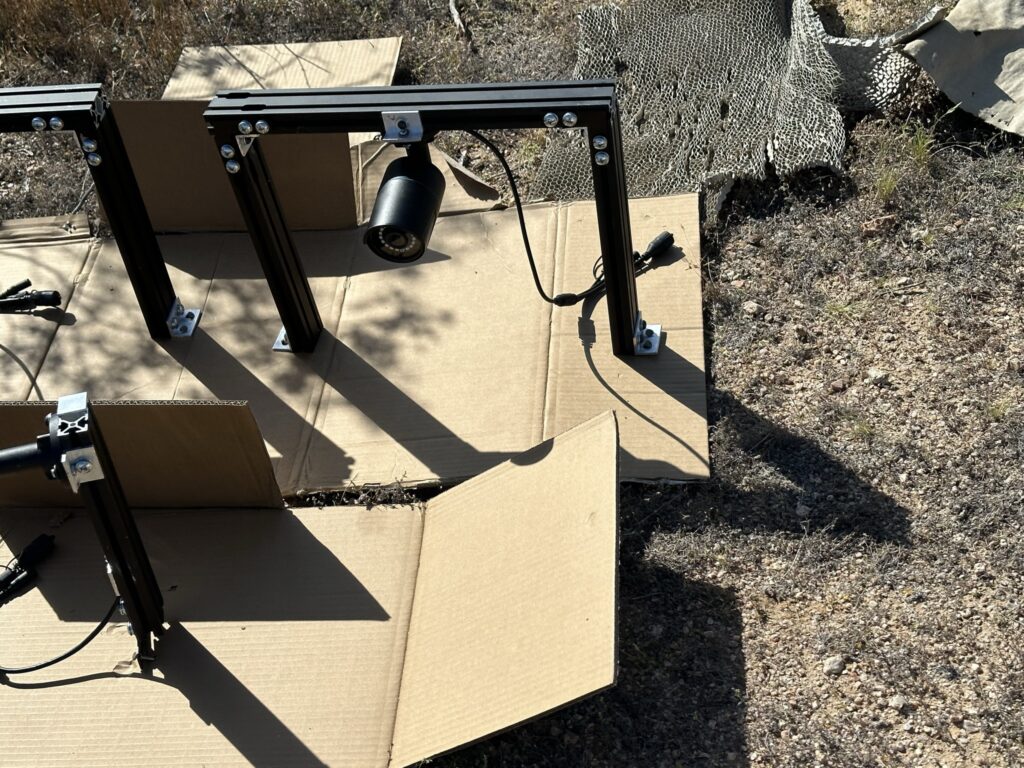

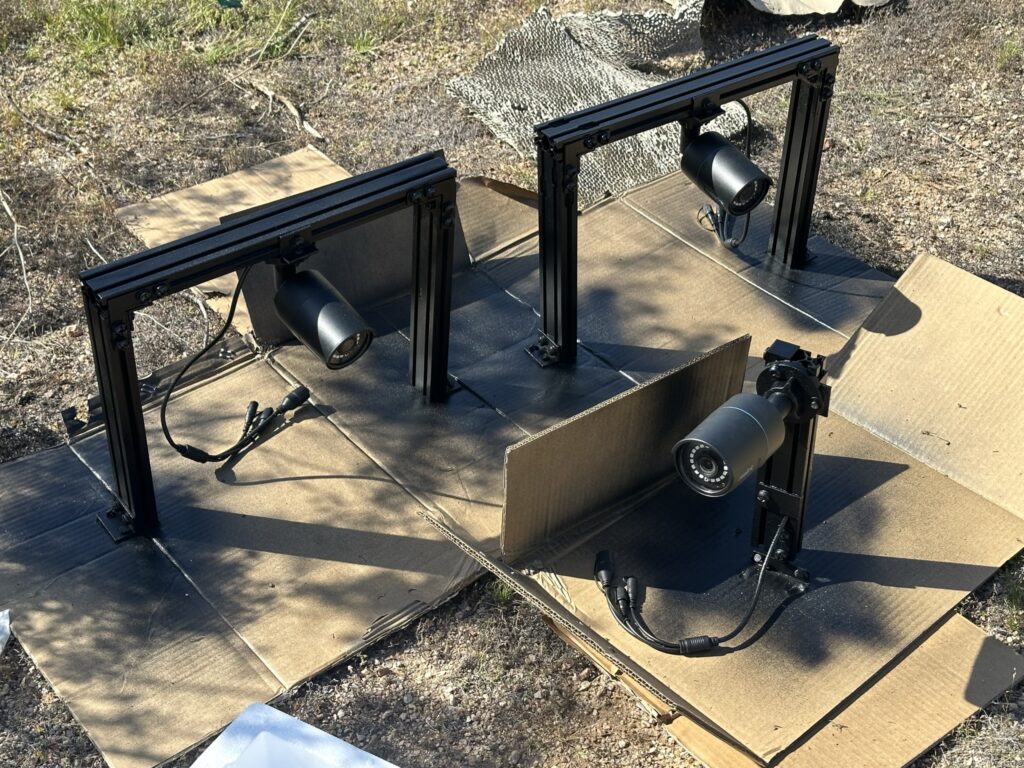

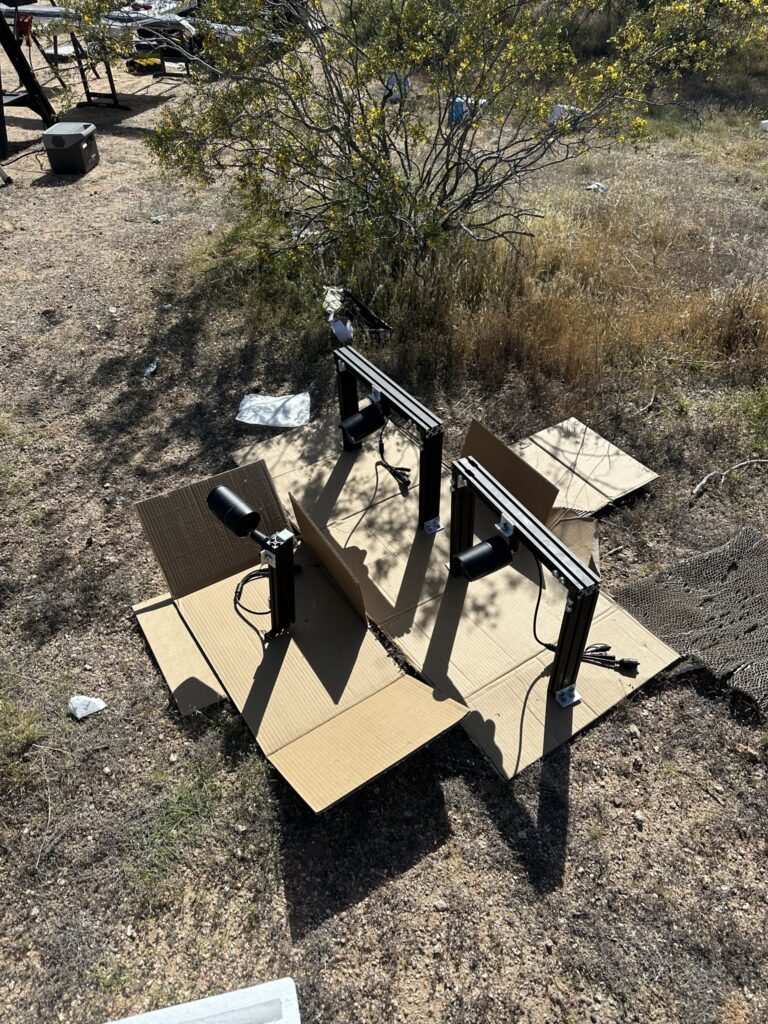

• The mounts received a coat of black bedliner paint for a durable and aesthetically pleasing finish.

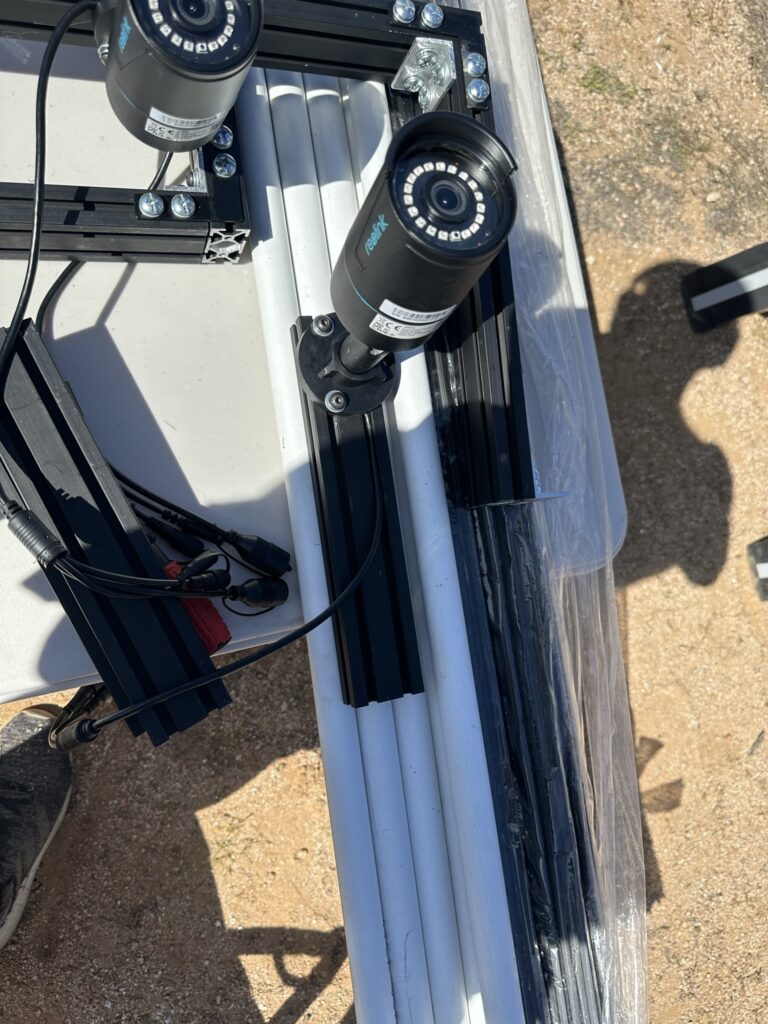

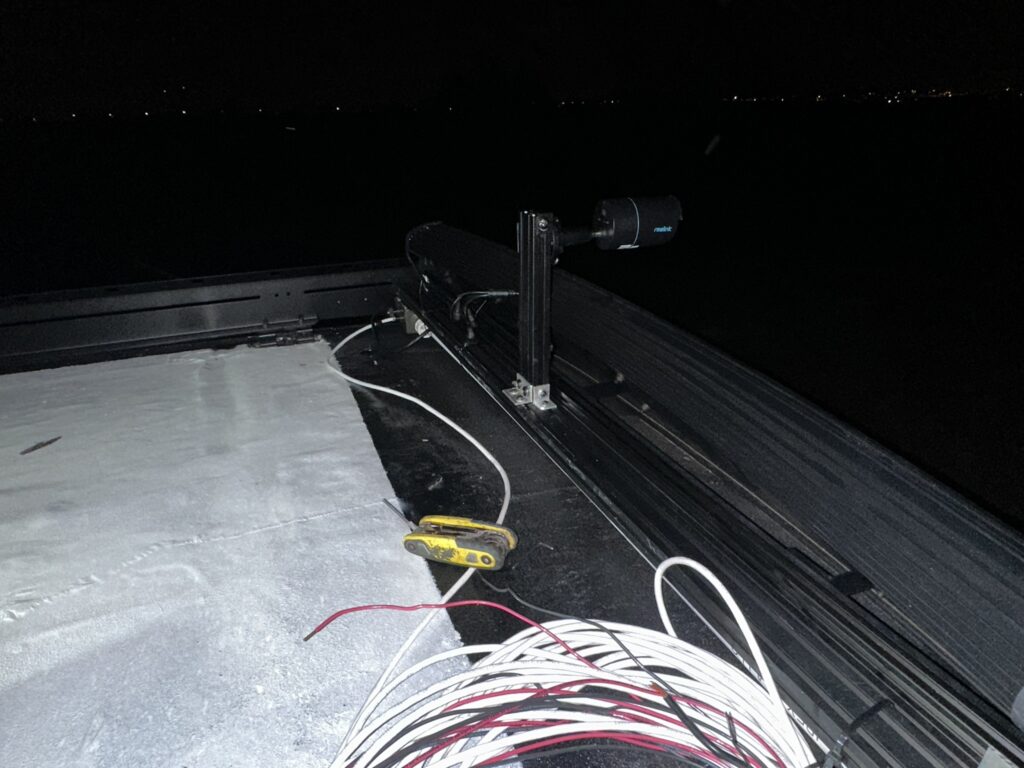

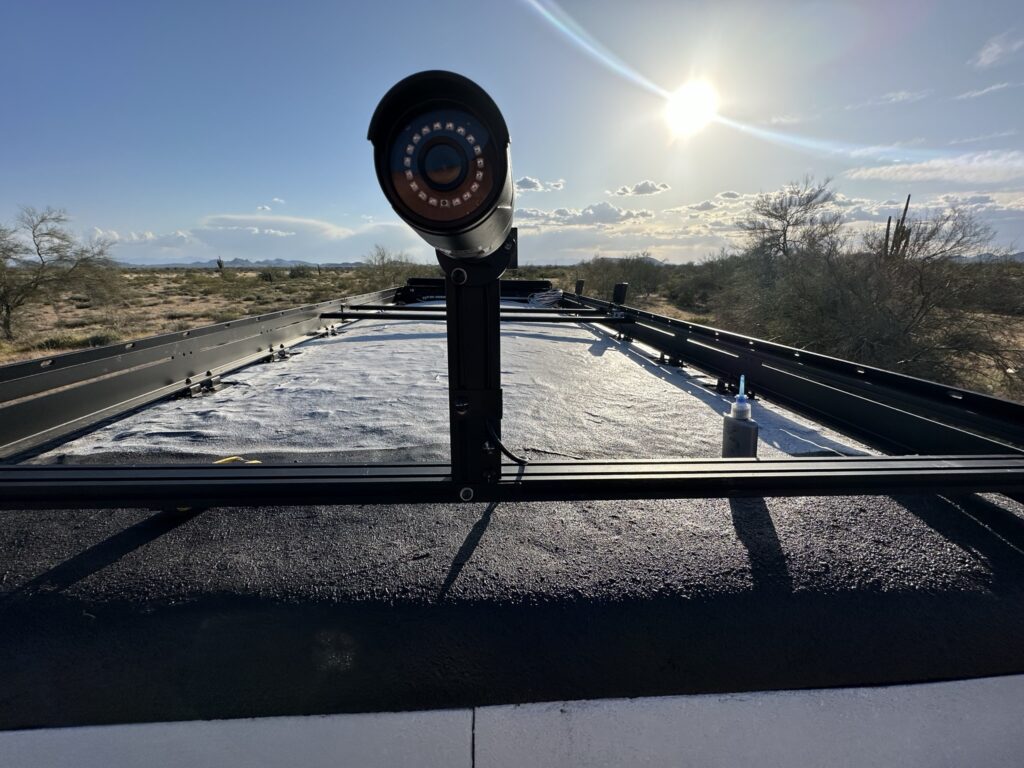

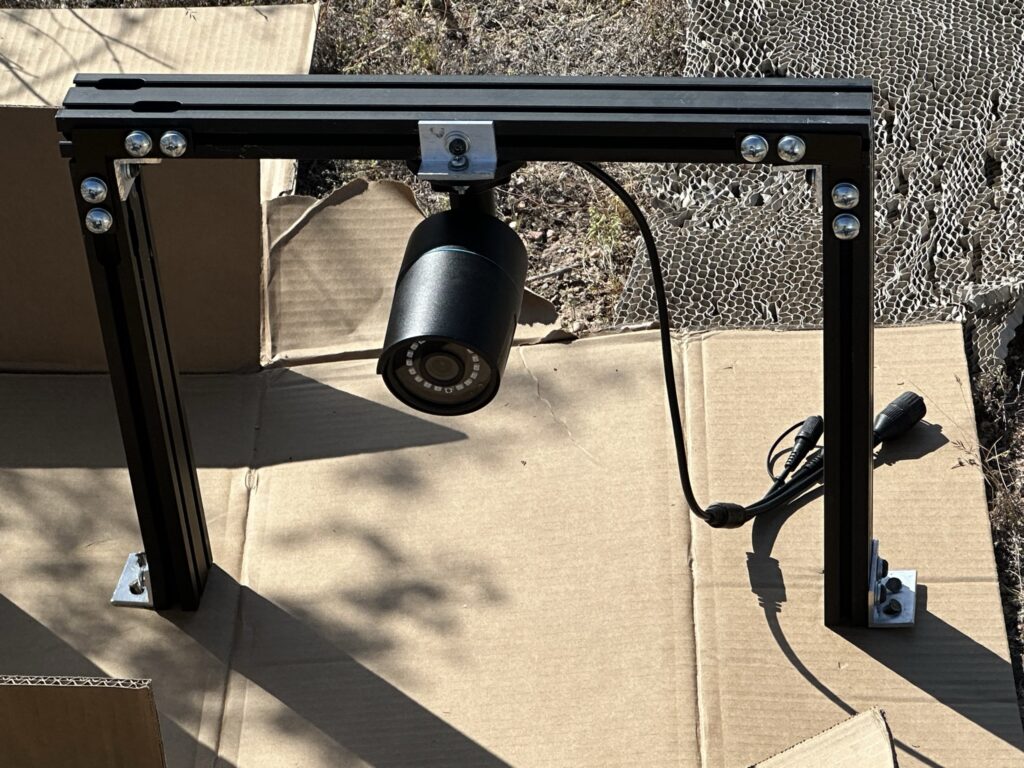

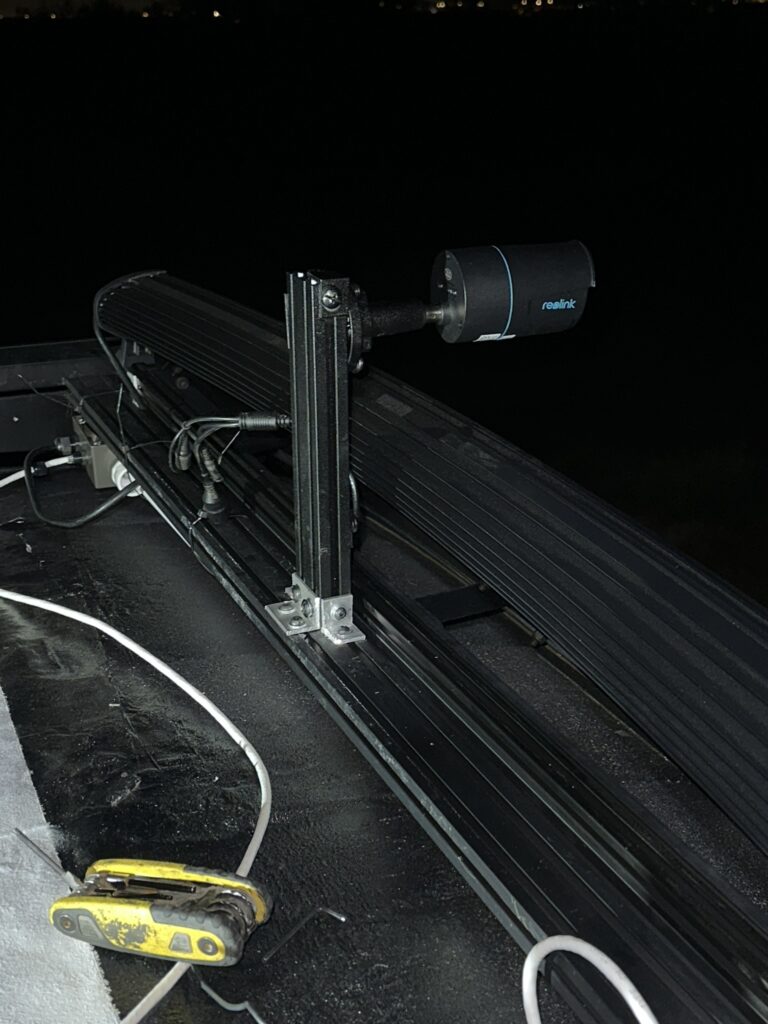

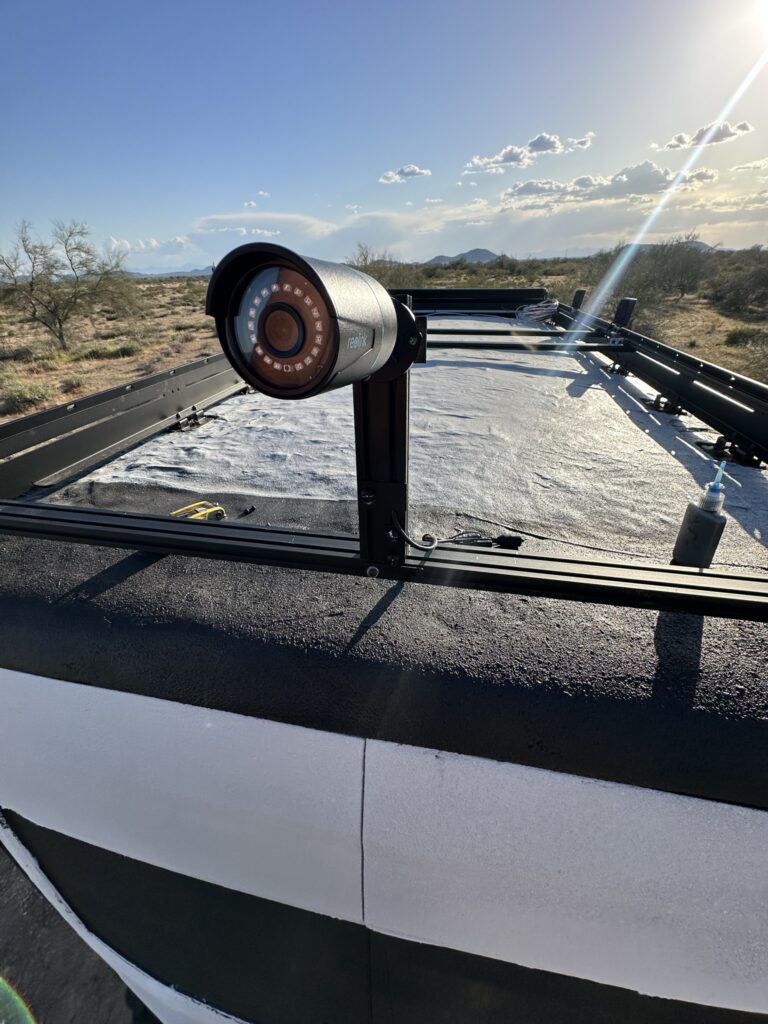

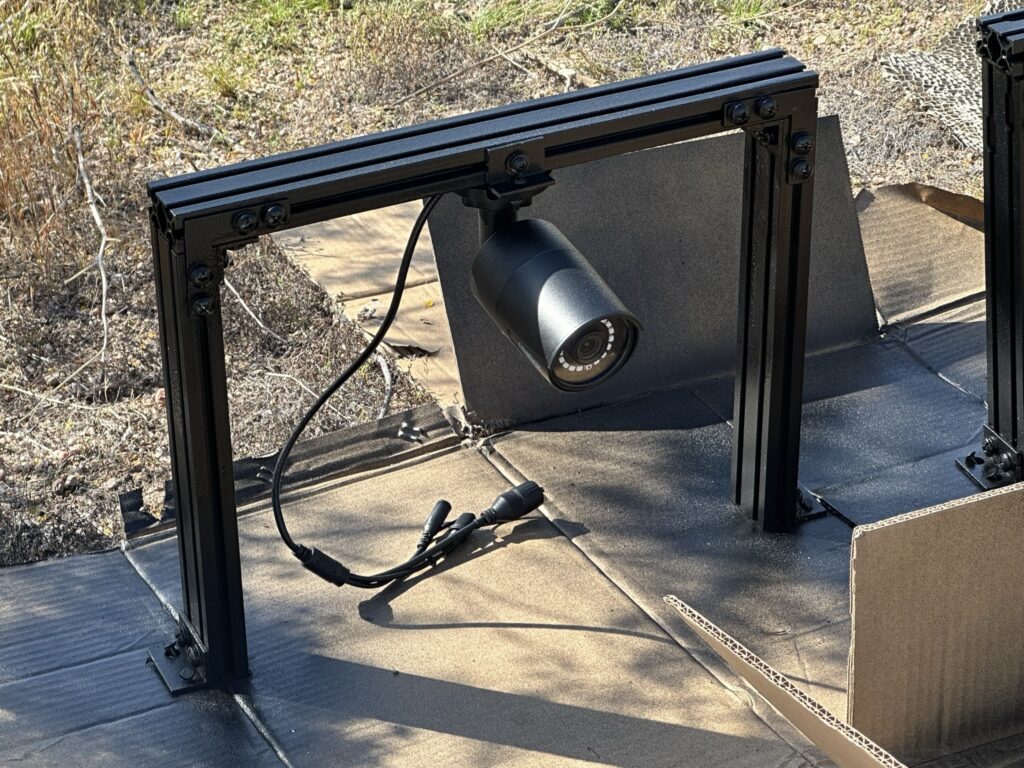

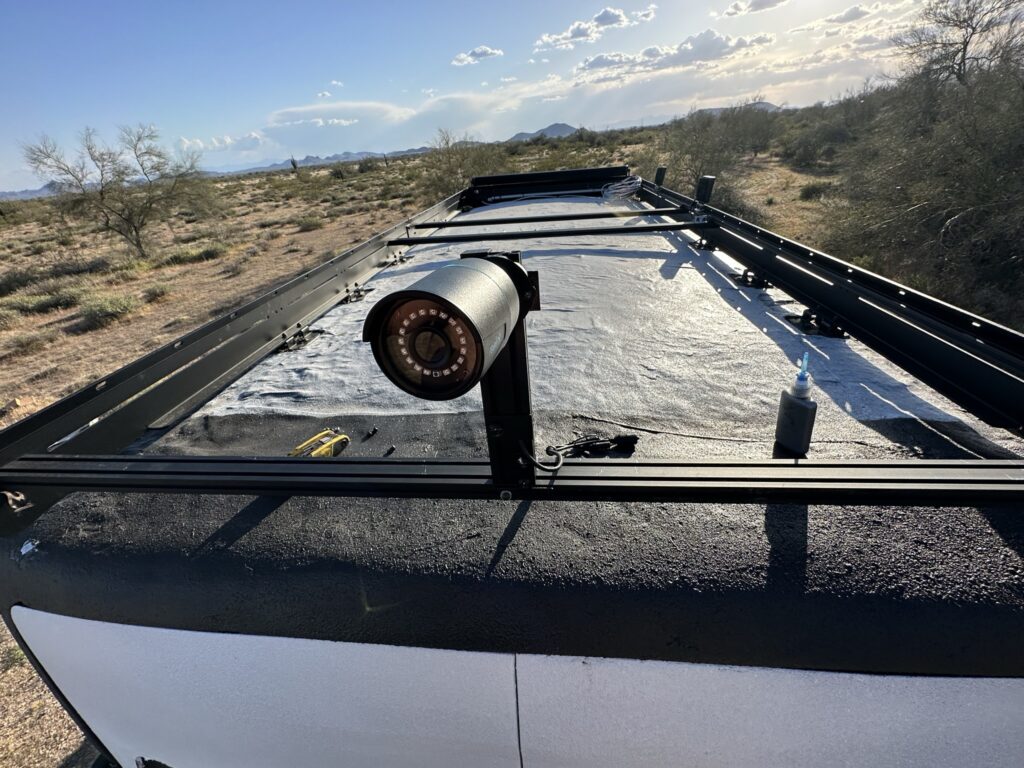

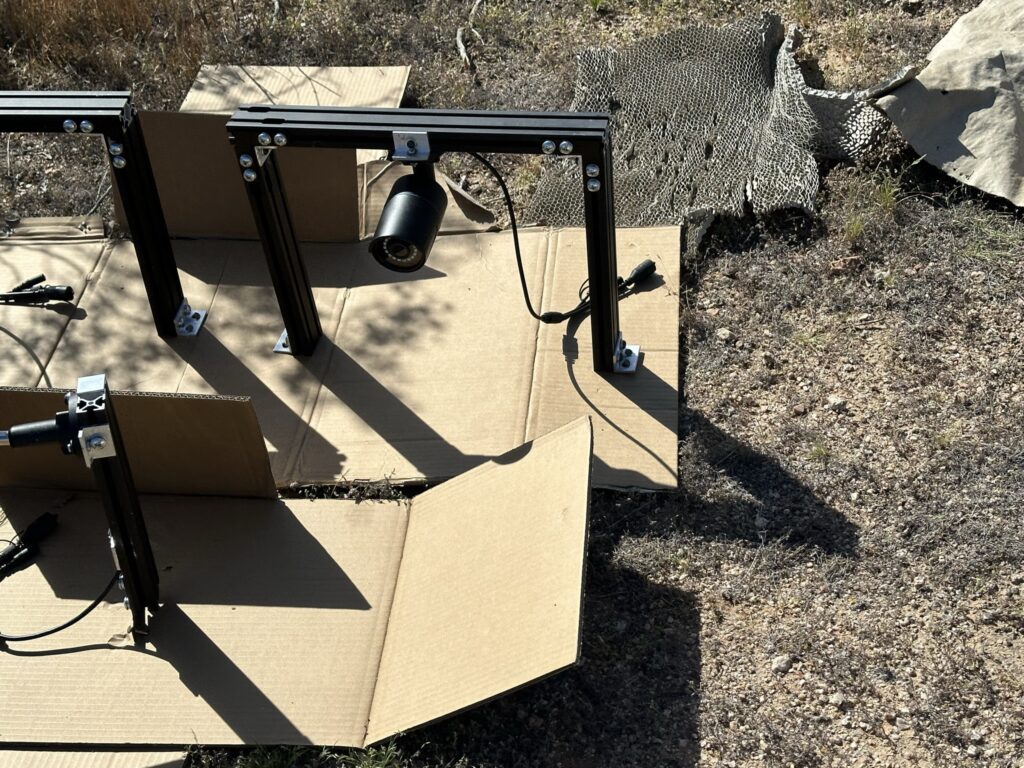

• The culmination of this process was the assembly of the final security camera mount, using aluminum extrusion and ensuring every camera was equipped with color night vision for optimal monitoring, even in low-light conditions.

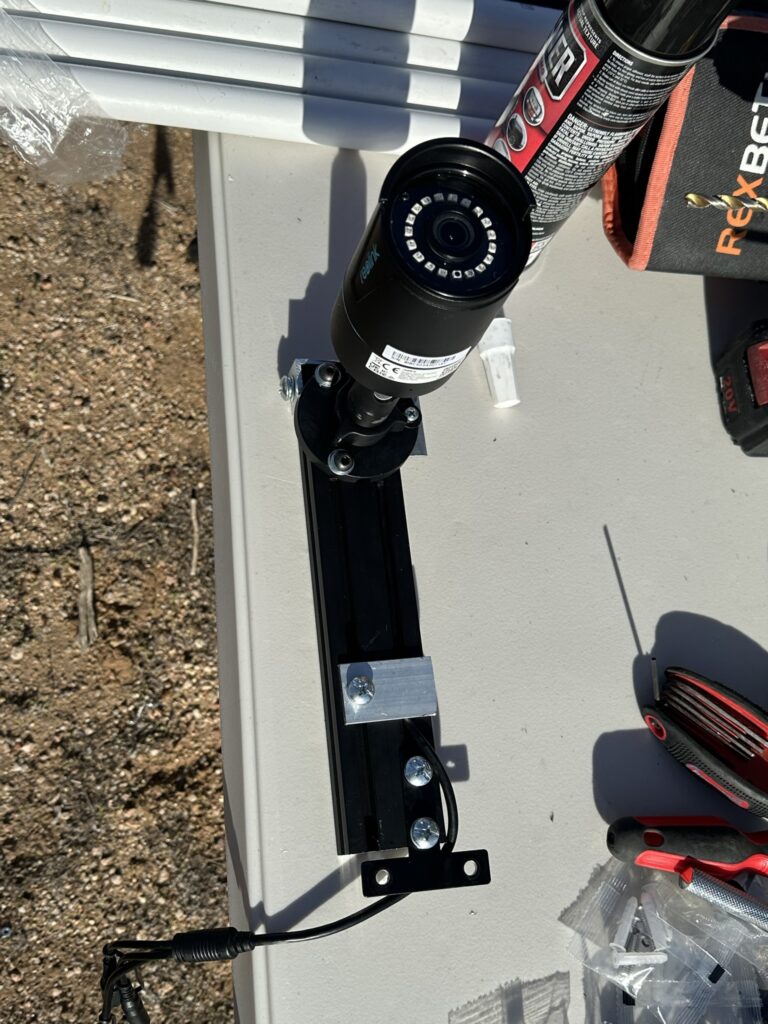

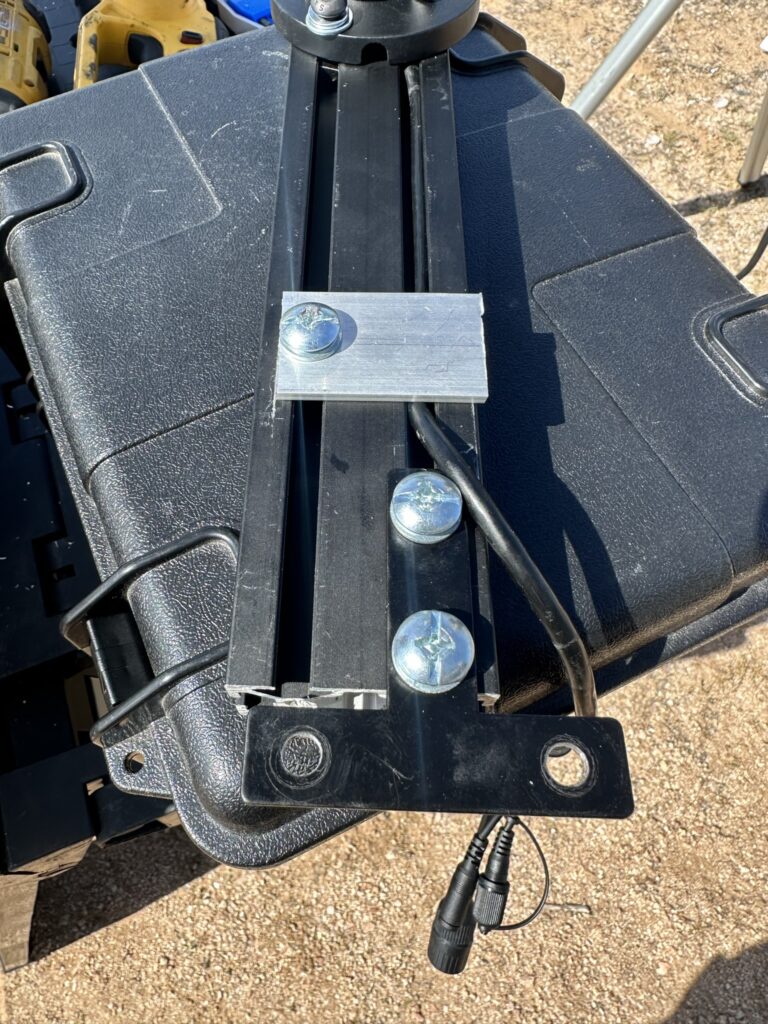

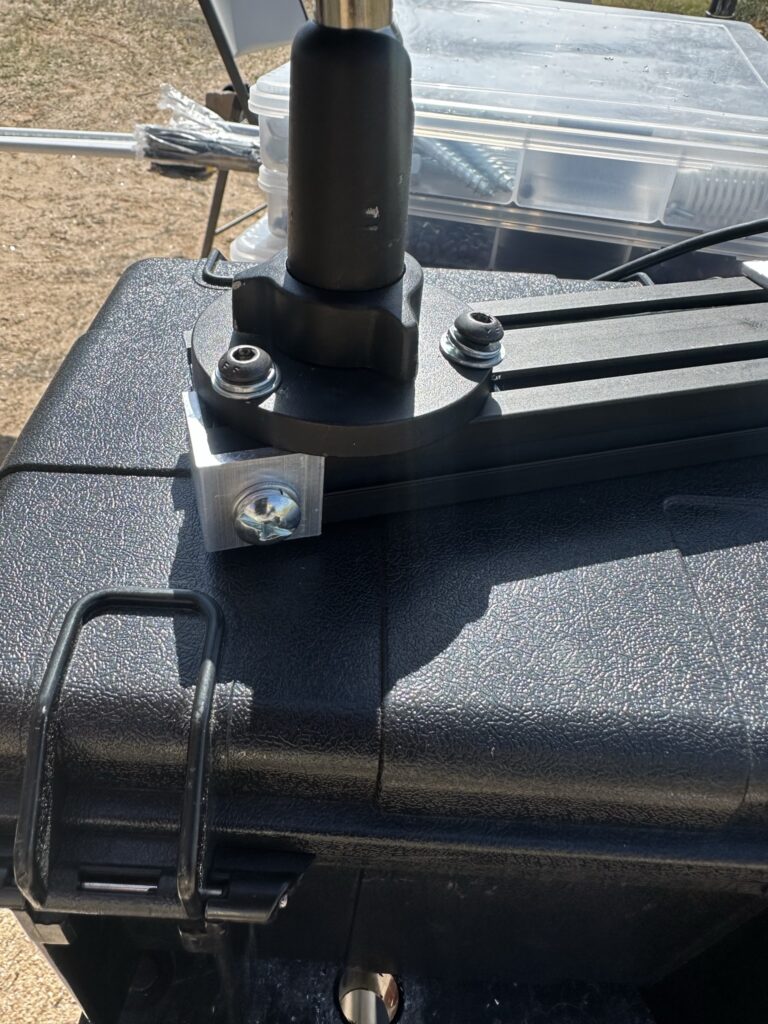

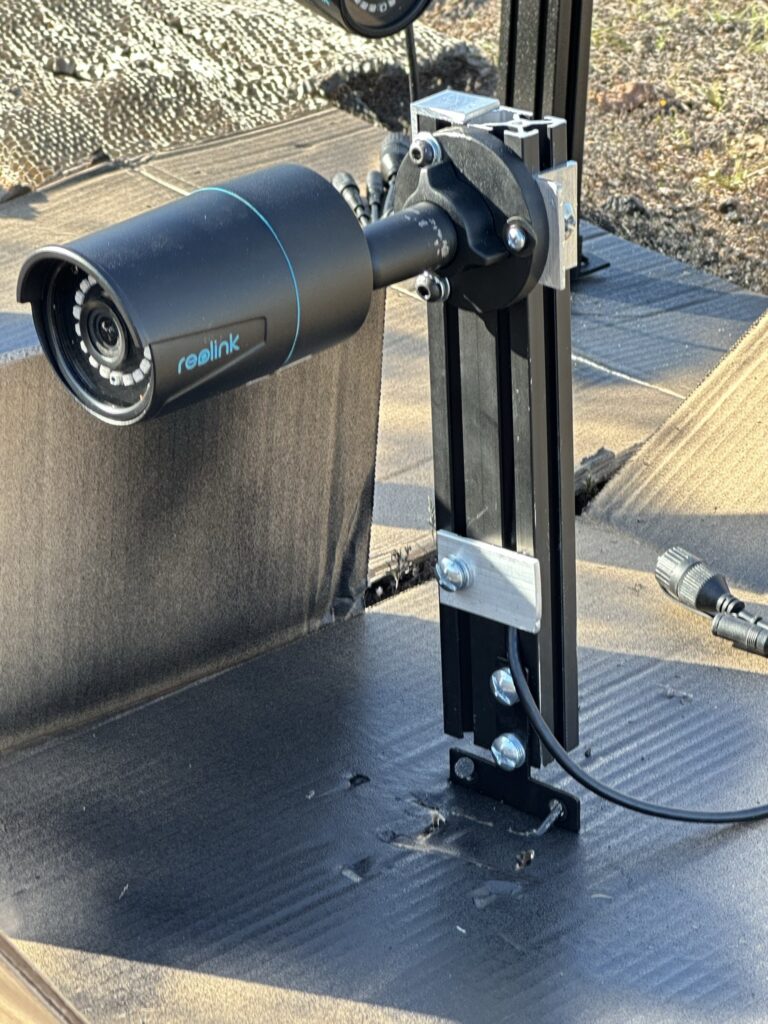

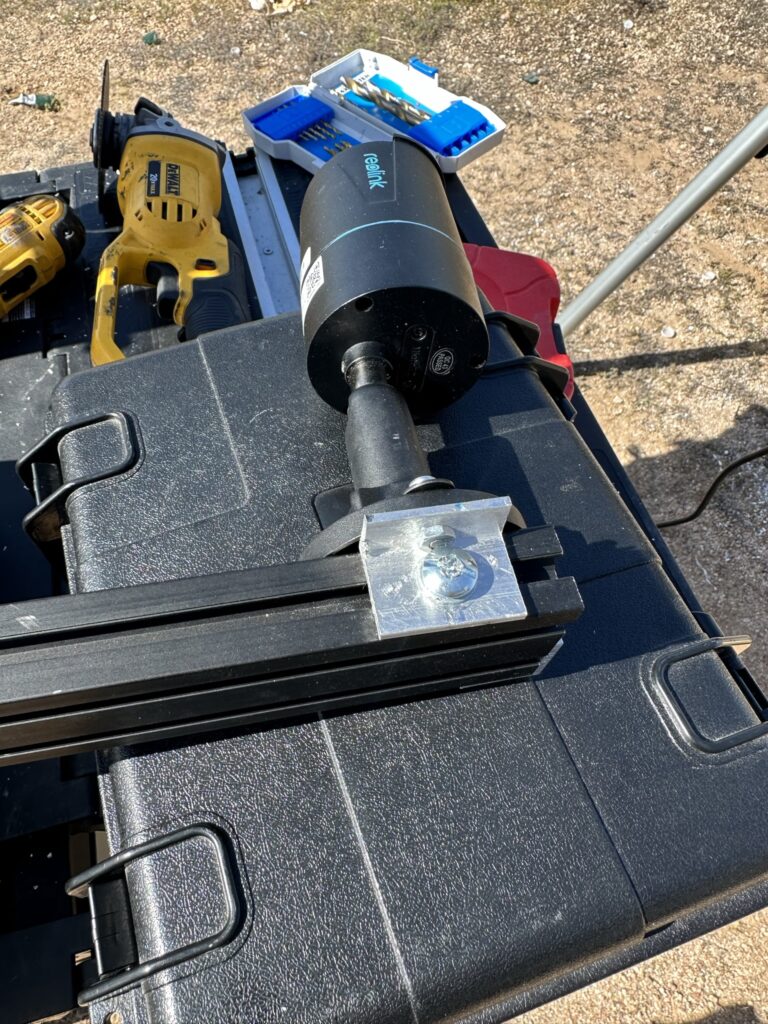

• A specially designed DIY bracket was created to provide additional attachment security and to secure the camera wire within the extrusion channel, keeping the setup neat.

LED Light Installation:

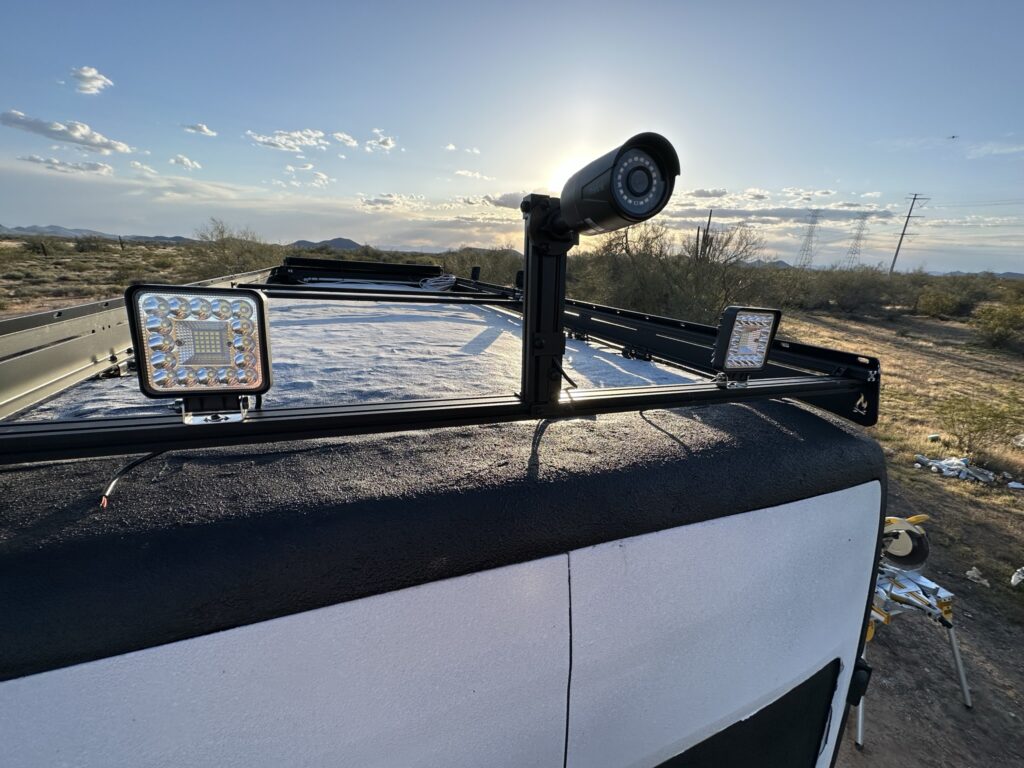

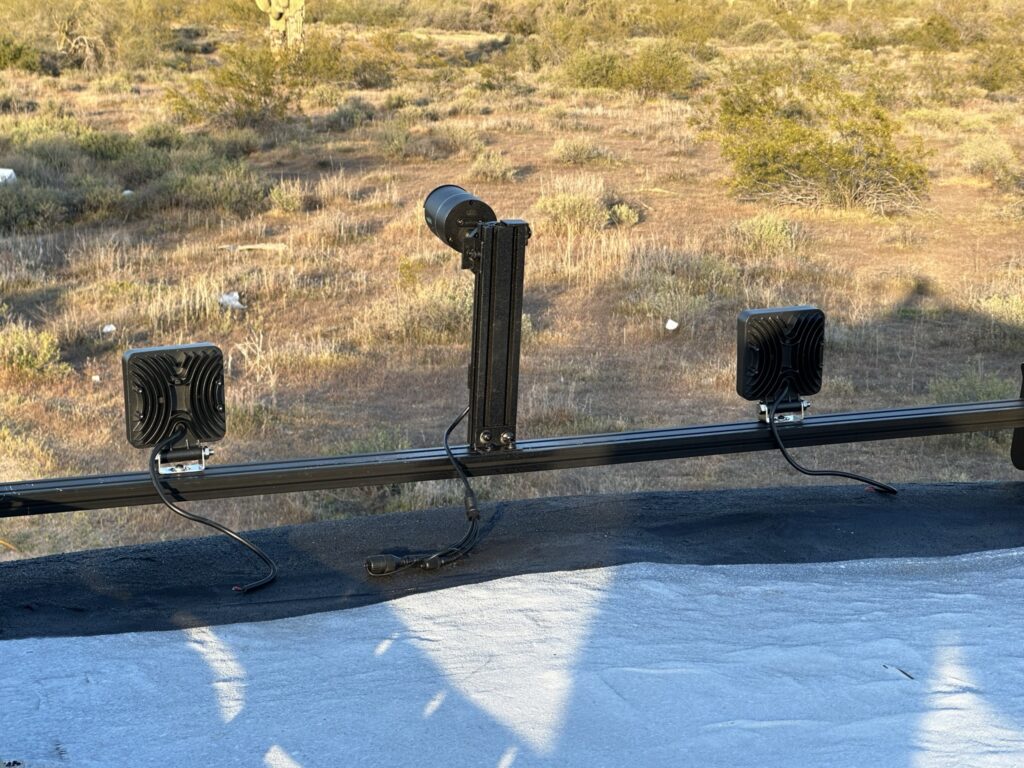

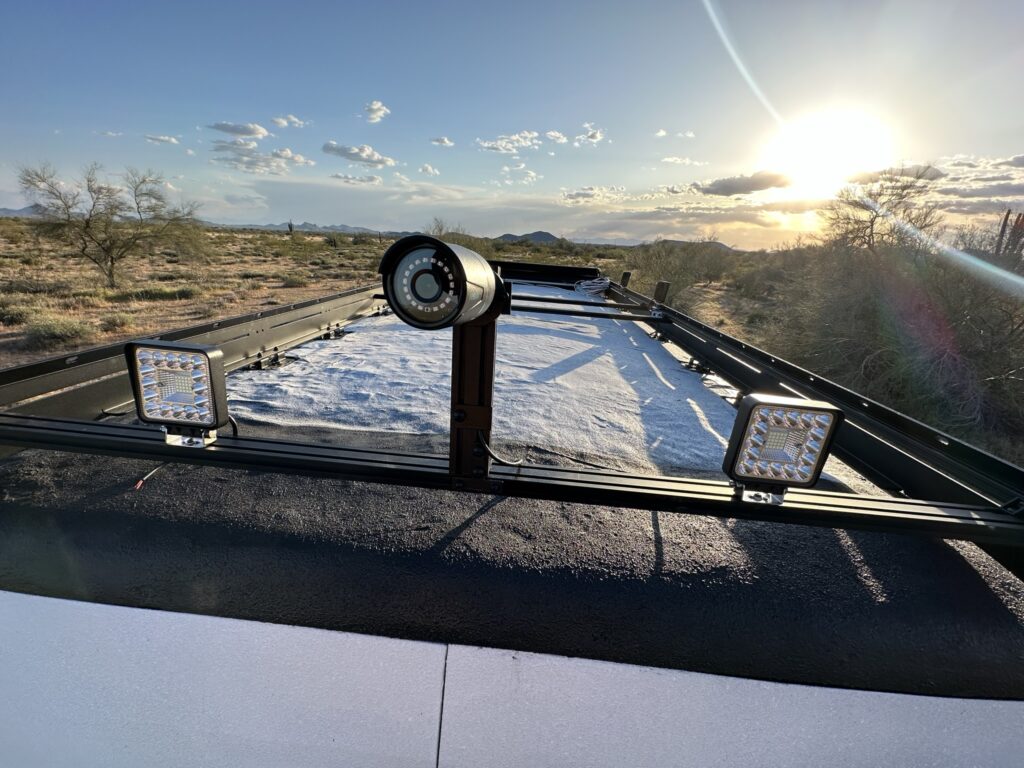

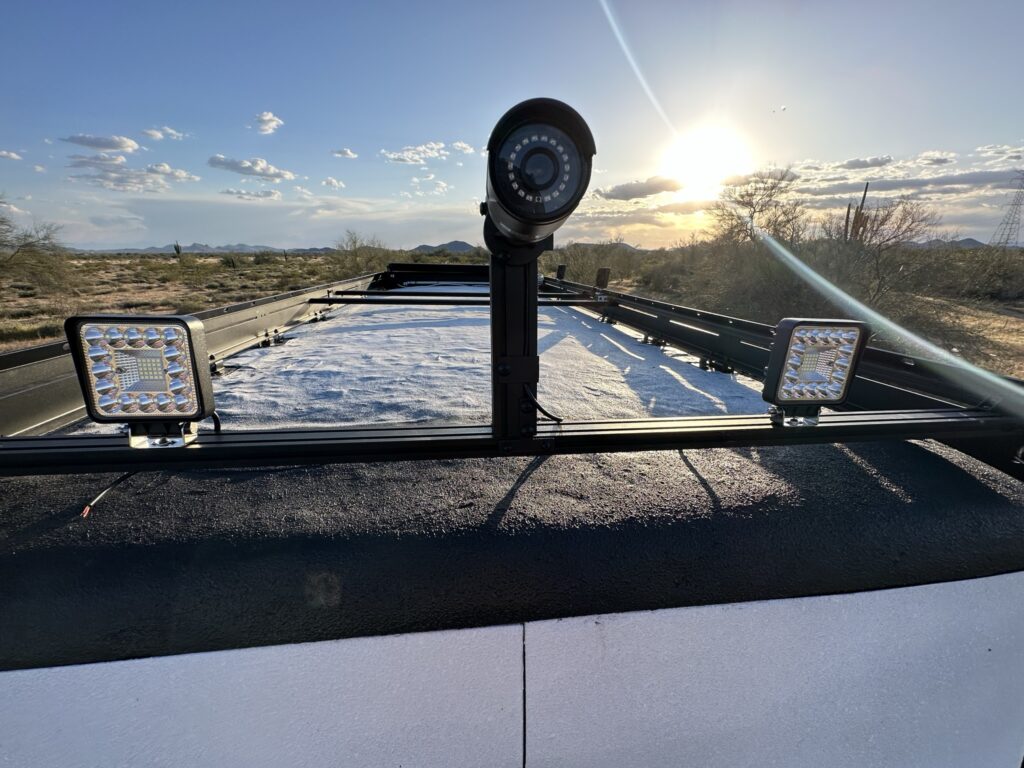

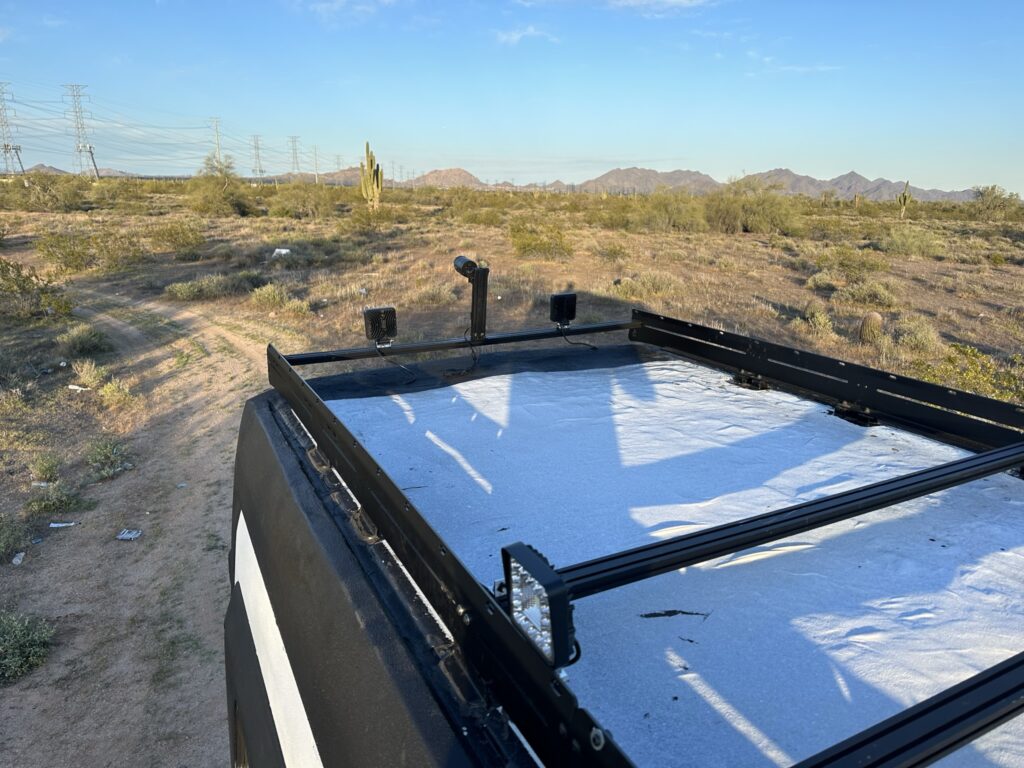

• On the rear and passenger side of the roof rack, I attached two small LED lights, ensuring easy installation and optimal illumination.

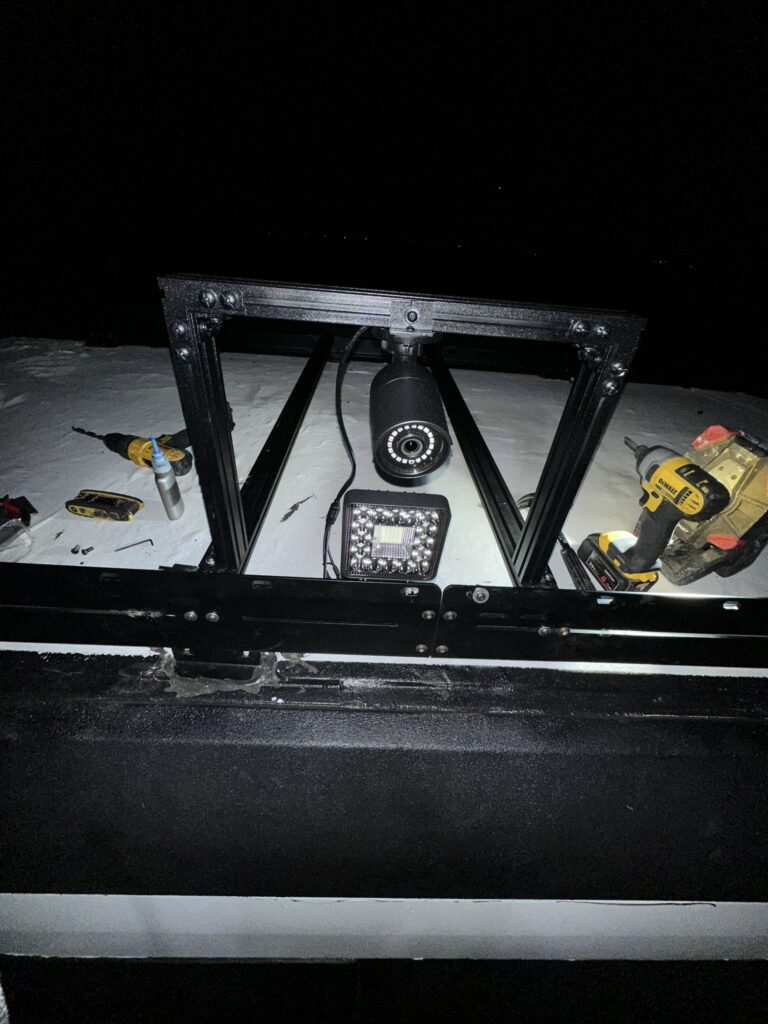

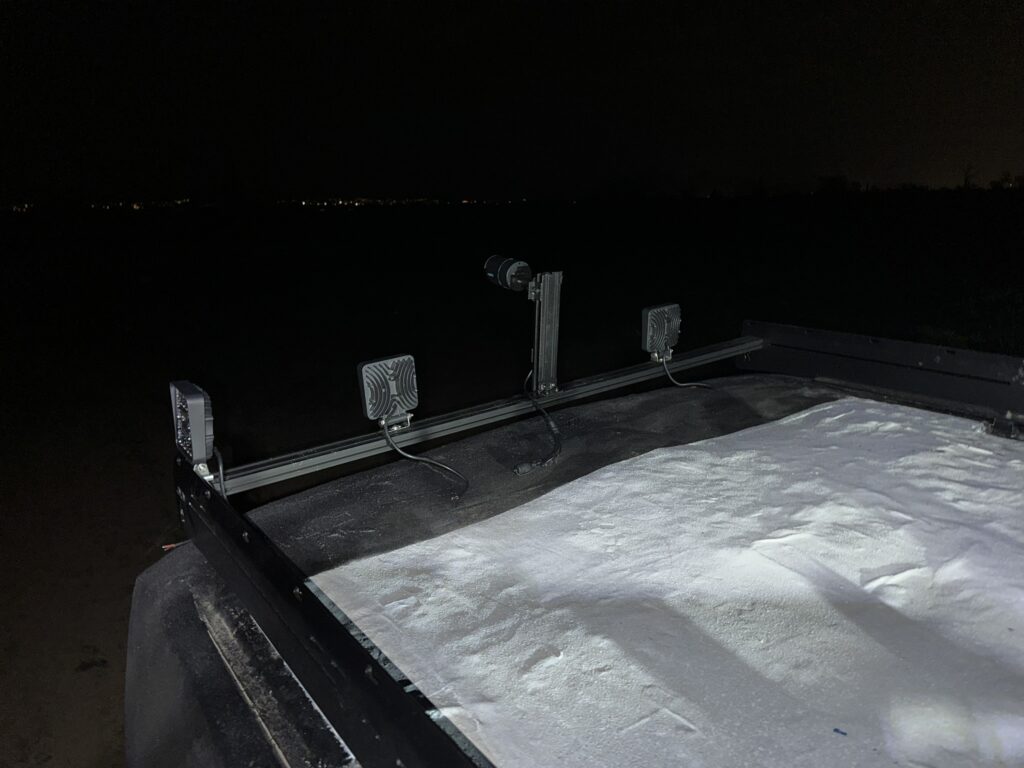

• Additionally, three small LED lights were strategically placed at the front, middle, and rear on the driver's side, enhancing the van's exterior visibility and safety.

Materials And Tools

Materials:

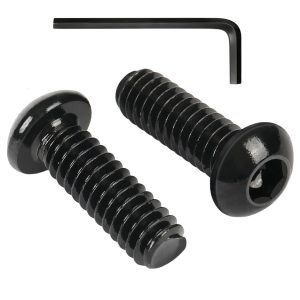

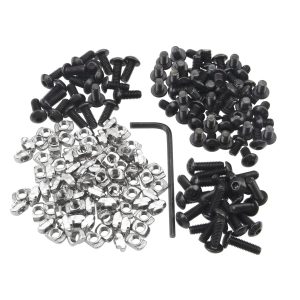

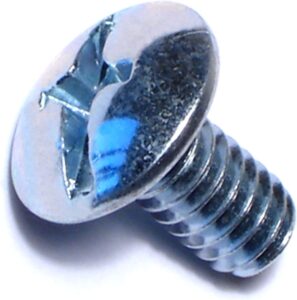

• A variety of bolts, washers, and screws ensured each component was securely attached.

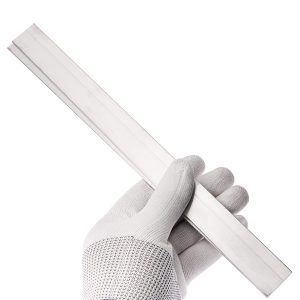

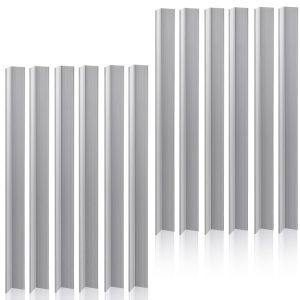

• Custom brackets, crafted from aluminum angle bars and flat bars, provided tailored support for the security camera systems and LED lights.
• The project centered around high-quality security cameras and outdoor cameras, each selected for their durability, battery life, and ease of installation.
• A premium quality roof rack was chosen to support the added equipment without compromising the van's aerodynamics or design.

Tools:

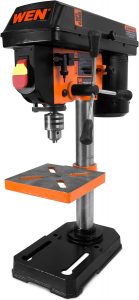

• Dewalt tools were invaluable throughout the project, with the compact drill driver, and a benchtop drill press playing key roles in the precise assembly and installation of components.
• A titanium drill bit set facilitated the creation of accurate, clean holes for mounting, while various other essentials like replacement batteries ensured a smooth workflow.

Reflections And Forward Look

After dedicating a long day in the desert, from noon until the early hours, my commitment to transforming my van remains unwavering. Segmenting the larger conversion endeavor into smaller, daily achievable projects has been instrumental in maintaining momentum and focus.

Plans for Tomorrow:

Following four days of intensive labor, a day of rest is on the horizon. However, this pause is brief, as work on the electrical and conduit installation atop the roof will resume shortly. It's a careful balance of rest and productivity to ward off procrastination.

This phase of the project, focusing on security camera systems and lighting, underscores the importance of meticulous planning and execution. From ensuring the security camera mount offers ample attachment security to optimizing the battery life of outdoor cameras, every step is geared toward creating a van that's not just a means of travel, but a secure, well-lit home on wheels.
