Projects

  • Installing PVC conduit and junction boxes on roof
  • Running power and ethernet wires through conduit
  • Installing 2020 aluminum extrusion on existing Flatline Rack 80/20 extrusion
  • Installing small LED lights

Project Status

  • Not complete

Time Spent

  • 12 Hours

Steps Taken

  1. Put mental junction box together
  2. Drill holes in junction box for wire glands
  3. Install wire glands in drilled holes in junction box
  4. Use heat gun and solder seal wire connectors to splice power wires from LED light bar together
  5. Run power and ethernet wires through junction box
  6. Cut PVC pipe and install on junction box
  7. Move Flatline Roof Rack 80/20 extrusion cross beams to fit length of solar panels
  8. Install 2020 aluminum extrusion on top of Flatline Roof Rack 80/20 extrusion with corner brackets
  9. Bring 2 solar panels up on roof for fitting purposes
  10. Cut 2020 extrusion to size
  11. Cut and drill holes in flat aluminum plates to size to lift up small LED lights (2 plates per light)
  12. Mount 2 small LED lights on 2020 extrusion on passenger side of roof

Plans For Tomorrow

  1. Continue work on roof electrical items

Materials Used

  • Keep in mind that prices frequently fluctuate.
  • It's common for products to be delisted on Amazon. If you find a delisted product, please Email Me at steve@campervanfreedom.com and I will fix it.
Nilight - 71017C-A 54" 312W Curved LED Work Light

Nilight - 71017C-A 54" 312W Curved LED Work Light

EXTREMELY BRIGHT: 104 x 3W High Power LED Chips, super bright and powerful LED light bar dispels the darkness

View On Amazon
Ixgnij 10Pcs 2000Mm T Slot 2020 Aluminum Extrusion

Ixgnij 10Pcs 2000Mm T Slot 2020 Aluminum Extrusion

High-strength European standard aluminum profile, the surface is anodized, making the surface smoother and cleaner.

View On Amazon
180Pcs M5 T-Nuts Screws Assortment Kit

180Pcs M5 T-Nuts Screws Assortment Kit

For 2020 extrusion

View On Amazon
60Pcs 1/4-20 X 3/4" Button Head Socket Cap Bolts Screws

60Pcs 1/4-20 X 3/4" Button Head Socket Cap Bolts Screws

For 80/20 extrusion

View On Amazon
Small Parts 18-8 Stainless Steel Flat Washer (Pack Of 100)

Small Parts 18-8 Stainless Steel Flat Washer (Pack Of 100)

For 1/4-20 80/20 extrusion screws

View On Amazon
The Hillman Group 300018 1/4" Split Lock Washer, Steel, 100 Pieces

The Hillman Group 300018 1/4" Split Lock Washer, Steel, 100 Pieces

For 1/4-20 80/20 extrusion screws

View On Amazon
Medium Strength Thread Locker 243

Medium Strength Thread Locker 243

Threadlocker: Thread locker has strong adhesion and can fix screws, nuts, and metal fasteners to prevent loosening due to vibration.

View On Amazon
M5 Flat Washer, 18-8 (304) Stainless Steel Washers Flat, 100Pcs

M5 Flat Washer, 18-8 (304) Stainless Steel Washers Flat, 100Pcs

For 2020 extrusion screws

View On Amazon
12 Pieces Square Aluminum Flat Bar, 1/8" Thickness X 1.2" Width X 12" Length

12 Pieces Square Aluminum Flat Bar, 1/8" Thickness X 1.2" Width X 12" Length

Aluminum flat bar is made of aluminum 6061 which has a excellent corrosion resistance performance,lightweight and sturdy.

View On Amazon
Standard Slide-In T-Nut 1/4-20 Thread (25 Pack)

Standard Slide-In T-Nut 1/4-20 Thread (25 Pack)

For 80/20 extrusion

View On Amazon
Transit Van Low Pro Roof Rack | 148" High Rook Extended

Transit Van Low Pro Roof Rack | 148" High Rook Extended

The 148” High Roof Extended Low Pro Ford Transit Roof Rack is aerodynamic, completely adjustable, and easy to install. If you are looking for a premium quality roof rack at an affordable price - you’ve found it!

View Product
Sealproof 1-Gang 3 1/2-Inch Holes Weatherproof Rectangular Exterior Electrical Outlet Box

Sealproof 1-Gang 3 1/2-Inch Holes Weatherproof Rectangular Exterior Electrical Outlet Box

View On Amazon
Sigma Engineered Solutions, Gray 14240 1-Gang Rectangular Stamped Weatherproof Cover

Sigma Engineered Solutions, Gray 14240 1-Gang Rectangular Stamped Weatherproof Cover

View On Amazon
Makerele Cord Grip Cable Glands Kit For Electrical Box Npt Waterproof Nylon Strain Relief 1/4” 3/8” 1/2” 3/4” 1” 1-1/4” 50Pcs Junction Case Connector Black With Gaskets

Makerele Cord Grip Cable Glands Kit For Electrical Box Npt Waterproof Nylon Strain Relief 1/4” 3/8” 1/2” 3/4” 1” 1-1/4” 50Pcs Junction Case Connector Black With Gaskets

View On Amazon
Ticonn 150 Pcs Solder Seal Wire Connectors, Heat Shrink Butt Connectors, Waterproof And Insulated Electrical Wire Terminals, Butt Splice (150Pcs)

Ticonn 150 Pcs Solder Seal Wire Connectors, Heat Shrink Butt Connectors, Waterproof And Insulated Electrical Wire Terminals, Butt Splice (150Pcs)

View On Amazon
Gs Power 12 Gauge Stranded Flexible Copper Clad Aluminum Cca Primary Automotive Wire

Gs Power 12 Gauge Stranded Flexible Copper Clad Aluminum Cca Primary Automotive Wire

View On Amazon

Tools Used

Dewalt DCD794B 20V MAX Atomic Compact Series Brushless Lithium-Ion 1/2 In. Cordless Drill Driver

Dewalt DCD794B 20V MAX Atomic Compact Series Brushless Lithium-Ion 1/2 In. Cordless Drill Driver

Our shortest 20V MAX Drill Driver at 5.88 in. (tool head length only) to access hard to reach areas

View On Amazon
Dewalt Titanium Nitride Coated Drill Bit Set, Pilot Point, 21-Piece

Dewalt Titanium Nitride Coated Drill Bit Set, Pilot Point, 21-Piece

DEWALT drill bit set has connectable accessory storage system to optimize storage space

View On Amazon
Dewalt 12-Inch Miter Saw, 15-Amp, Single Bevel, Compound (DWS715)

Dewalt 12-Inch Miter Saw, 15-Amp, Single Bevel, Compound (DWS715)

Stainless-steel miter detent plate of 12-inch miter saw blade comes with 14 positive stops

View On Amazon
Dewalt Miter Saw Stand, Heavy Duty With Miter Saw Mounting Brakets (DWX725B)

Dewalt Miter Saw Stand, Heavy Duty With Miter Saw Mounting Brakets (DWX725B)

Compact design of DEWALT miter saw stand allows easy transport and storage

View On Amazon
Comoware Circular Miter Saw Blade - 12-Inch 100 Tooth Tcg Metal Saw Blade

Comoware Circular Miter Saw Blade - 12-Inch 100 Tooth Tcg Metal Saw Blade

UNIQUE DESIGN: Silencer groove, reduce vibration and noise, Smooth Cutting, High Hardness Carbide Tip, provide a longer service life. TCG Design，Triple Chip Grind includes a 15-degree hook angle.

View On Amazon
Dewalt 20V MAX Cordless Impact Driver Kit, Brushless, 1/4" Hex Chuck, 2 Batteries And Charger (DCF787C2)

Dewalt 20V MAX Cordless Impact Driver Kit, Brushless, 1/4" Hex Chuck, 2 Batteries And Charger (DCF787C2)

Brushless motor for efficient performance and runtime

View On Amazon
Neiko 10048A Security Bit Set 100-Piece Set

Neiko 10048A Security Bit Set 100-Piece Set

These bits are made of a high-quality chrome vanadium steel for strong hardness that can withstand more torque, reduce wear-outs, ensure longevity, and durability!

View On Amazon
Dewalt DWHT70263M Ergonomic Push Button Locking Folding Metric Hex Key Set

Dewalt DWHT70263M Ergonomic Push Button Locking Folding Metric Hex Key Set

Push-button locking feature locks in three positions at 90°, 135°, and 180°

View On Amazon

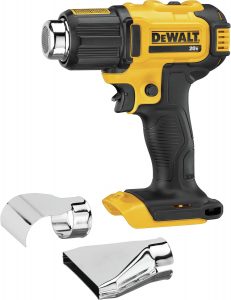

Dewalt 20V MAX Heat Gun, Cordless, Up To 990 Degrees, 42 Minutes Of Run Time, LED Light, Bare Tool Only (DCE530B)

Dewalt 20V MAX Heat Gun, Cordless, Up To 990 Degrees, 42 Minutes Of Run Time, LED Light, Bare Tool Only (DCE530B)

View On Amazon

Notes

  • Sliced my fingers open several times. Big cut when running finger along metal mounts on solar panels. Bled all over everything and didn't care.
  • Beautiful sunset and clouds around 6 to 7pm.

Pictures

phoenix, arizona sunset in the desert with cactus and clouds
phoenix, arizona sunset in the desert with cactus and clouds

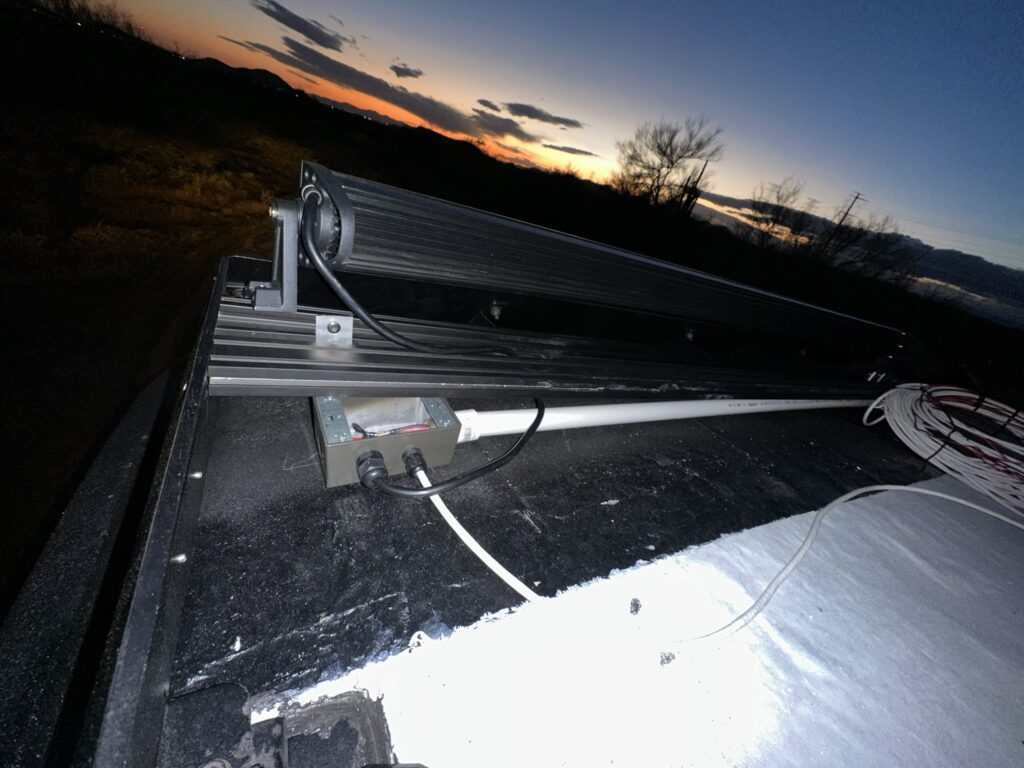

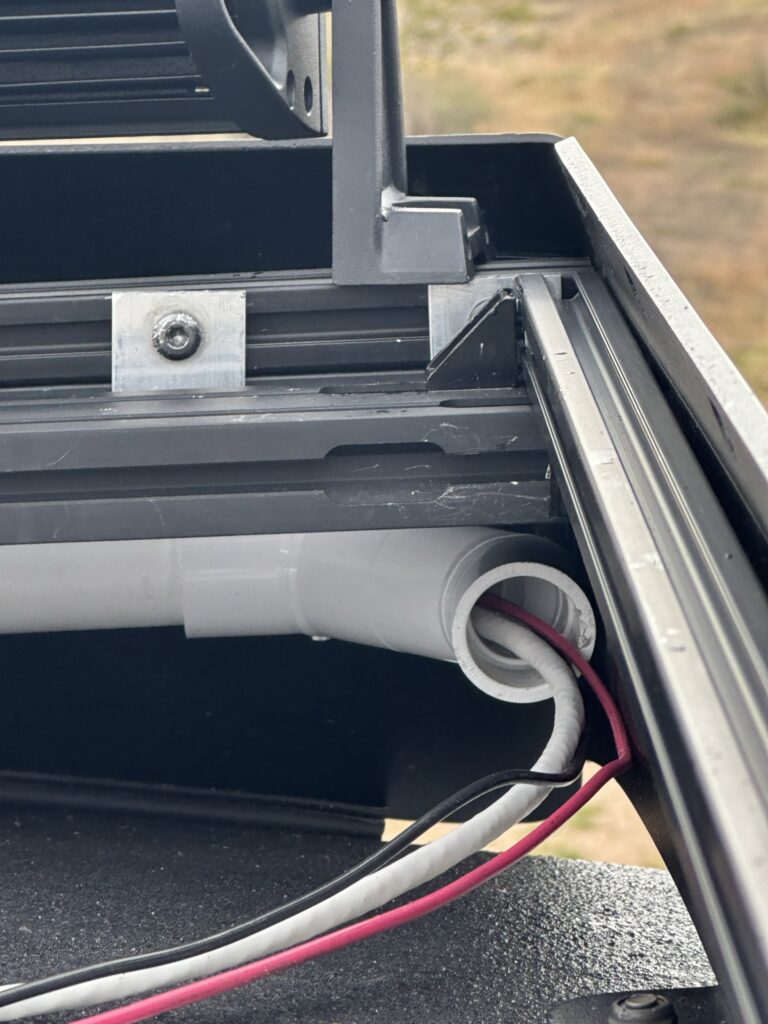

camper van roof electrical wires and conduit
camper van roof electrical wires and conduit
camper van roof electrical wires and conduit
camper van roof electrical wires and conduit

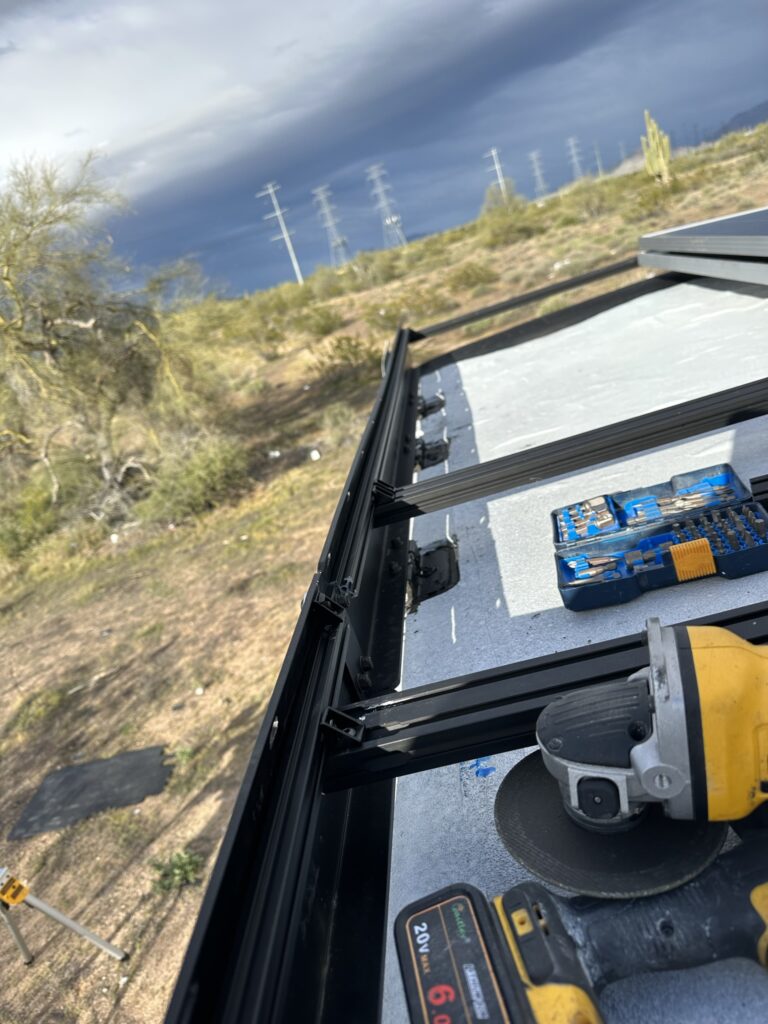

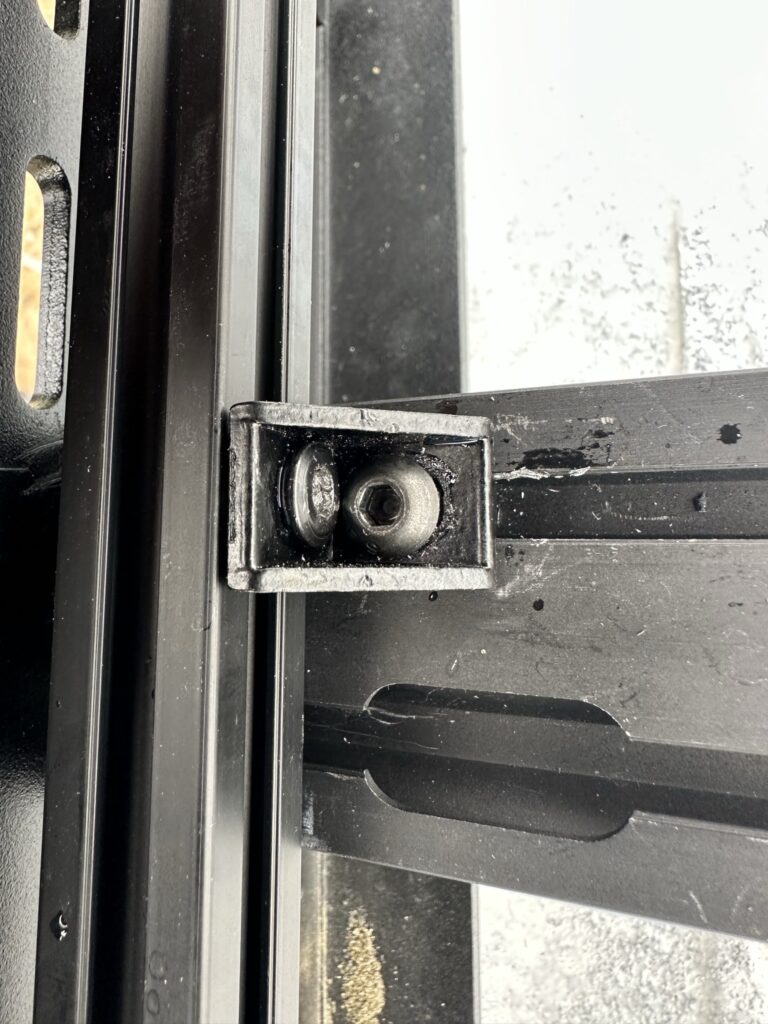

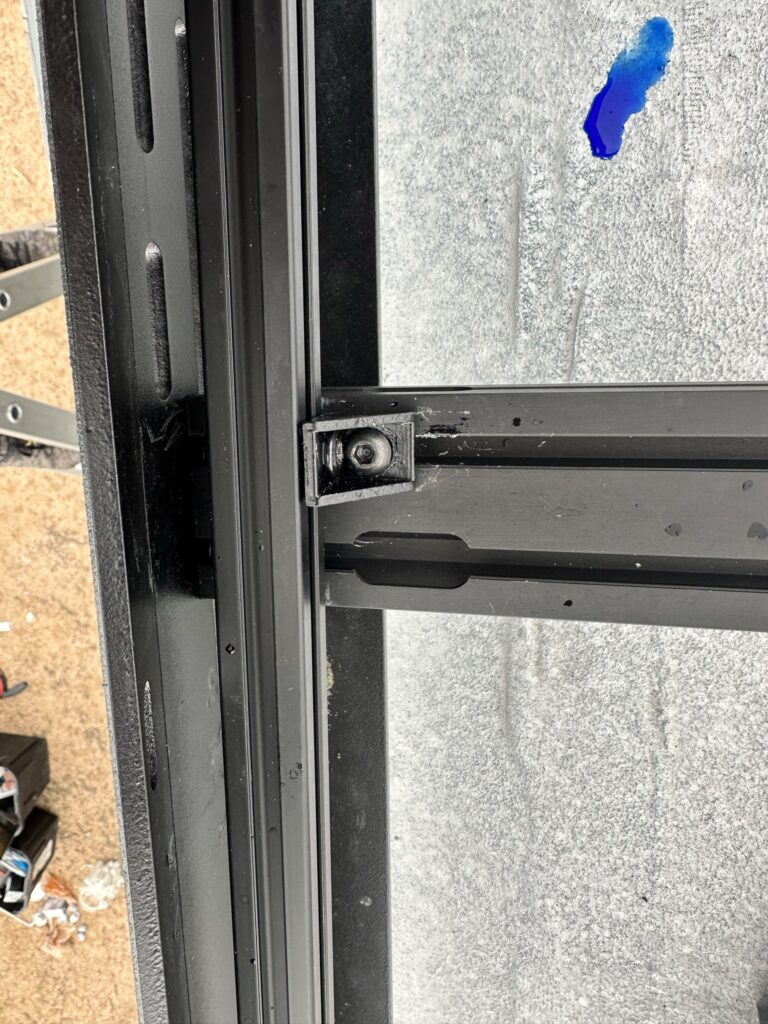

2020 aluminum extrusion on camper van roof
2020 aluminum extrusion on camper van roof
2020 aluminum extrusion on camper van roof
2020 aluminum extrusion on camper van roof
Day 95: Electrical Wiring and Devices on Roof - Day 1 — reference image
2020 aluminum extrusion on camper van roof
Day 95: Electrical Wiring and Devices on Roof - Day 1 — reference image
2020 aluminum extrusion on camper van roof

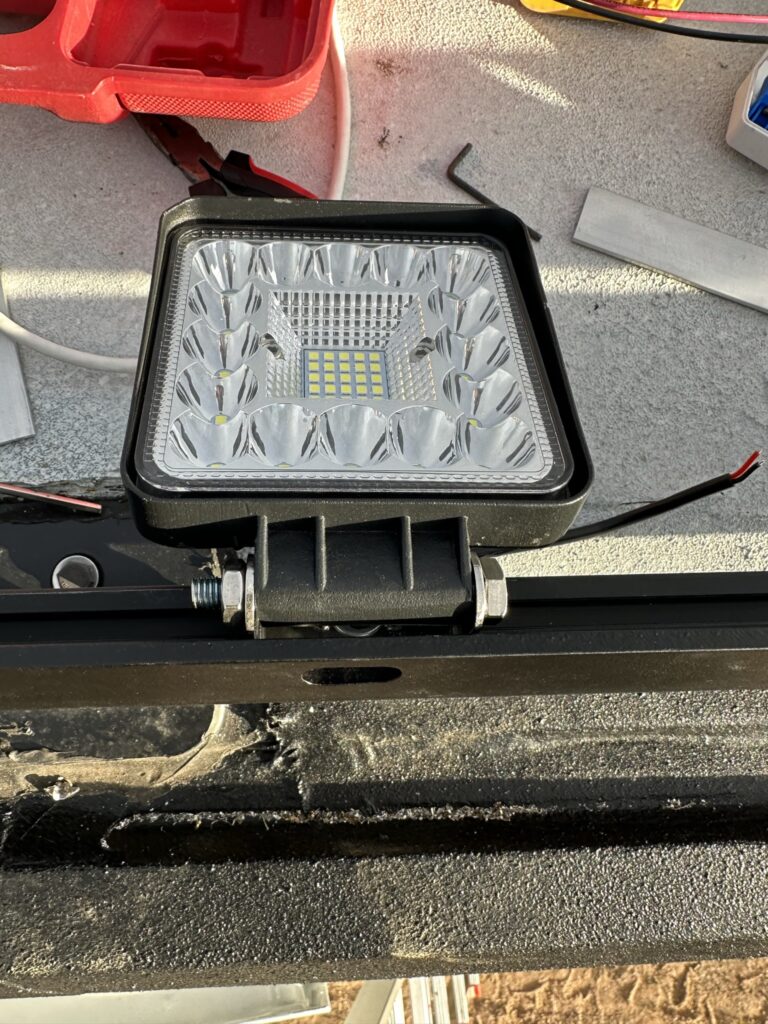

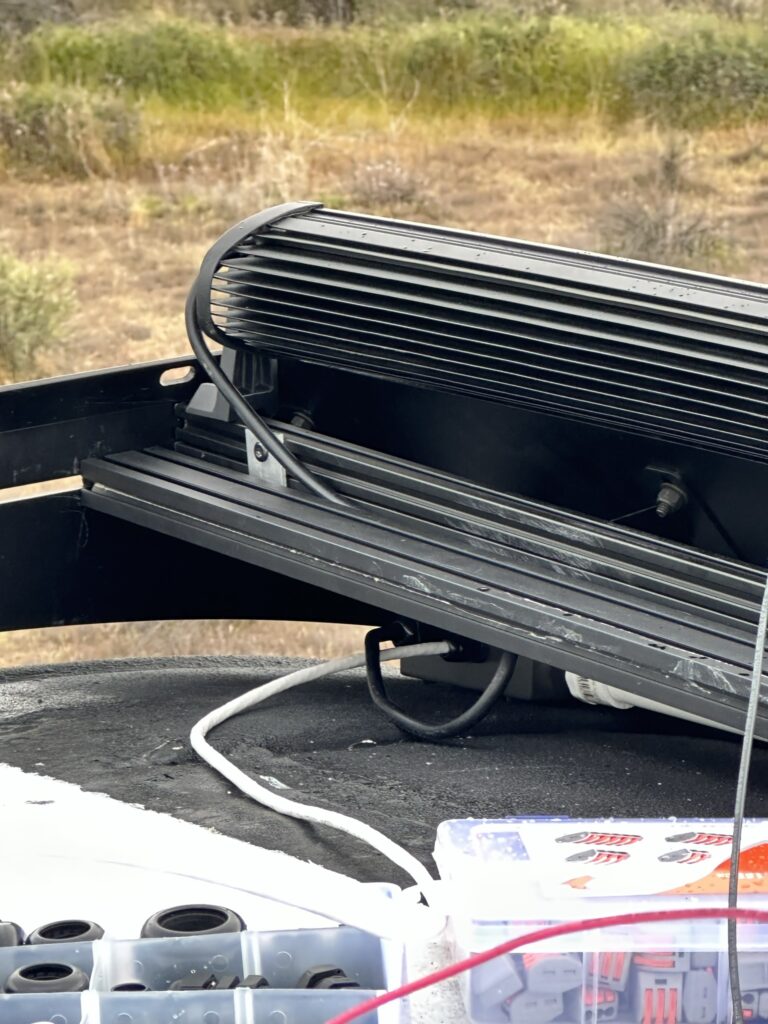

led light on top of camper van
led light on top of camper van

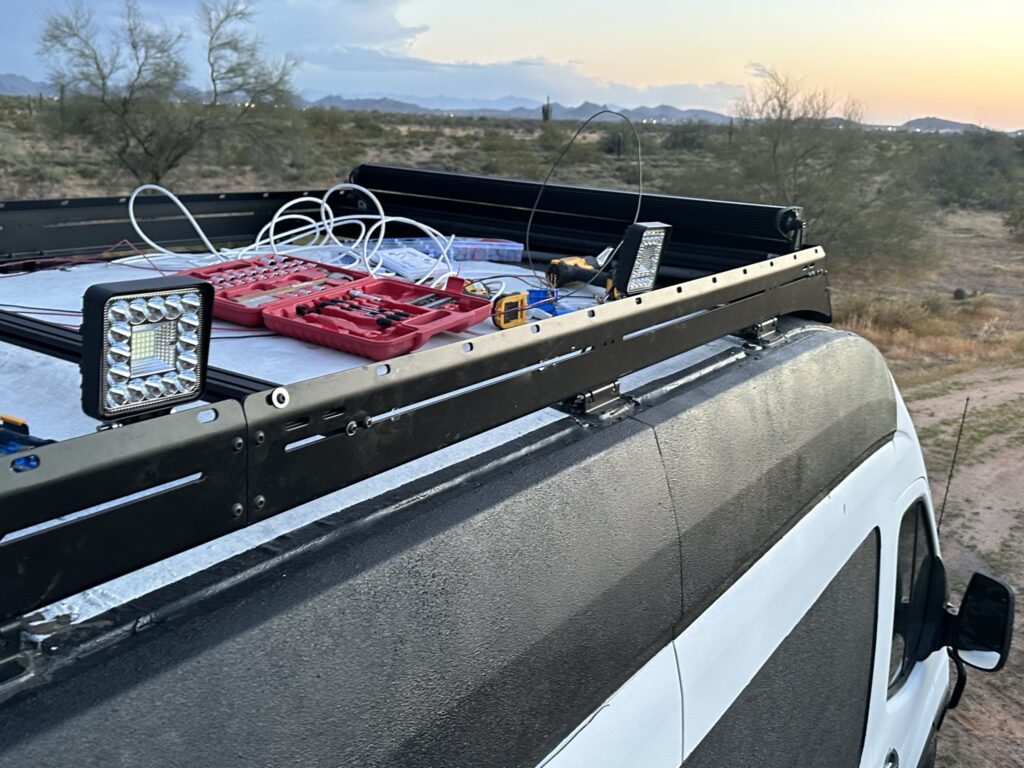

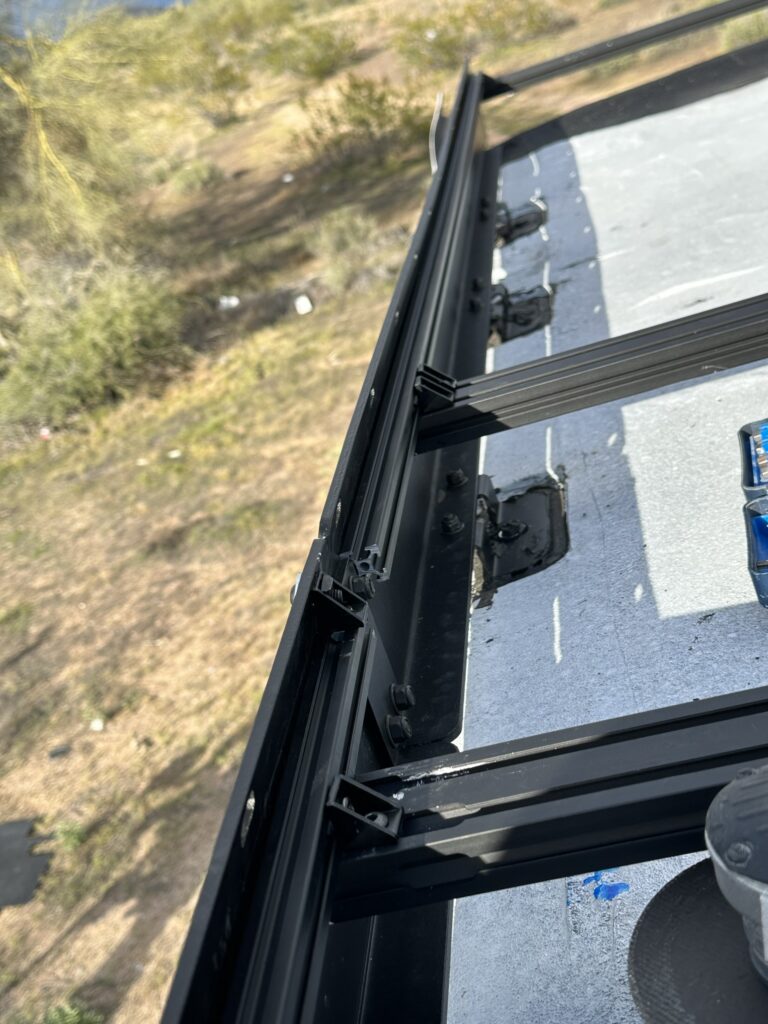

camper van roof electrical wiring and roof rack
camper van roof electrical wiring and roof rack

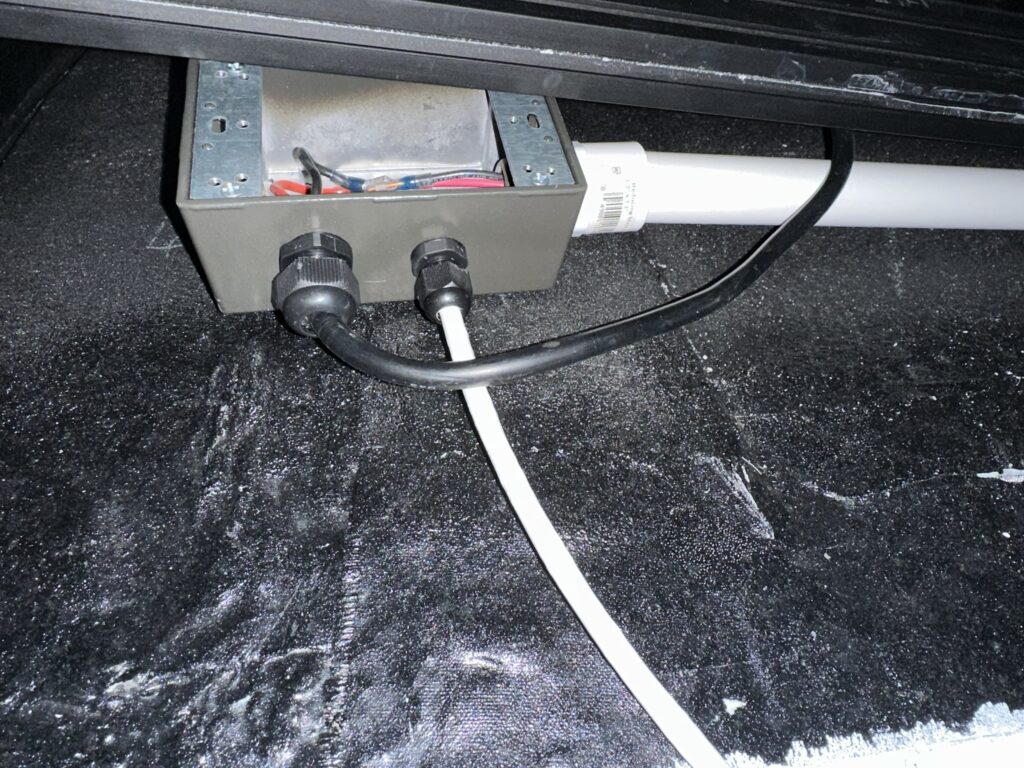

camper van roof electrical wiring and junction box and wire glands
