Running Wires From Front Of Van Into Cargo Area On Ford Transit

Originally published 2024-03-09 · Recovered question

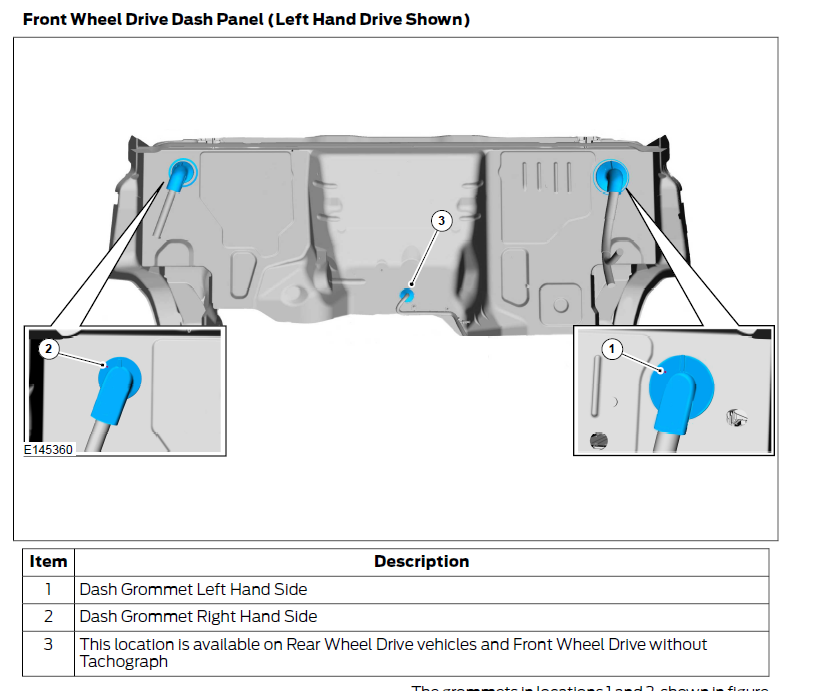

  1. Go through Dash Grommet on the left hand side
  2. Go up the A Pillar on the Passenger Side
  3. Go into the Headliner
  4. Go into the Body Cavity Above the Windows
  5. Run Wire Behind 2020 Framing to Garage
Running Wires From Front of Van Into Cargo Area on Ford Transit — reference image

Open the linked resource

A-Pillar-Trim-Panel-Removal-and-Installation-501-05-Interior-Trim-and-OrnamentationDownload

Open the linked resource

Front-Headliner-Removal-and-Installation-501-05-Interior-Trim-and-OrnamentationDownload
