I bought the Minidodoca kit with the van's small electronics. My roof-wiring diary provides the project context for arranging device leads and bringing them into the van.

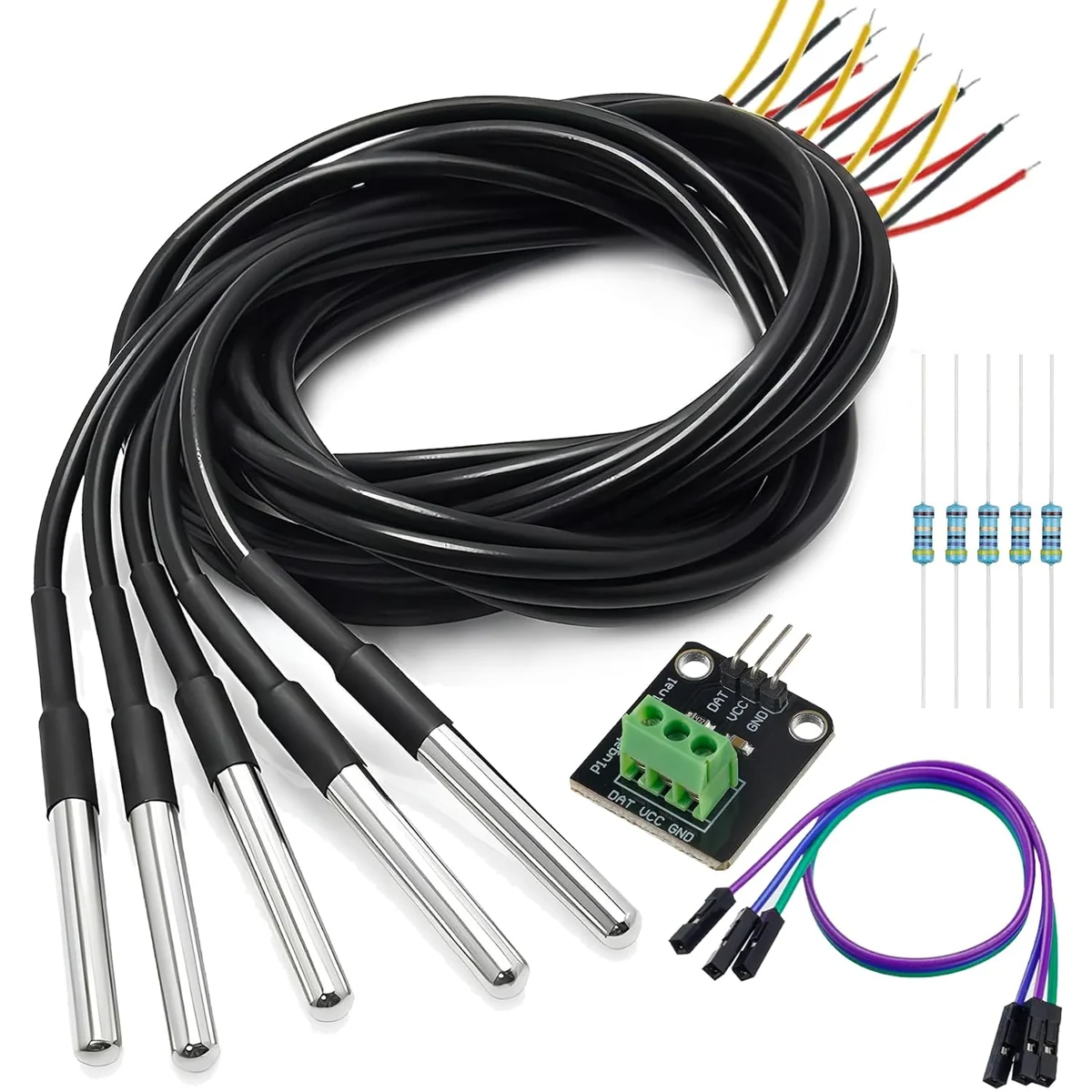

I bought Minidodoca DS18B20 Temperature-Sensor Kit as part of my camper van equipment.
I bought the Minidodoca kit with the van's small electronics. My roof-wiring diary provides the project context for arranging device leads and bringing them into the van.
A Sensing Point Within the Electronics Plan
I pulled the roof cables through the PVC route with fish tape.
I fitted plastic trim around the roof opening where the wires entered the van.
I completed the remaining light connections, covered the boxes and joined the final conduit sections.
The roof at the end of my Roof Wiring and Devices Project Day 8 wiring session.The trimmed roof opening where my cable groups enter the van.
My Takeaway for the Build
Routing the roof wiring showed how the device location and the controller connection can be separate parts of the layout. The Minidodoca purchase has a cabled temperature probe and connection module. Comparing probe-only packs with probe-and-adapter sets makes the contents clearer before planning the controller end of the project.
Product Details And Van-Build Uses
Specification
Product Detail
Sensor Family
DS18B20
Interface
1-Wire digital thermometer
Kit Format
Cabled probe with connection module
The probe places the sensing point away from the controller connection. The Analog Devices data sheet describes the DS18B20 component, while the purchased probe and module form a separate physical assembly around it. For a van monitoring project, label the sensing location and record where the cable reaches the controller. Keep the module connection information with that route. This makes the probe easier to identify later when several small sensor leads share the same equipment area.
Does The Component Sheet Describe The Entire Probe Kit?
It describes the DS18B20 thermometer component. The probe enclosure, cable and connection module belong to the purchased kit.
Alternative products
Two Alternatives to Compare

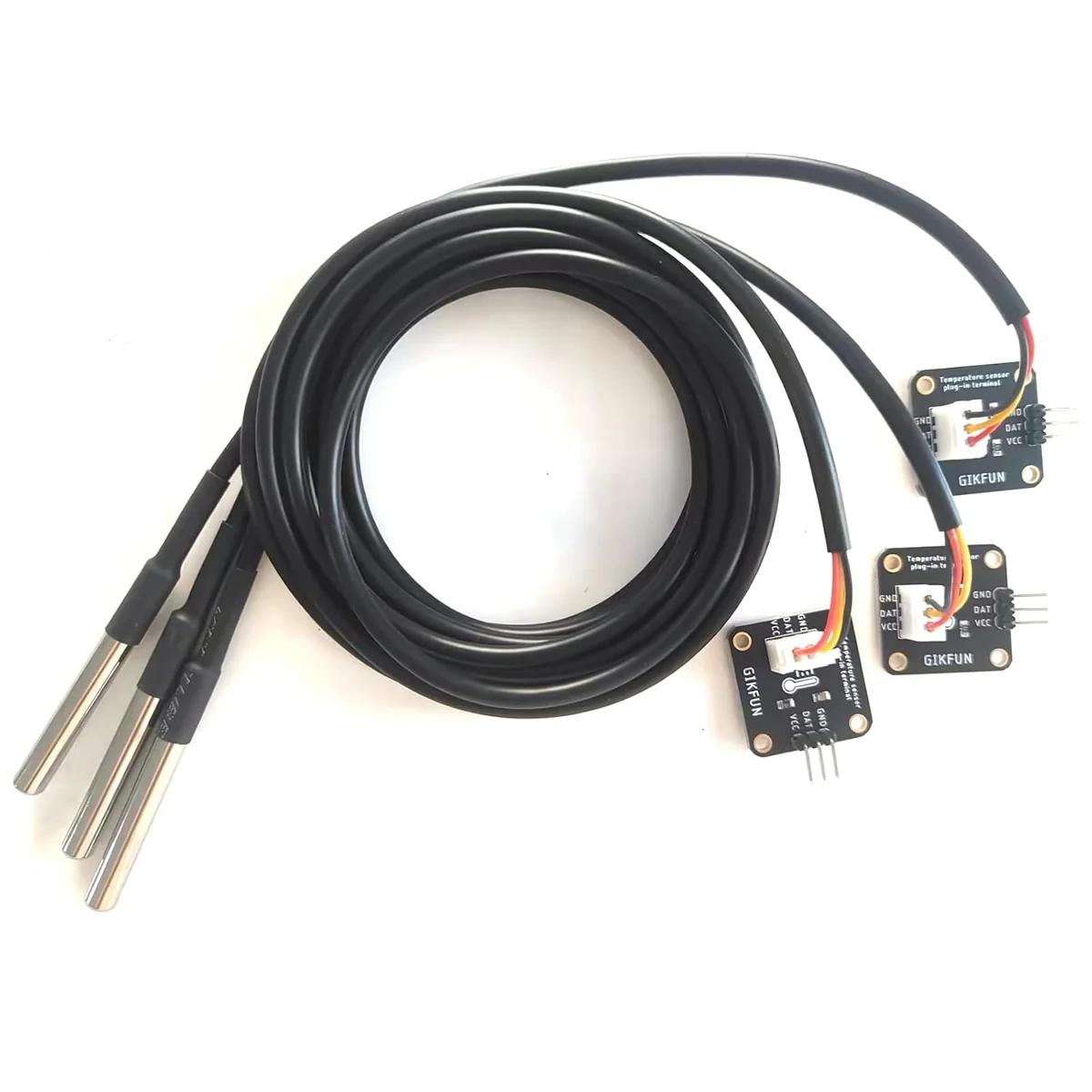

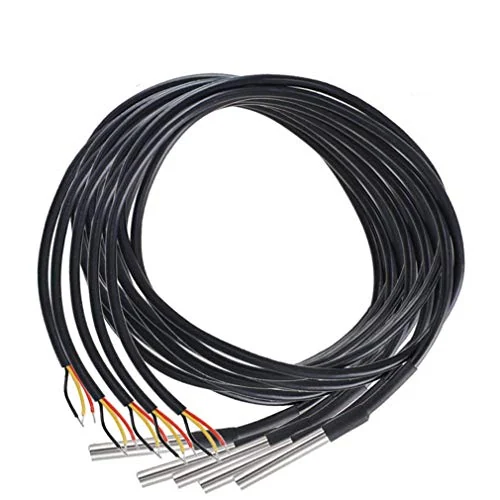

HiLetgo supplies a pack of cabled probes. Gikfun combines probes with adapter modules, making the included connection hardware a useful distinction between the two alternatives.
These sets combine cabled temperature probes with connection modules. The modules provide a terminal interface between the probe leads and a controller project.
