The RED WOLF breaker is recorded separately from the replaceable fuses in my electrical purchases. That keeps the resettable component identifiable in a kit containing several forms of circuit hardware.
I bought RED WOLF 100A Manual-Reset Breaker as part of my camper van equipment.
The RED WOLF breaker is recorded separately from the replaceable fuses in my electrical purchases. That keeps the resettable component identifiable in a kit containing several forms of circuit hardware.
Comparing the Breaker Body and Mounting Arrangement
My electrical purchases included resettable breakers as well as replaceable fuses.
I recorded those component types as separate entries.

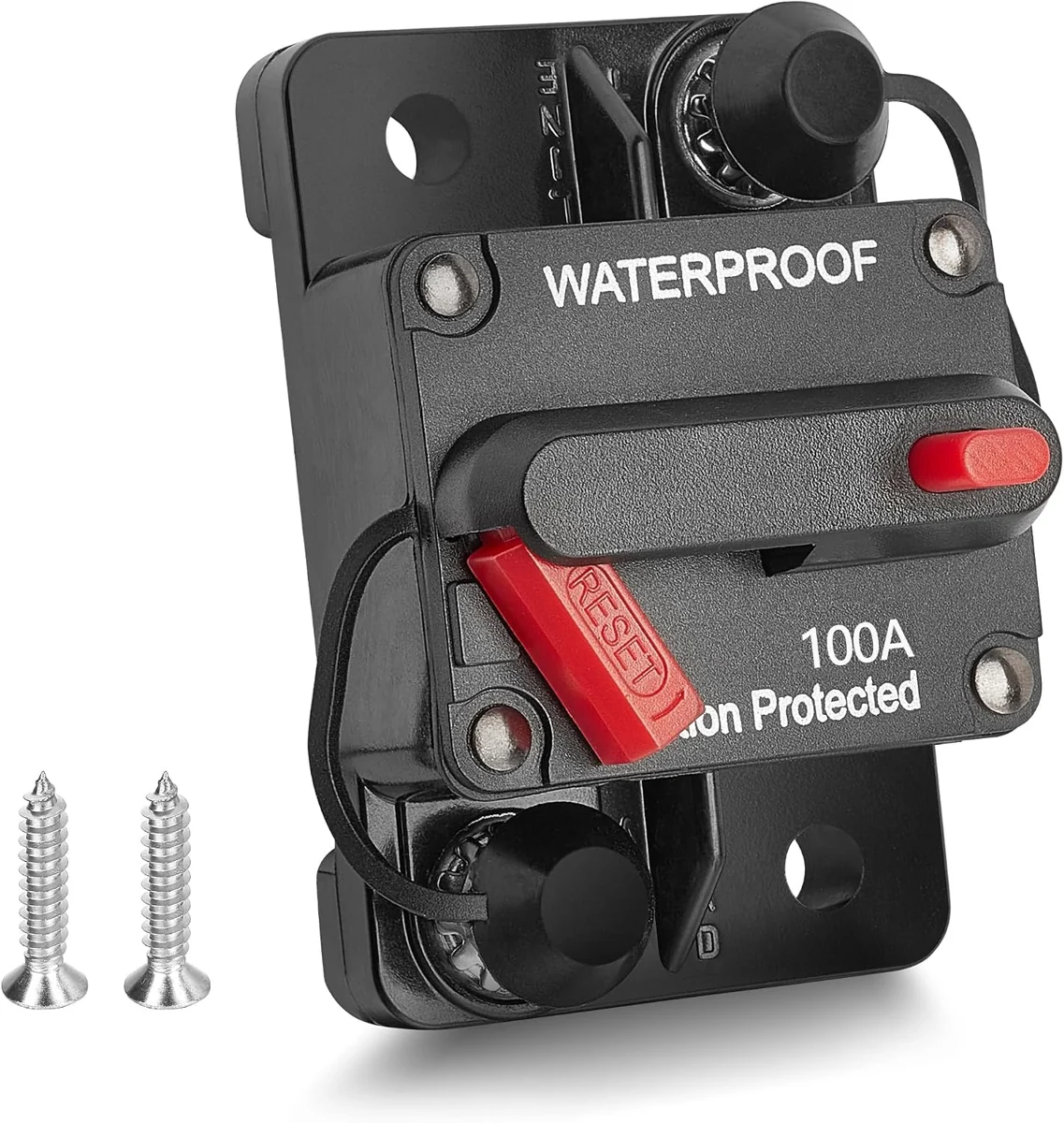

This RED WOLF purchase supplied a one-hundred-amp manual-reset body with two bolted terminals.
A grouped roof-wire connection before the final conduit work.The larger roof enclosure during my cable-entry work.
My Takeaway from This Job
The marked rating remains one hundred amps across these comparisons. Blue Sea changes to a panel-mounted body with rear studs, while T Tocas uses a surface-mounted arrangement; the control and mounting layout are distinct from the rating.
The same marked breaker rating can come in different mounting bodies.
Product Details And Van-Build Uses
Specification
Product Detail
Current Marking
100 A
Controls
Manual reset and switching
Connections
Two bolted cable terminals
The face controls and the two cable terminals need different kinds of access. Position the breaker in the drawing so the control can be reached without disturbing the cable route. Allow the actual lug bodies and cable bends to occupy space around the terminal positions. For a van equipment board, keep the exact breaker reference with the circuit drawing and cable identification, rather than relying on the current number alone to describe every part of the assembly.
Include the control face, both cable lugs and the cable bends at the terminals.
Alternative products
Two Alternatives to Compare

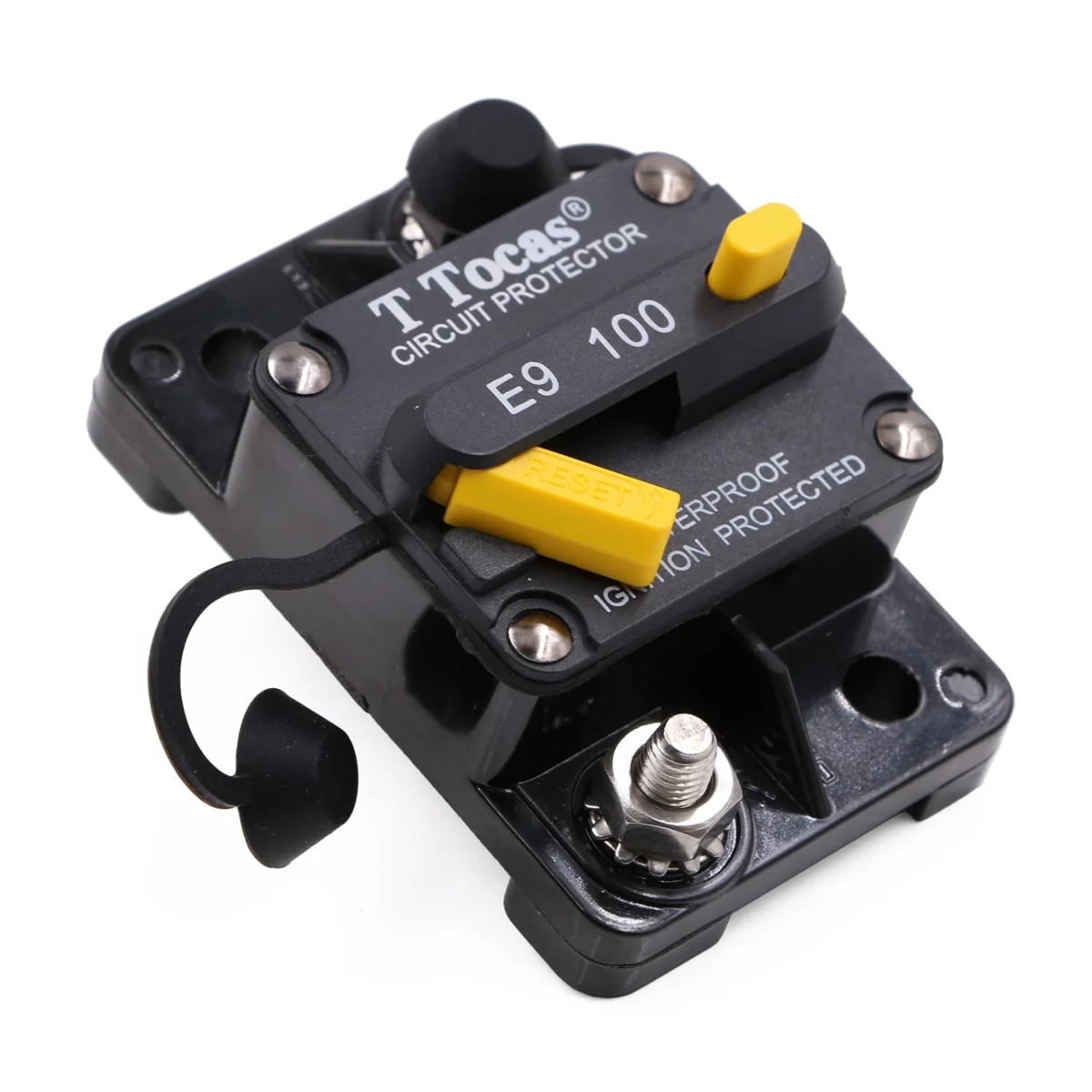

The Blue Sea 7044 uses a panel-mount arrangement, while the T Tocas alternative uses a surface-mount body; both listings identify a 100-amp manual-reset breaker.
Product
What distinguishes it
Purchase link
RED WOLF 100A Manual-Reset Breaker
Manual-reset body with front controls and bolted terminals
