Square D Homeline 50-Amp Breaker

The two-pole breaker appears among my electrical purchases, where the overall enclosure and circuit arrangement were separate parts of the planning work.

By · Camper Van Freedom

Read my build notes ↓

The Item in My Kit

I bought Square D Homeline 50-Amp Breaker as part of my camper van equipment.

The two-pole breaker appears among my electrical purchases, where the overall enclosure and circuit arrangement were separate parts of the planning work.

Breaker Family and Mounting Arrangement

  1. I used SketchUp to plan the interior and put body openings ahead of the framing, floor and wall panels.
  2. My Interior Preparation notes included the shower drain and openings for three water tanks in that preparation sequence.
  3. I removed cargo tie-down hardware for later framing mounts and door trim for the later insulation and paneling.
The cargo floor during my preparation session before sound deadening.
The cargo floor during my preparation session before sound deadening.
Removing stuck-on residue during the floor cleanup.
Removing stuck-on residue during the floor cleanup.

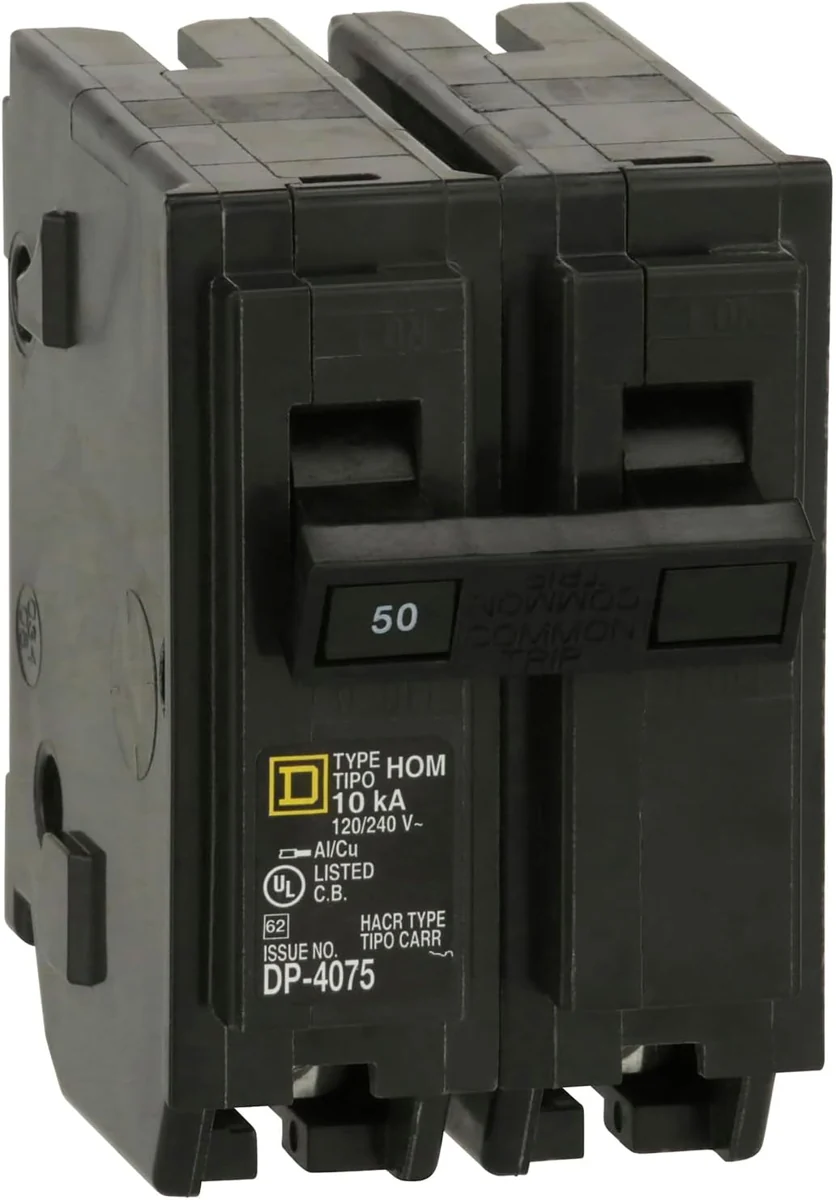

Square D Homeline 50-Amp Breaker

My Takeaway for the Build

Planning the interior before enclosure helped separate equipment choices from the surrounding cabinetry. The Homeline breaker purchase uses a fifty-amp two-pole plug-in body. Siemens changes to Type QP, while Chtaixi uses a DIN rail; those mounting systems define different assemblies despite the shared nominal current rating.

Product Details And Van-Build Uses

SpecificationProduct Detail
Reference ModelHOM250
Current Rating50A
Poles2
Manufacturer Voltage Rating120/240V AC

HOM250 identifies the two-pole 50A model in the Homeline breaker range. The pole count distinguishes its physical and electrical arrangement from the single-pole 15A component elsewhere in my equipment list. Schneider lists a plug-in connection intended for Homeline load centers. For a van AC layout, recording the exact model keeps the panel plan understandable when comparing breaker positions, enclosure space and the circuit schedule. A breaker’s printed current rating also serves a different purpose from a load center’s overall rating. The linked manufacturer reference and catalog describe the component family without changing my original purchase history or existing product options.

Manufacturer Product Reference

Download Square D Load Centers And Breaker Catalog (PDF)

How Is This Different From The 15A Homeline Item?

HOM250 is a two-pole 50A model. The HOM115 reference is single-pole and rated 15A.

Alternative products

Two Alternatives to Compare

The Siemens Q250 is a Type QP plug-in breaker. The Chtaixi option uses DIN-rail mounting, so the enclosure and mounting systems differ between these alternatives.

ProductWhat distinguishes itPurchase link
Square D Homeline 50-Amp BreakerFifty-amp two-pole Homeline plug-in breaker.View on Amazon
Siemens Q250 Two-Pole Breaker (alternative)Fifty-amp two-pole Siemens Type QP breaker.View on Amazon
Chtaixi 50A Two-Pole AC Breaker (alternative)Fifty-amp two-pole AC breaker with DIN-rail mounting.View on Amazon

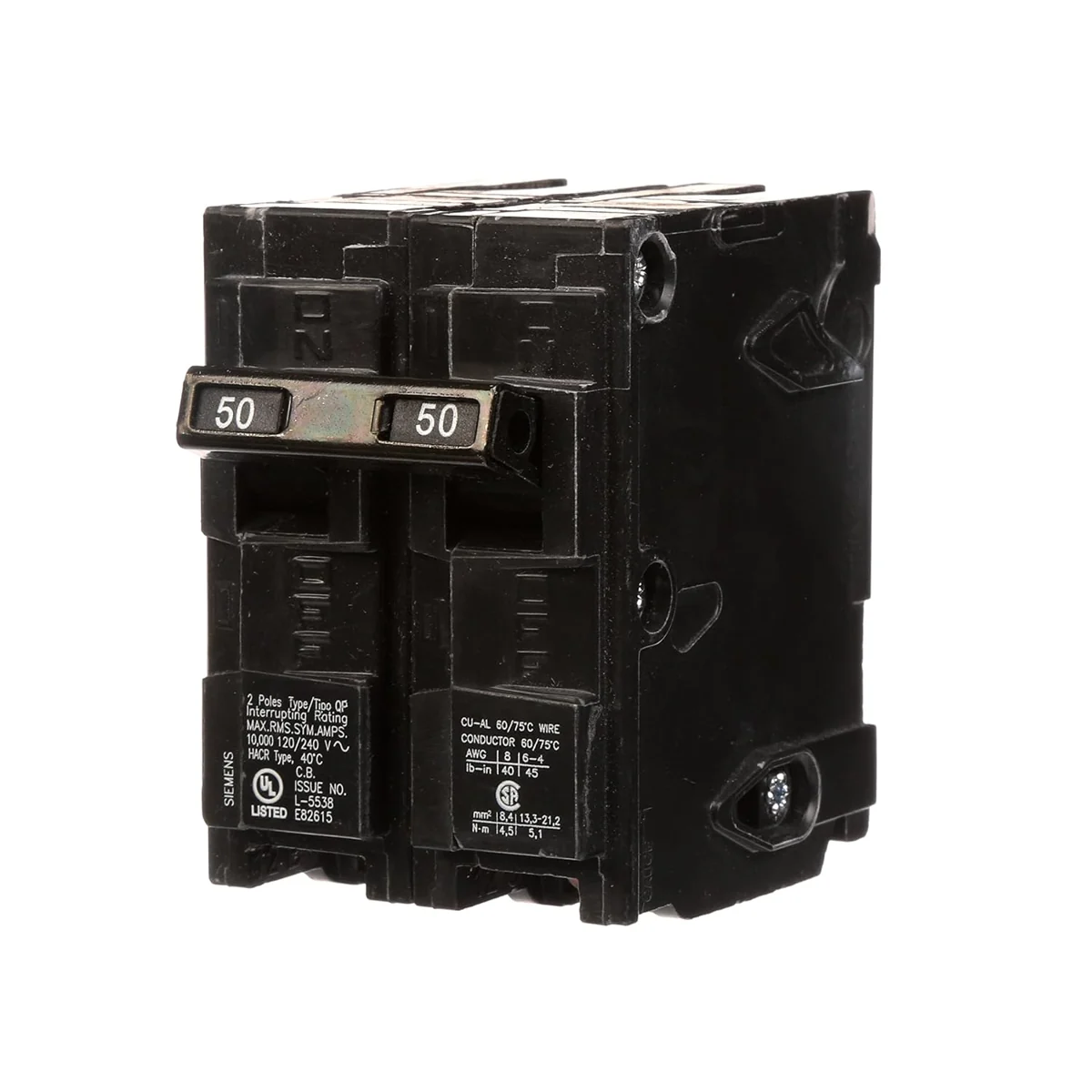

Siemens Q250 Two-Pole Breaker

Siemens Q250 Two-Pole Breaker

The Q250 is a fifty-amp two-pole circuit breaker. Its plug-in body uses Siemens' Type QP connection format.

View on Amazon
Chtaixi 50A Two-Pole AC Breaker

Chtaixi 50A Two-Pole AC Breaker

This two-pole AC circuit breaker mounts on a DIN rail and operates through a linked toggle. The purchased version is marked C50 and 120/240 volts AC.

View on Amazon
