Square D Homeline Six-Space Load Center

The load center belongs to my purchased electrical equipment, a layout task that sits alongside the early decisions about the van's interior space.

By · Camper Van Freedom

Read my build notes ↓

The Item in My Kit

I bought Square D Homeline Six-Space Load Center as part of my camper van equipment.

The load center belongs to my purchased electrical equipment, a layout task that sits alongside the early decisions about the van's interior space.

Enclosure Mounting in the Electrical Layout

  1. I used SketchUp to plan the interior and put body openings ahead of the framing, floor and wall panels.
  2. My Interior Preparation notes included the shower drain and openings for three water tanks in that preparation sequence.
  3. I removed cargo tie-down hardware for later framing mounts and door trim for the later insulation and paneling.
The cargo floor during my preparation session before sound deadening.
The cargo floor during my preparation session before sound deadening.
Removing stuck-on residue during the floor cleanup.
Removing stuck-on residue during the floor cleanup.

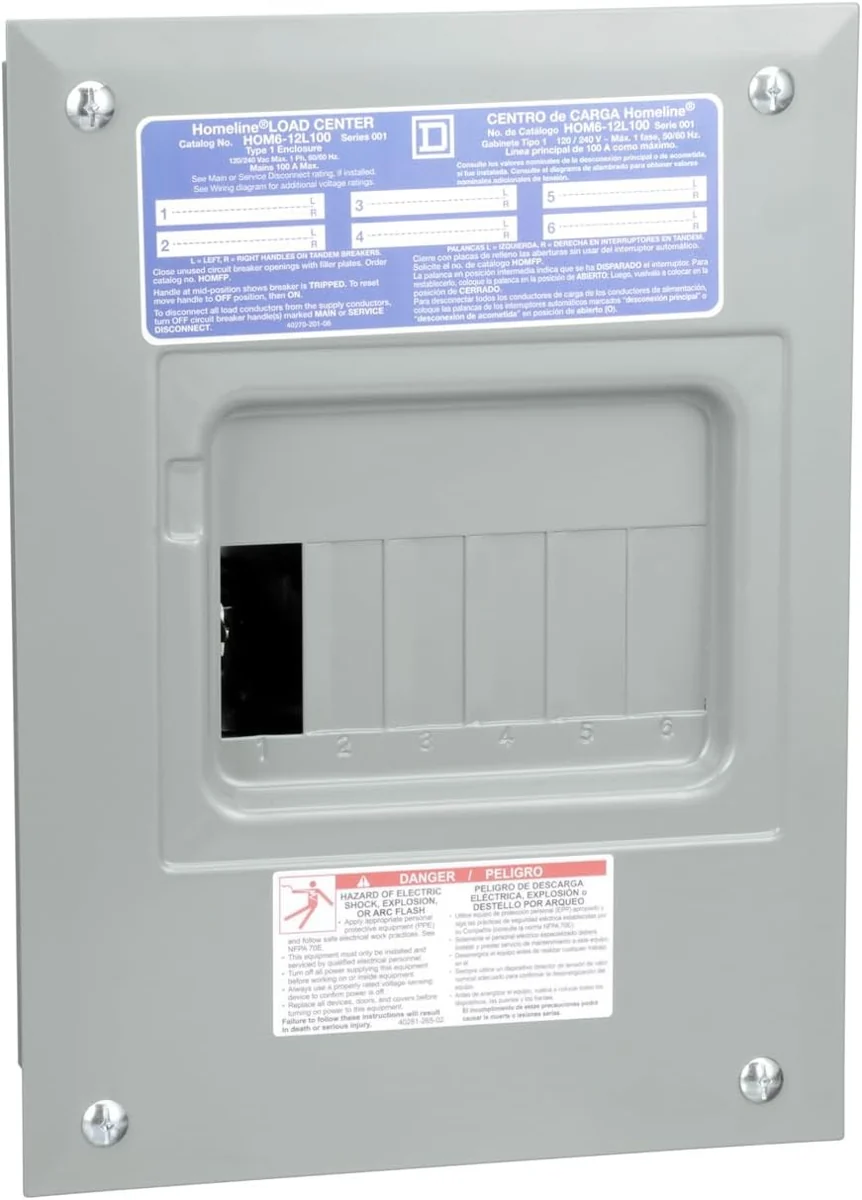

Square D Homeline Six-Space Load Center

My Takeaway for the Build

My interior preparation put body openings and mounting access ahead of the finished panels. This Homeline purchase uses a flush-cover load-center format. The other Homeline enclosure is surface-mounted, while Siemens changes both the panel family and space count, so the surrounding cabinet and breaker system are separate comparison details.

Product Details And Van-Build Uses

SpecificationProduct Detail
ModelHOM612L100FCP
Spaces / Circuits6 spaces / 12 circuits
Main Connection100A fixed main lugs
CoverFlush, indoor NEMA 1

The HOM612L100FCP is the flush-cover version of this six-space Homeline load center. The FCP suffix helps separate it from the similar surface-cover model. Schneider lists six spaces, a twelve-circuit designation and fixed main lugs. These describe the enclosure and its supported arrangement, rather than the details of an individual appliance circuit. For a camper-van cabinet plan, the cover format affects how the surrounding panel meets the enclosure and how the front remains accessible. Keeping the complete model number with the build notes makes it easier to locate the correct cover and documentation later.

Manufacturer Product Reference

Download Square D Load Center Catalog (PDF)

Is This The Surface-Cover Version?

No. HOM612L100FCP has a flush cover. The similar SCP model uses a surface cover.

Alternative products

Two Alternatives to Compare

The other Homeline enclosure uses a surface-mount cover. Siemens offers a four-space, eight-circuit enclosure from a different breaker family.

ProductWhat distinguishes itPurchase link
Square D Homeline Six-Space Load CenterSix-space Homeline main-lug enclosure with flush cover.View on Amazon
Square D Homeline Surface-Mount Load Center (alternative)Six-space Homeline enclosure with surface-mount cover.View on Amazon
Siemens Four-Space Load Center (alternative)Four-space Siemens enclosure in a surface-mount format.View on Amazon

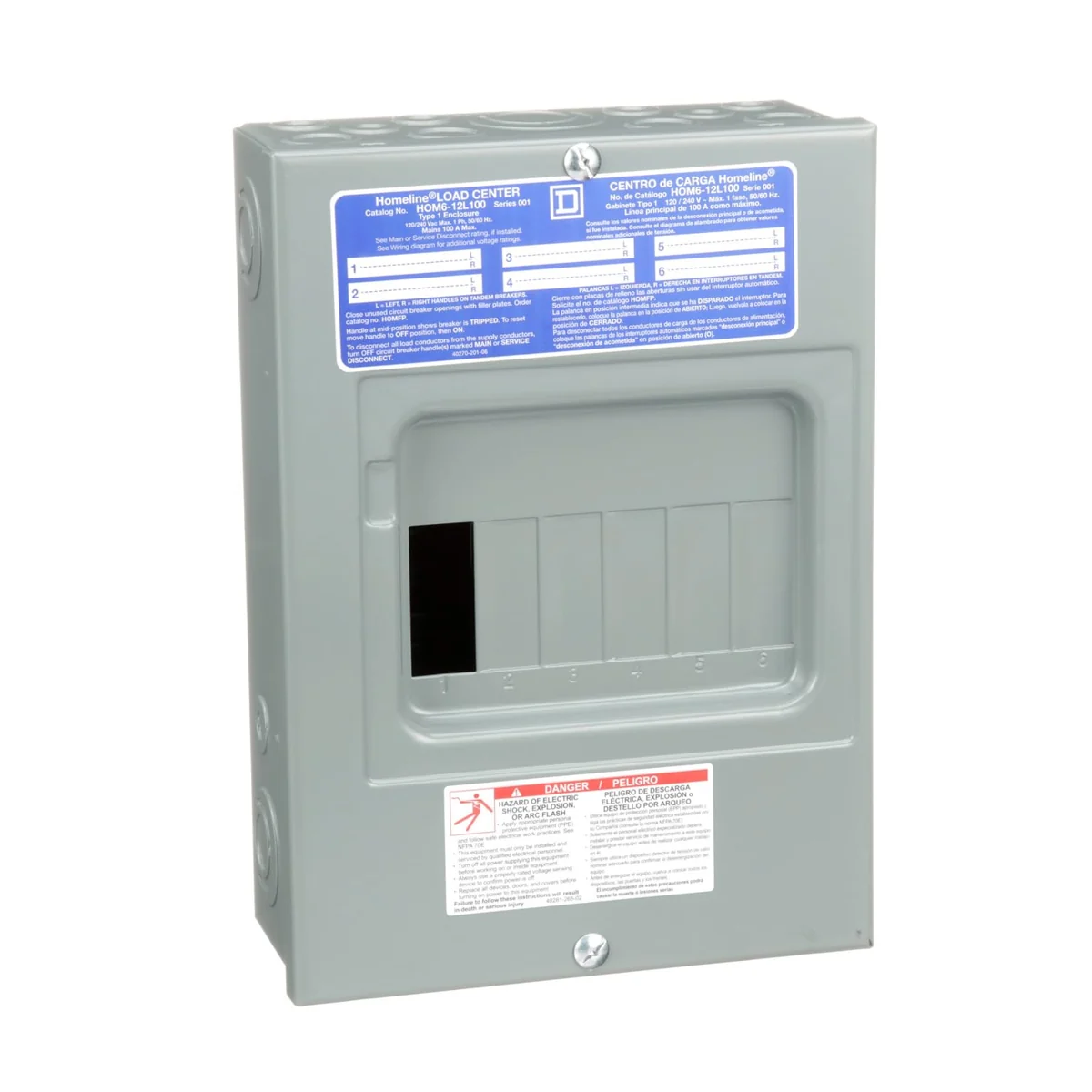

Square D Homeline Surface-Mount Load Center

Square D Homeline Surface-Mount Load Center

This indoor Homeline load center provides six spaces and a twelve-circuit designation. Its cover is arranged for a surface-mounted enclosure.

View on Amazon

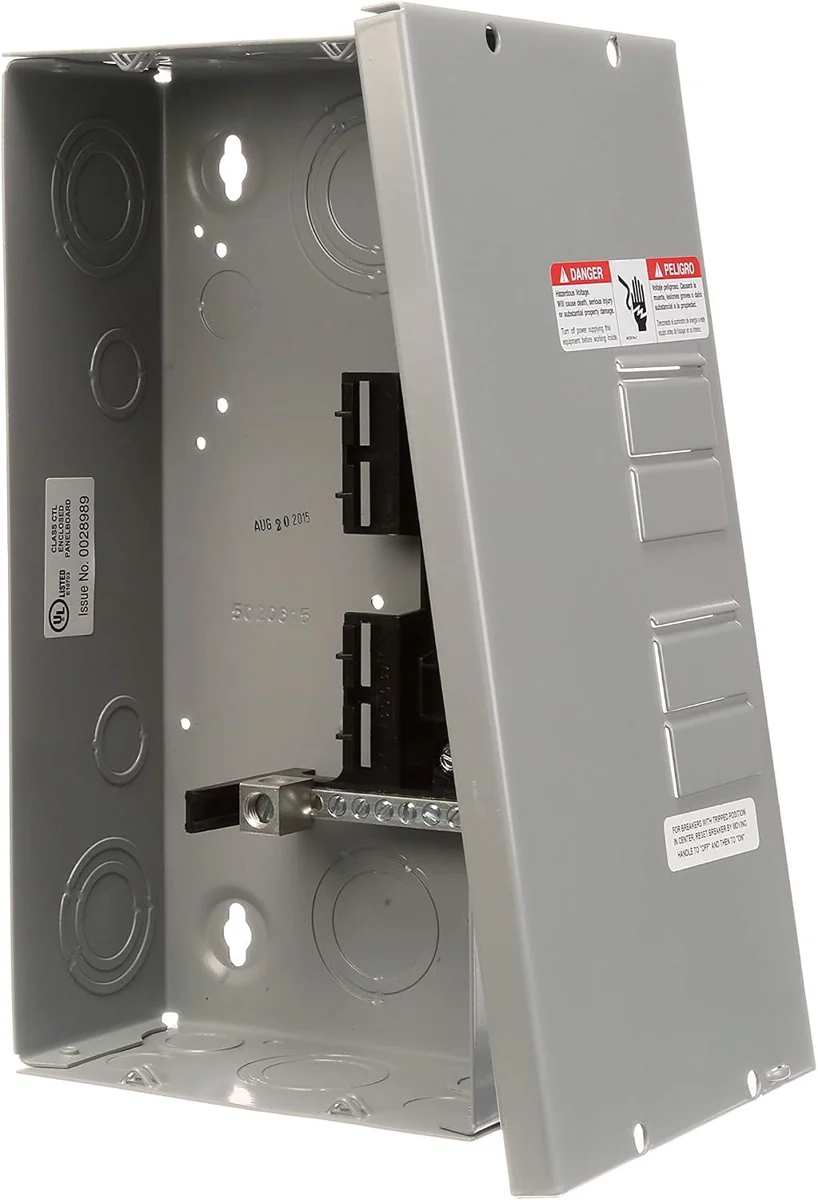

Siemens Four-Space Load Center

Siemens Four-Space Load Center

This Siemens main-lug enclosure provides four spaces and an eight-circuit designation. The indoor box uses a surface-mount format.

View on Amazon
