The Orion-Tr is another battery charger in my purchase catalog. The wiring photographs on this page show the actual cable-entry work that formed part of the van's wider electrical build.
I bought Victron Orion-Tr Smart 12/12-30 Charger as part of my camper van equipment.
The Orion-Tr is another battery charger in my purchase catalog. The wiring photographs on this page show the actual cable-entry work that formed part of the van's wider electrical build.
Comparing Charging-Current Class and Enclosure Format
I pulled the roof cables through the PVC route with fish tape.
I fitted plastic trim around the roof opening where the wires entered the van.
I completed the remaining light connections, covered the boxes and joined the final conduit sections.
The roof at the end of my Roof Wiring and Devices Project Day 8 wiring session.The trimmed roof opening where my cable groups enter the van.
My Takeaway from This Job
The roof-entry photographs show the physical wiring work that preceded the wider equipment layout. These separate charger purchases identify an isolated thirty-amp Orion-Tr, a fifty-amp Orion XS and a sixty-amp Renogy model, with different housings and connection arrangements.
Product Details And Van-Build Uses
Specification
Product Detail
Model
12/12-30 isolated
Input And Output Class
12 V to 12 V
Rated Output
30 A / 360 W
Configuration
Bluetooth with VictronConnect

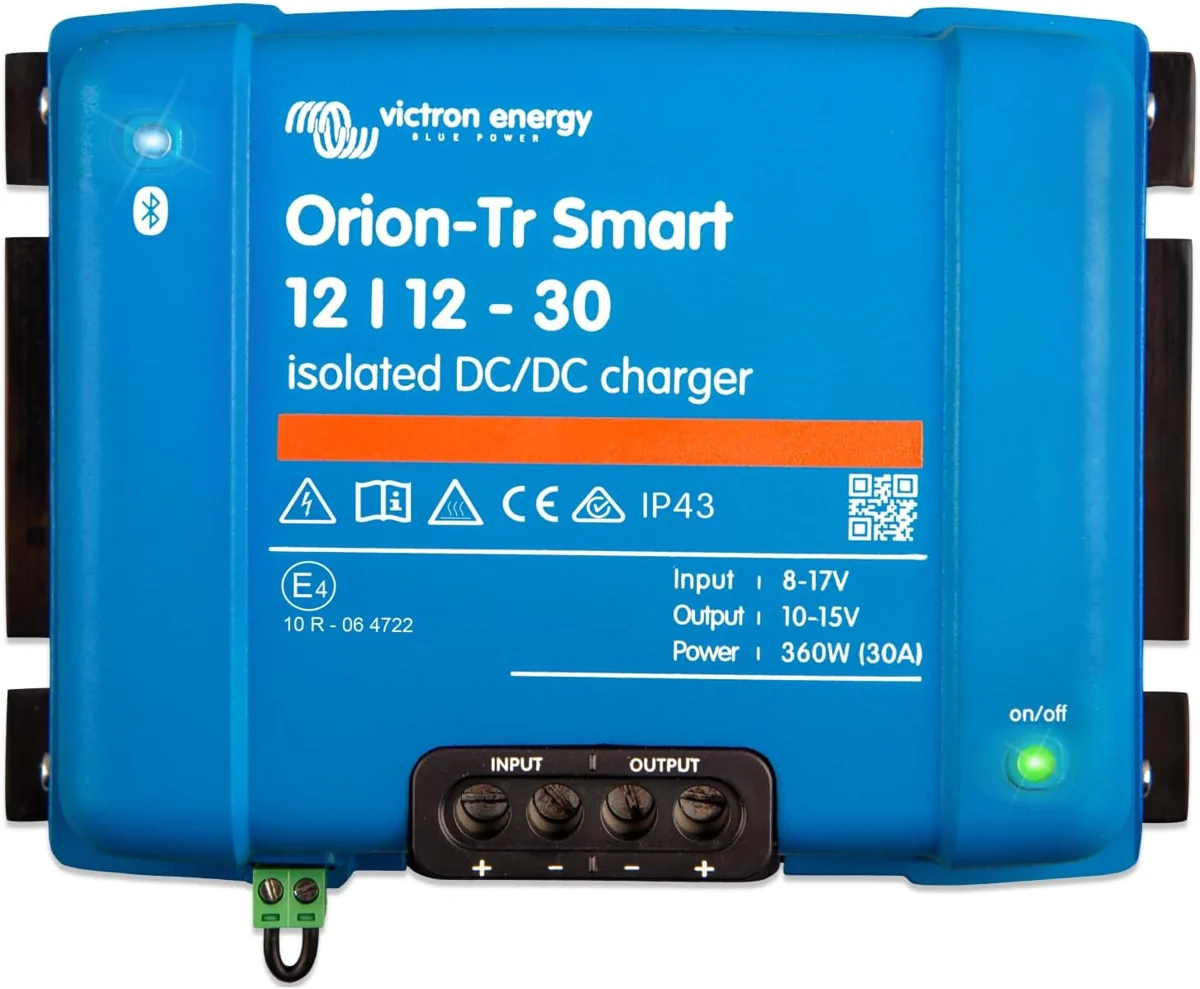

This Orion-Tr Smart is the isolated DC-DC charger in my purchase record. Its role is charging a second battery from a DC source, such as the vehicle side of a dual-battery system. The original manual covers charger setup, power-supply mode, remote control and troubleshooting. Isolation is a meaningful model distinction when comparing it with other Orion products or planning how the two battery systems connect.

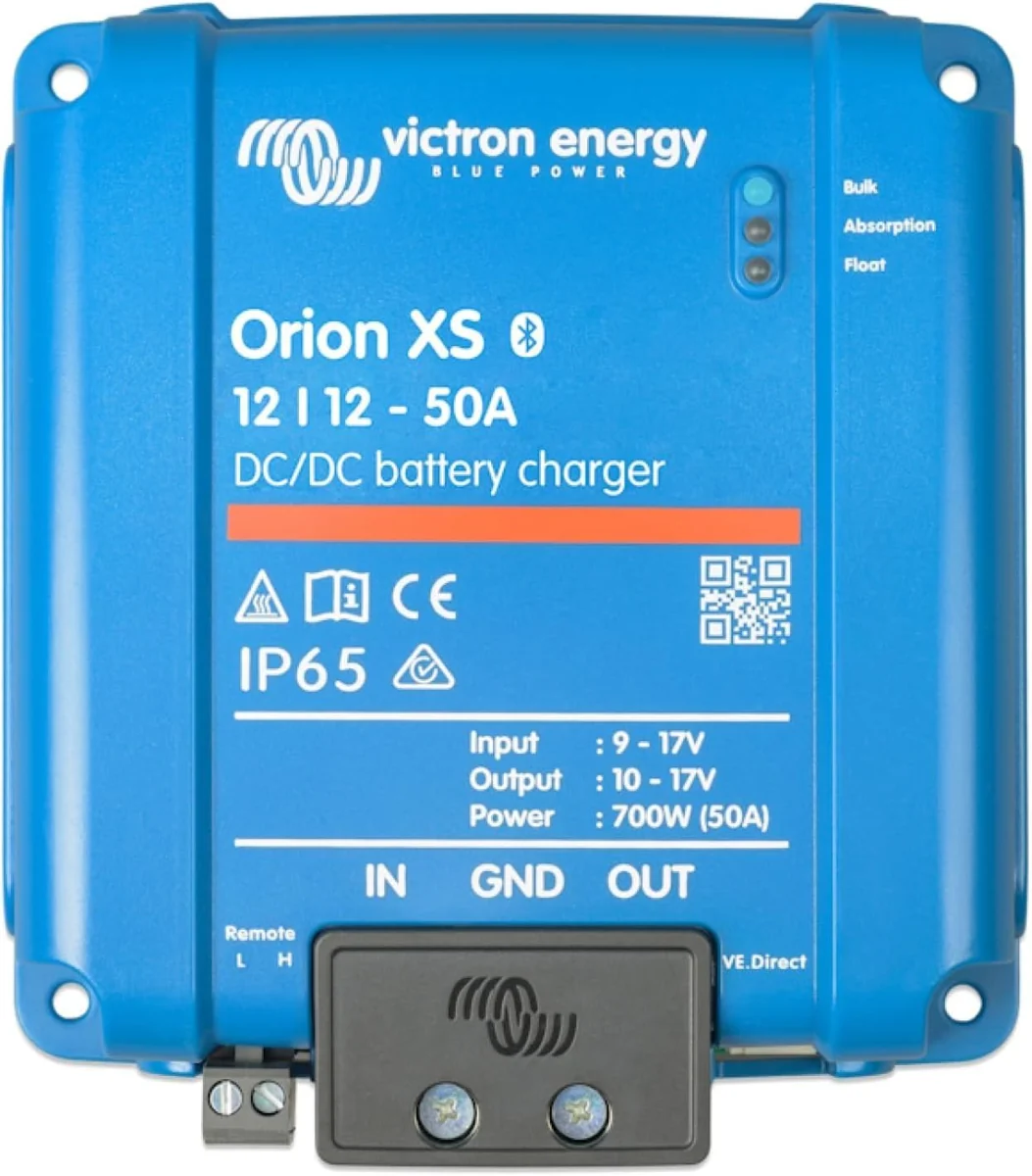

The Orion XS shown as an alternative is a separate product. The original 12/12-30 isolated Orion-Tr Smart identity remains unchanged.
Alternative products
Two Alternatives to Compare

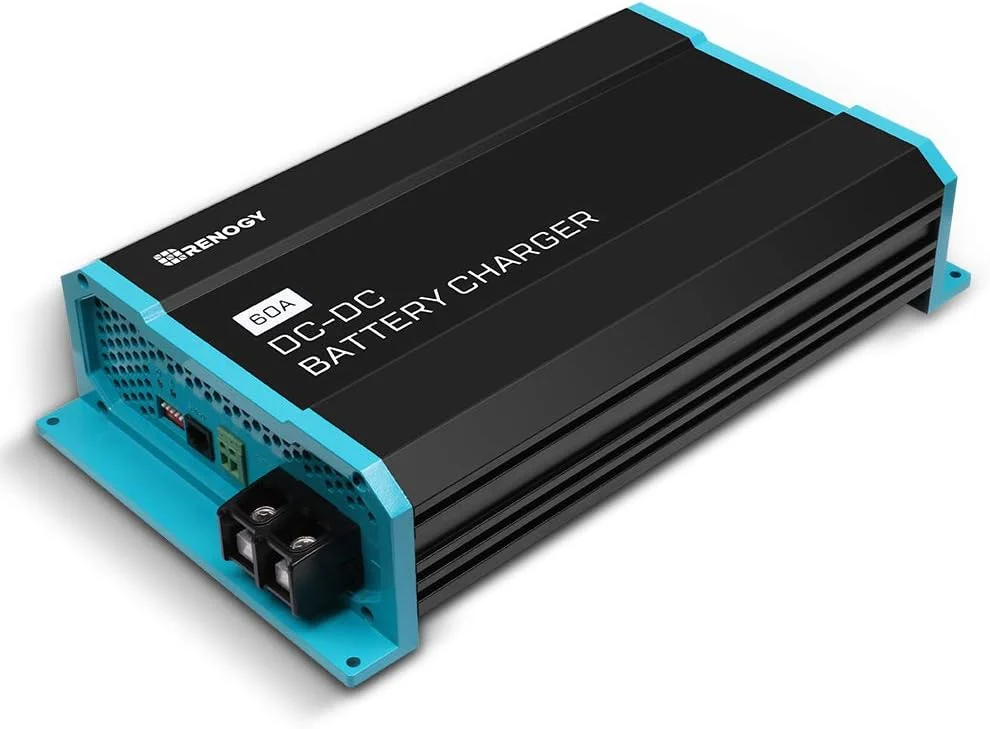

The Orion XS is a 50A charger in a different housing, while the Renogy purchase uses a 60A charging format; their connection layouts and isolation arrangements differ.
This DC-to-DC charger transfers charging power between 12-volt battery systems. Its enclosure provides separate input and output terminals for the two sides of the charging circuit.
