The Class T kit is among my purchased battery-system components. My cable-routing diary documents the separate but related challenge of giving the wiring and its enclosures an organized place in the van.
The trimmed roof opening where my cable groups enter the van.
The item in my kit

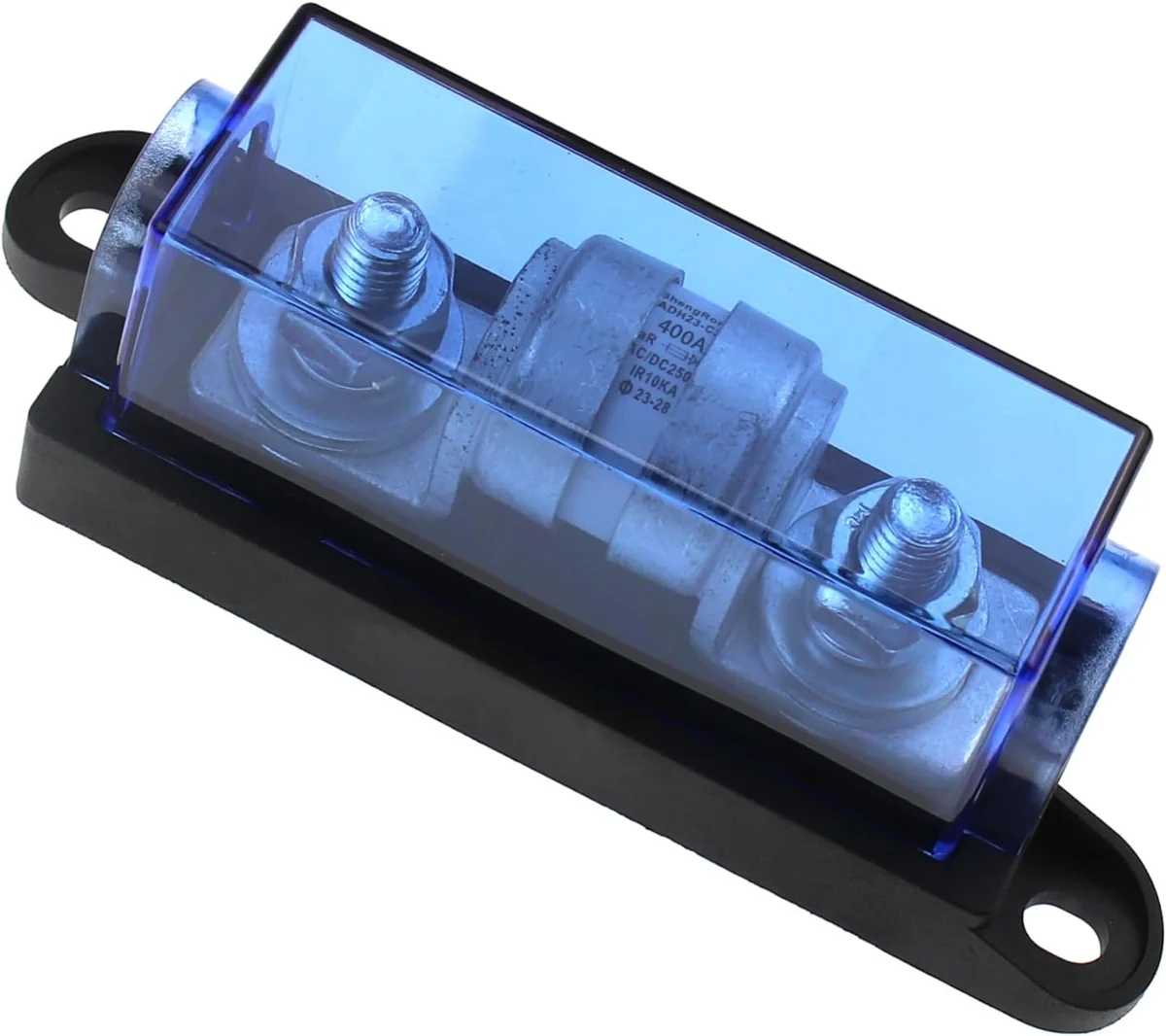

I bought ZOOKOTO 400A Class T Fuse Kit as part of my camper van equipment.
The Class T kit is among my purchased battery-system components. My cable-routing diary documents the separate but related challenge of giving the wiring and its enclosures an organized place in the van.
Where it fits my build
On Day 104 I pulled the roof wiring through the PVC route with fish tape and brought the cable groups into the van. I fitted plastic trim around the roof opening where the wires passed through.
I also finished the remaining light-wire connections, fitted the junction-box covers, joined the remaining PVC sections and tightened the metal ties around the route.
The roof at the end of my Day 104 wiring session.
My build notes
This stage pulled together several earlier sessions of drilling boxes, fitting glands and arranging the roof hardware. The final cable entry was the point where all those separate roof routes met.
My notes show how much of the work was physical organization: pulling cables, keeping entry points accessible and closing boxes after the connections were finished.
The route into the van was a layout problem as much as a wiring task.
Alternative products
Two alternatives to compare
Blue Sea and South Bend provide alternative Class T holder designs, changing the mounting base and cover arrangement from the ZOOKOTO kit.

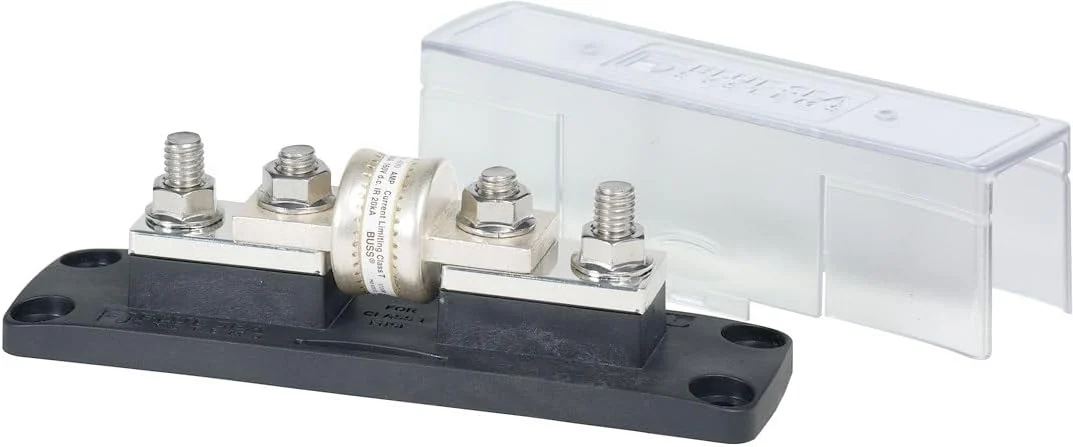

Blue Sea Class T Fuse Block
This block provides bolt-down mounting points for a Class T fuse. An insulating cover sits over the fuse and terminal area.

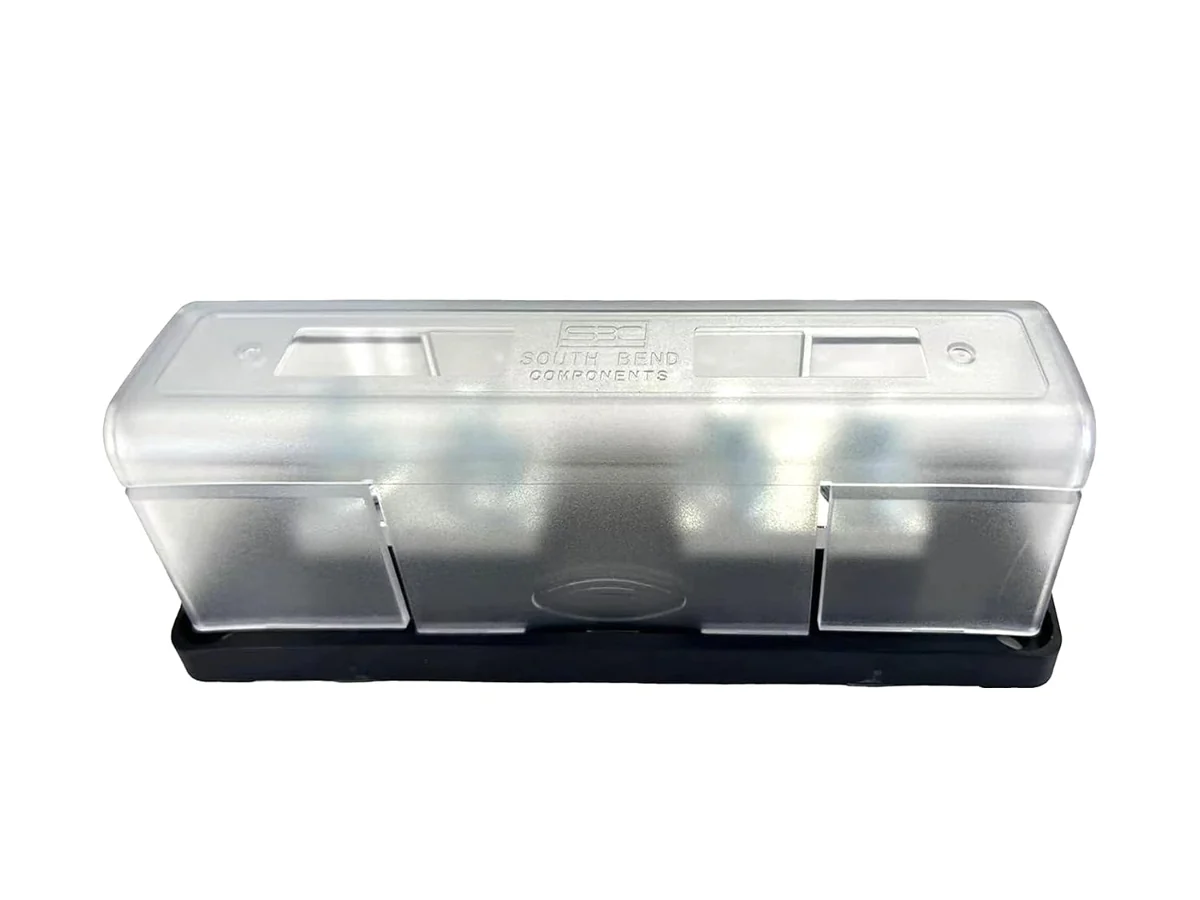

This covered block provides bolt-down mounting points for a Class T fuse. Its base and terminals are arranged for the larger 225A-to-400A fuse-body range.
