I attached inside brackets while putting together the storage drawer frame. These small black braces are a separate hardware purchase that illustrates the compact corner-connection format.

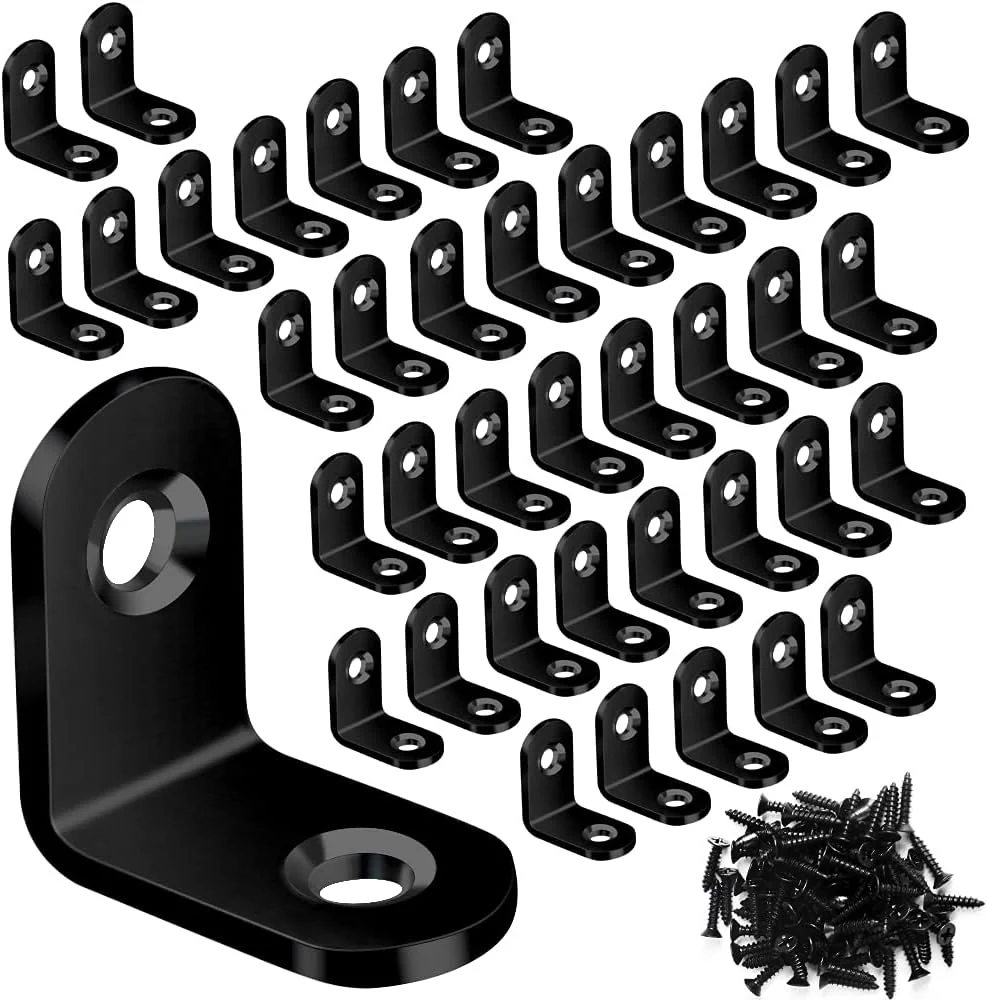

I bought Black Stainless Corner Braces as part of my camper van equipment.
I attached inside brackets while putting together the storage drawer frame. These small black braces are a separate hardware purchase that illustrates the compact corner-connection format.
Fitting Inside Brackets Before Closing the Drawer Base
I drilled and screwed the timber pieces into a box frame.
I attached galvanized right-angle brackets inside the frame with one-inch screws.
I fitted the plywood base before moving on to the rubber lining.
The drawer after I fitted its rubber lining.The measured timber drawer frame on my patio.
My Takeaway from This Job
The inside bracket work came while the frame was open and easy to reach. These purchased black stainless braces offer a compact corner format; leg size and hole placement are the useful differences to compare with the two alternative angles.
I fitted the inside brackets while the timber frame was still open.
Product Details And Van-Build Uses
Specification
Product Detail
Material
Stainless steel
Shape
Right-angle brace
Holes
Fastening points in both legs
The two legs attach to different surfaces, so the mounting sketch needs to show both sides of the corner. Mark the screw positions and the room required to reach them before surrounding panels are fitted. For a van cabinet or small support, keep the brace size and exact product reference with those measurements. That makes the bracket layout clearer than a single corner symbol and preserves the distinction between a bent brace and a flat joining plate.
Show the attachment surface, screw positions and access to each screw head.
Alternative products
Two Alternatives to Compare
The Simpson and LuckIn alternatives offer other corner-bracket formats. Leg dimensions, hole positions and finish determine how each sits within a joint.
These stainless-steel L-braces provide right-angle connections between components. Their drilled legs and included screws provide a compact corner-fastening format.
