The MANCHAP wheels are part of my purchased mechanism hardware. My storage drawer diary documents another moving assembly, from its timber frame to the final slide connections.
I bought MANCHAP Two-Inch U-Groove Wheels as part of my camper van equipment.
The MANCHAP wheels are part of my purchased mechanism hardware. My storage drawer diary documents another moving assembly, from its timber frame to the final slide connections.
Moving Parts Alongside the Storage Project
I planned the storage assembly and simulated the roof dimensions on the patio.
I built the timber drawer frame and base, then cut the rubber lining with scissors.
I fitted the lining with adhesive, screws and washers before attaching the slides to the drawer and cabinet.
The drawer after I fitted its rubber lining.The measured timber drawer frame on my patio.
My Takeaway for the Build
Planning the roof-storage assembly made the moving parts and their supporting structure part of one layout. My MANCHAP purchase uses a U-groove wheel. The V-groove alternative changes the track contact itself, so groove shape and bracket position come before comparing the number of wheels in a pack.
Product Details And Van-Build Uses
Specification
Product Detail
Wheel Form
U-groove
Nominal Size
2 inches
Mount
Bracket with fastening holes
The groove and the track need to be drawn together before laying out a rolling assembly. The bracket holes establish how the wheel unit attaches to the moving or fixed part. For a van storage prototype, sketch the wheel path, nearby edges and the room available to reach the mounting screws. Keep this grooved-wheel format separate from the SBR16 supported-rail blocks and stop collars, which use a different physical arrangement for guided movement.
Compare the groove, track shape and bracket mounting pattern as parts of one layout.
Alternative products
Two Alternatives to Compare

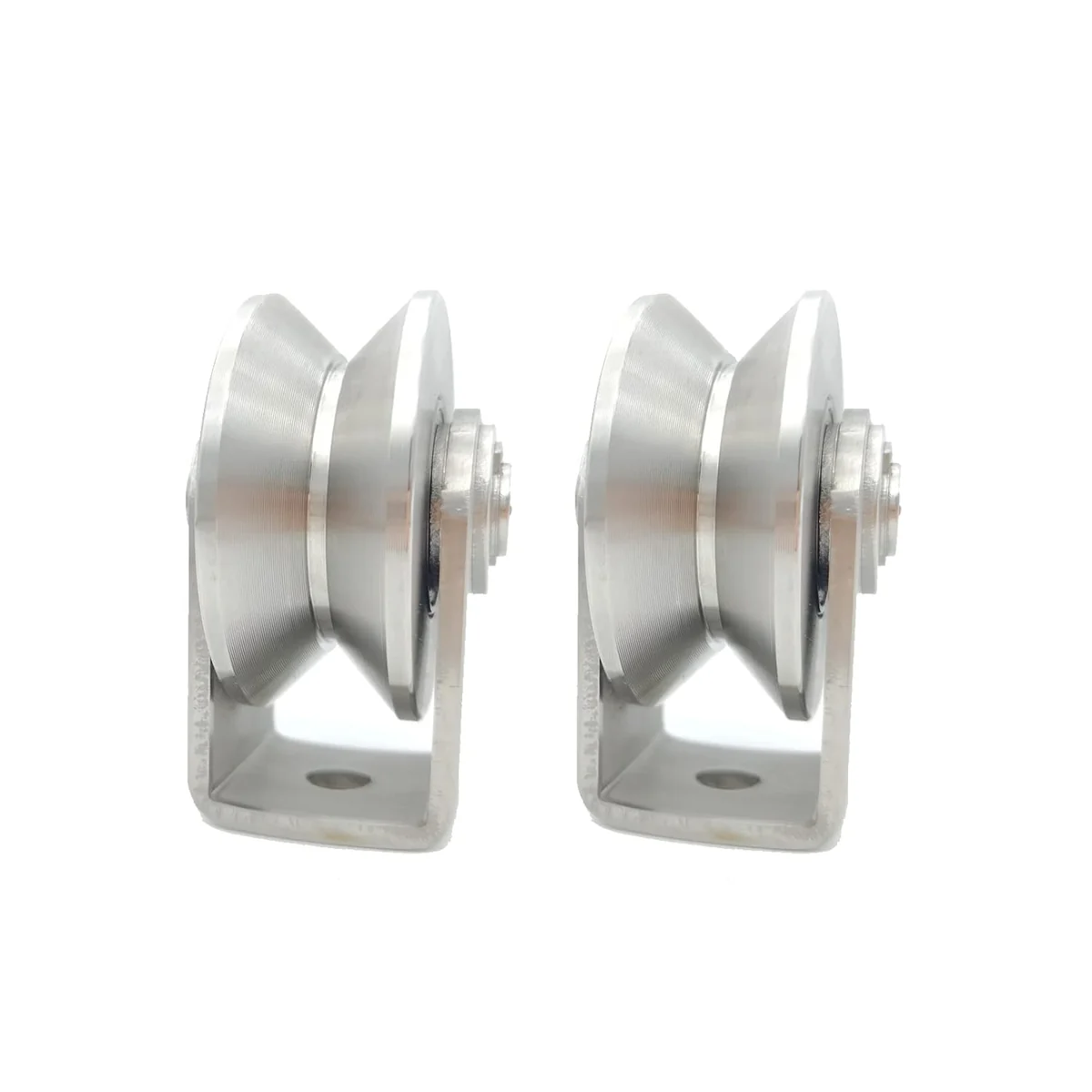

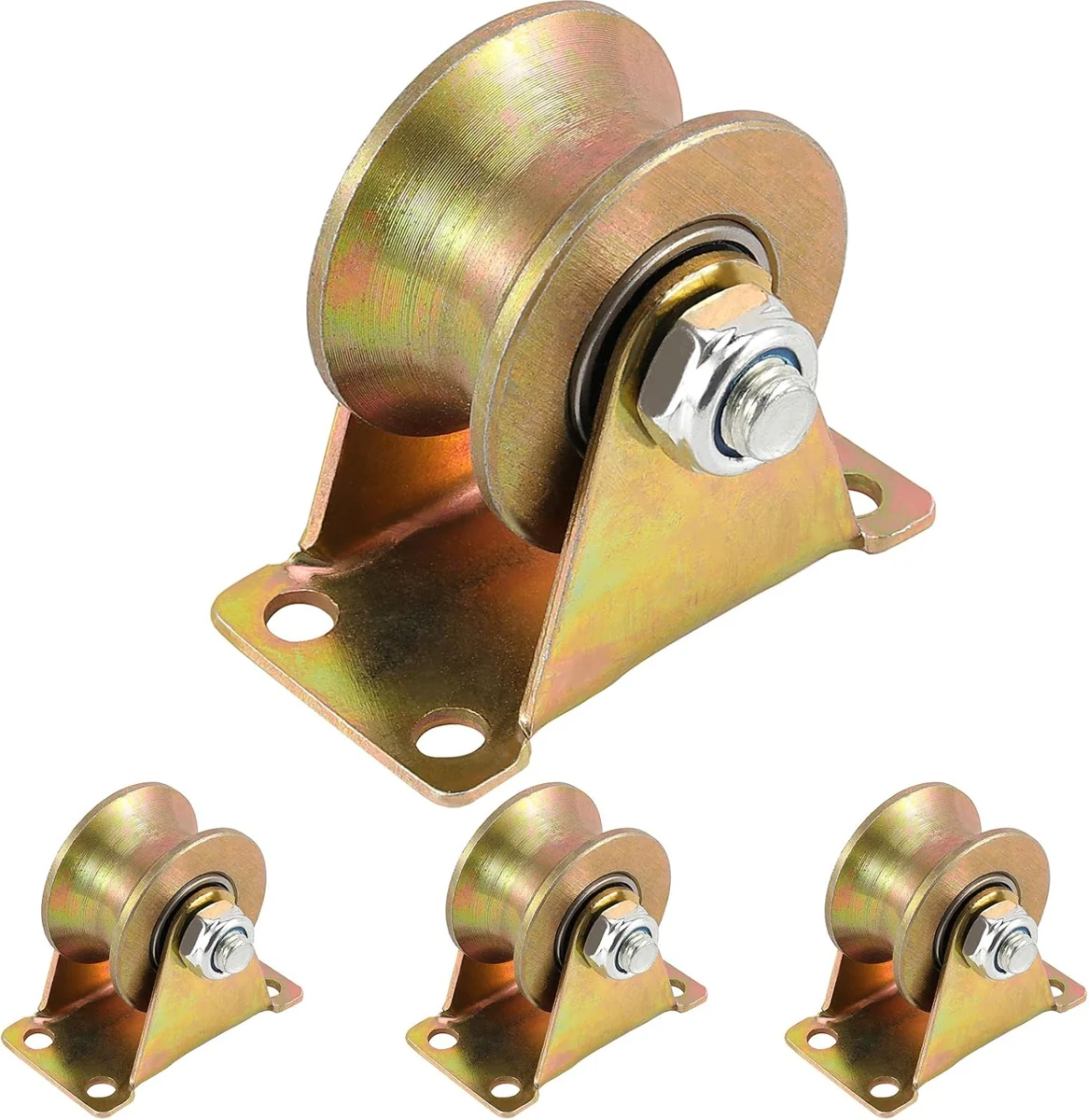

The ZOENHOU wheels use the same general U-groove arrangement. The stainless alternative uses a V-groove, which corresponds to a different track shape and changes the design of the moving assembly.
Product
What distinguishes it
Purchase link

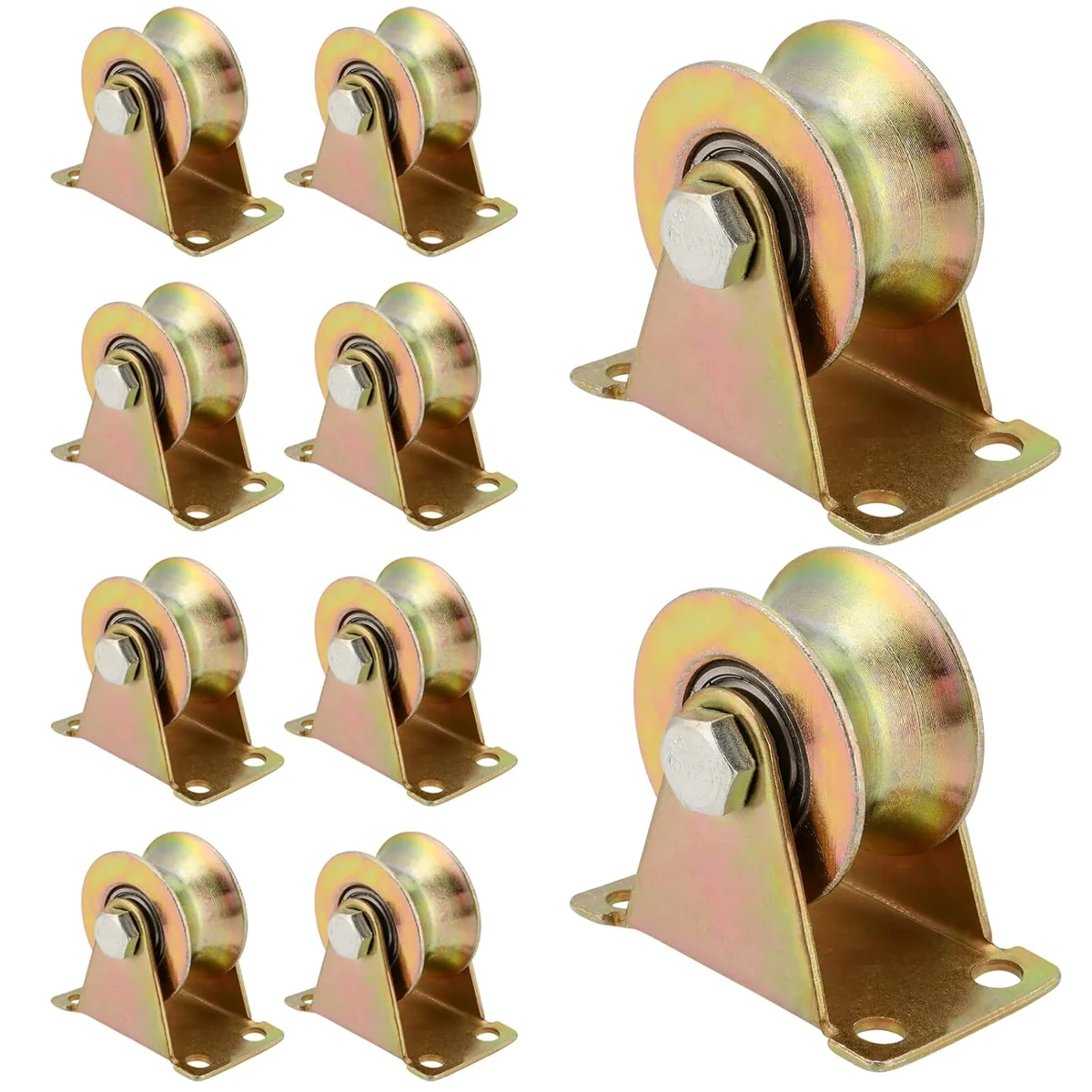

MANCHAP Two-Inch U-Groove Wheels
Bracket-mounted two-inch wheels with U-shaped grooves.
