Prime-Line U 9945 Cabinet Cam Lock

This cam lock belongs to the cabinet and storage hardware in my purchase records.

By · Camper Van Freedom

Read my build notes ↓

The Item in My Kit

I bought Prime-Line U 9945 Cabinet Cam Lock as part of my camper van equipment.

This cam lock belongs to the cabinet and storage hardware in my purchase records.

Cylinder Length Beside a Cabinet Panel

  1. I planned the storage assembly and simulated the roof dimensions on the patio.
  2. I built the timber drawer frame and base, then cut the rubber lining with scissors.
  3. I fitted the lining with adhesive, screws and washers before attaching the slides to the drawer and cabinet.
The measured timber drawer frame on my patio.
The measured timber drawer frame on my patio.
The drawer after I fitted its rubber lining.
The drawer after I fitted its rubber lining.

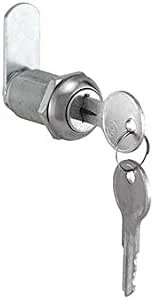

Prime-Line U 9945 Cabinet Cam Lock

My Takeaway for the Build

Building the storage assembly meant considering the moving parts and the surrounding frame together. The cam-lock purchase adds a cylinder through a panel and a turning cam behind it. The alternatives change key format, cylinder length and visible finish, so the panel-and-cam space is more useful to compare than the face alone.

Product Details And Van-Build Uses

SpecificationProduct Detail
ModelU-9945
Cylinder3/4-inch outside diameter
Cylinder Length1-1/8 inches
Cam Stops90° or 180° rotation washers

The original Prime-Line instruction sheet shows the cylinder, trim collar, spur washer, rotation washer and cam as separate parts. Choose the straight or offset cam position as part of the cabinet layout, then identify its path behind the closed door. In a van drawer or cabinet drawing, include the panel, opening and rear clearance around that rotating piece. Keeping the selected rotation washer with the cam record makes the intended movement easier to reproduce.

Manufacturer Product Reference

Download Prime-Line U-9945 Installation Instructions (PDF)

Related Build-Kit Reference: Poster Palooza Quarter-Inch Offset Clips

Where Are The Original Assembly Instructions?

The linked U-9945 instruction sheet includes an exploded diagram and the cam and rotation-washer arrangement.

Alternative products

Two Alternatives to Compare

The tubular-key alternative uses a five-eighths-inch cylinder format. The black Pertinel alternative uses a longer one-and-an-eighth-inch cylinder and a different visible finish.

ProductWhat distinguishes itPurchase link
Prime-Line U 9945 Cabinet Cam LockKeyed cylinder packaged with cam hardware and keys.View on Amazon
Tubular-Key Cabinet Cam Locks (alternative)Two tubular-key locks with five-eighths-inch cylinders.View on Amazon
Pertinel Black Cabinet Cam Locks (alternative)Two black locks with one-and-an-eighth-inch cylinders.View on Amazon

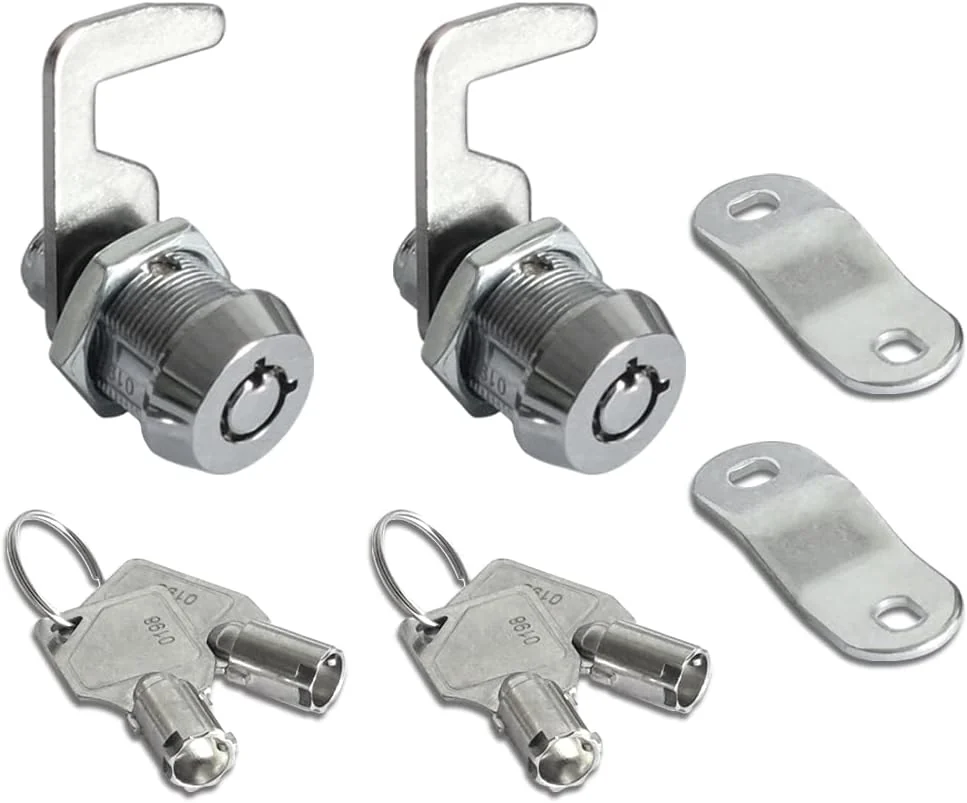

Tubular-Key Cabinet Cam Locks

Tubular-Key Cabinet Cam Locks

These cabinet cam locks use tubular keys to rotate the rear locking cam. The two-pack uses a five-eighths-inch cylinder format.

View on Amazon

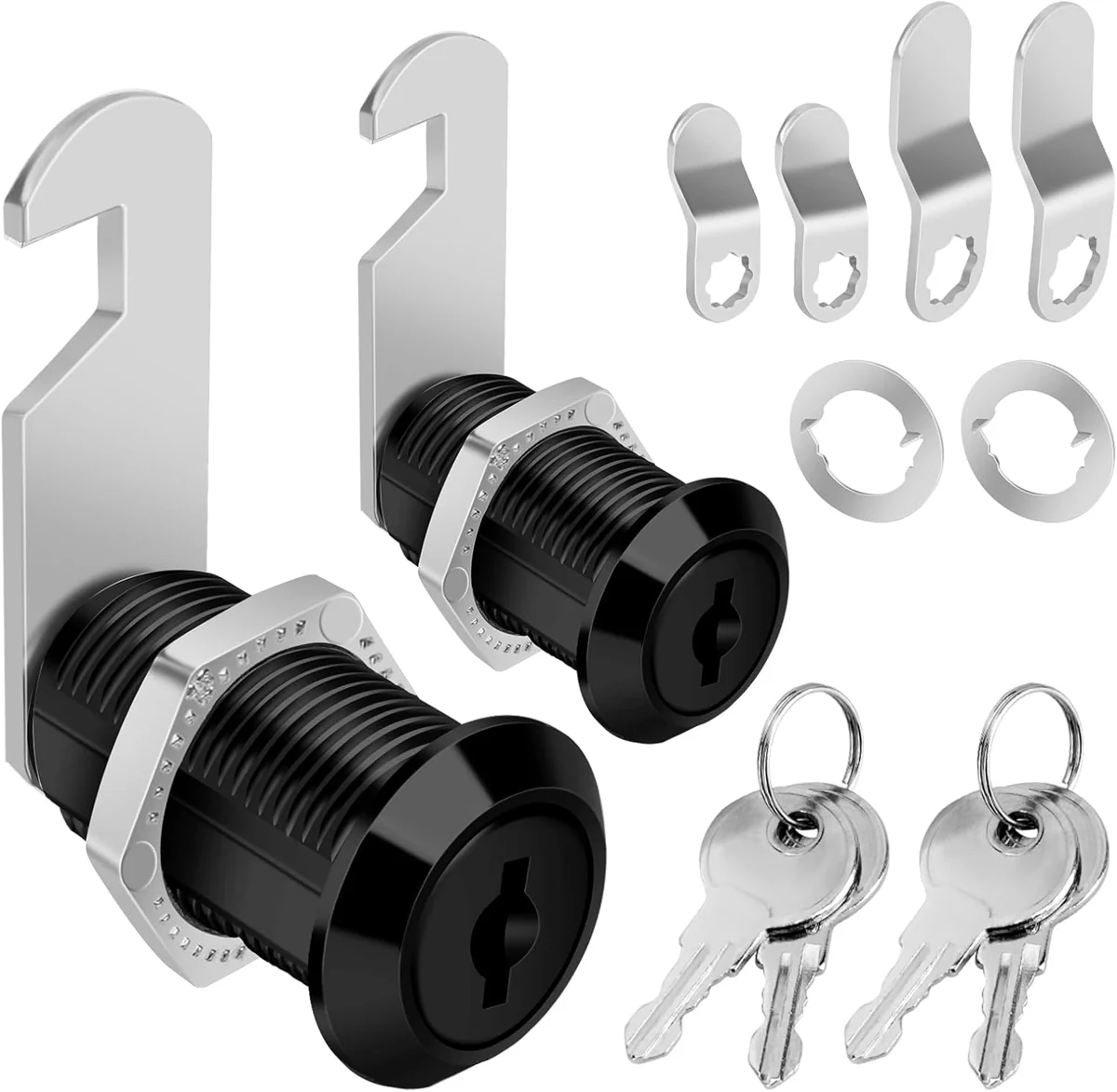

Pertinel Black Cabinet Cam Locks

Pertinel Black Cabinet Cam Locks

These black cabinet locks use a keyed cylinder and rear cam. The two-pack has one-and-an-eighth-inch cylinders.

View on Amazon
