I attached steel right-angle brackets inside the timber storage-bin drawer frame. The close-up photographs show the brackets and screws before I lined the drawer with rubber mat.
The drawer began as a timber box frame on the patio, within the roof-storage project. The corners needed their own fastening stage before I moved on to the base and lining.
The steel L-angle brackets were included in my materials. My diary records fitting galvanized right-angle brackets inside the frame with one-inch screws.
Recording the Corner Hardware Before the Lining Covered It
I cut, drilled and screwed together the timber drawer frame.
I drilled and fastened the right-angle brackets inside the corners.
I added the base, rubber lining and slide attachments during the later drawer work.

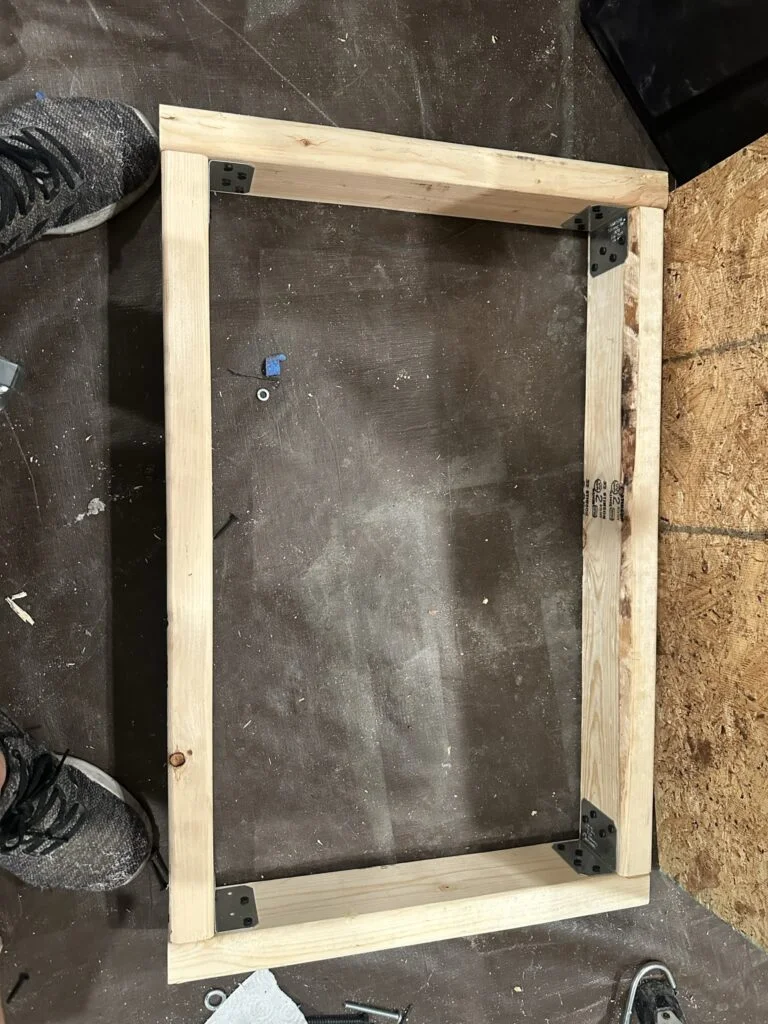

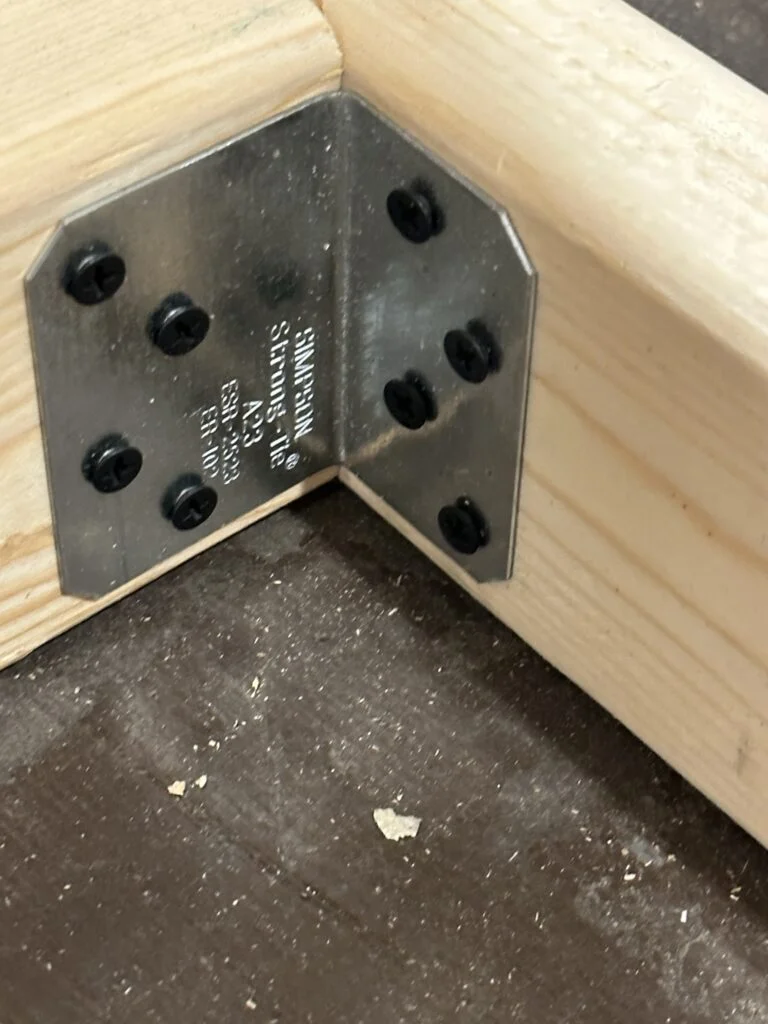

The timber drawer frame during construction on the patio.A steel angle bracket screwed inside a corner of my storage-bin drawer.
My Takeaway from This Job
The exposed-frame photographs preserve the corner connections before the rubber lining partly covered them. Corner hardware, lining and slides were separate stages, and each changed what I could reach next.
The corner attachments were visible during assembly before the rubber lining covered more of the frame.
Product Details And Van-Build Uses
Specification
Product Detail
Material
Steel
Profile
Right-angle L bracket
Steel corner brackets provide two perpendicular mounting faces for joining a drawer or cabinet corner. Their usefulness depends on the hole positions, bracket width and the room left for a screwdriver or socket. In a van cabinet, compare the bracket location with drawer slides and the closed drawer position before drilling. A bracket can fit the corner yet obstruct moving hardware. Lay out the fastener heads as part of the assembly, including any washers that extend beyond the bracket holes.
What Should I Check Before Fitting A Drawer Bracket?
Check the drawer travel, fastener access and the contact area on both sides of the corner. The bracket and screw heads need clearance throughout the drawer movement.
Alternative products
Two Alternatives to Compare

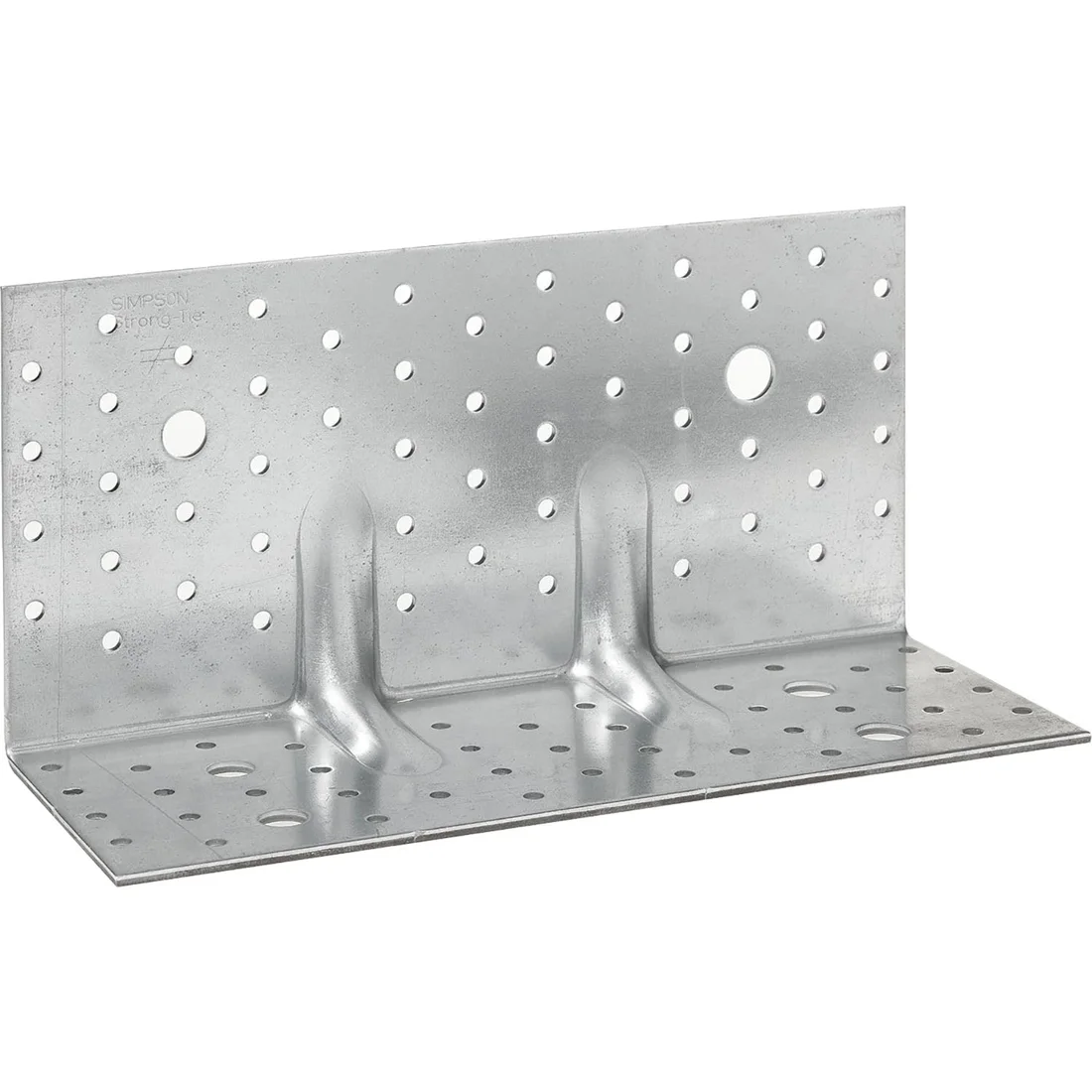

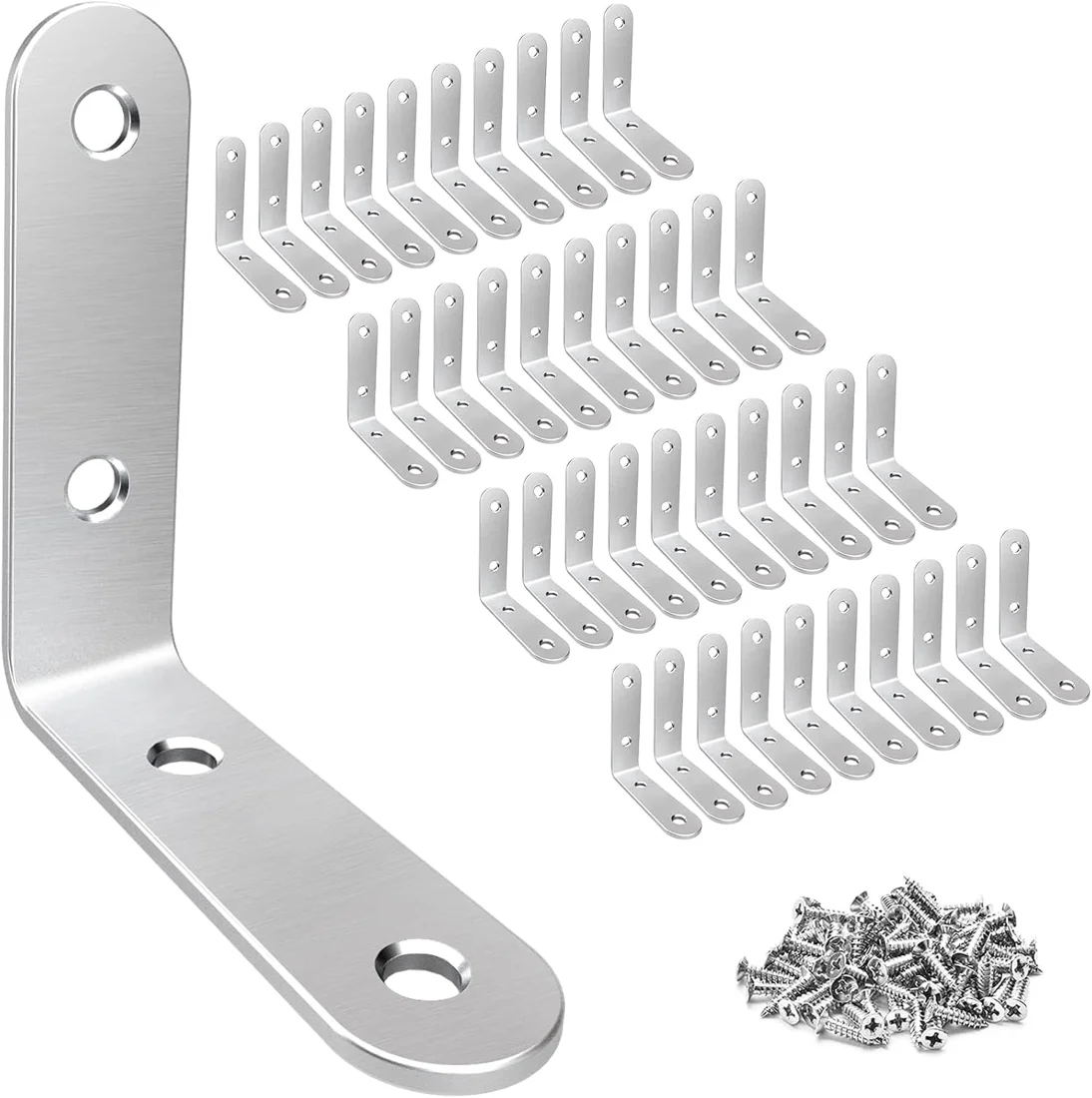

The Simpson ABR255 uses a formed angle with multiple fastening holes. The LuckIn braces use a narrower stainless L-shape and come with screws. Leg width, hole arrangement and the space occupied inside a corner distinguish these bracket formats.
Product
What distinguishes it
Purchase link
Steel Drawer Corner Brackets
Steel right-angle brackets inside my timber drawer
These stainless-steel L-braces provide right-angle connections between components. Their drilled legs and included screws provide a compact corner-fastening format.
