Storage construction involves more than the drawer slides shown in my diary. These white hinges are another purchased movement option for wooden doors and lids.

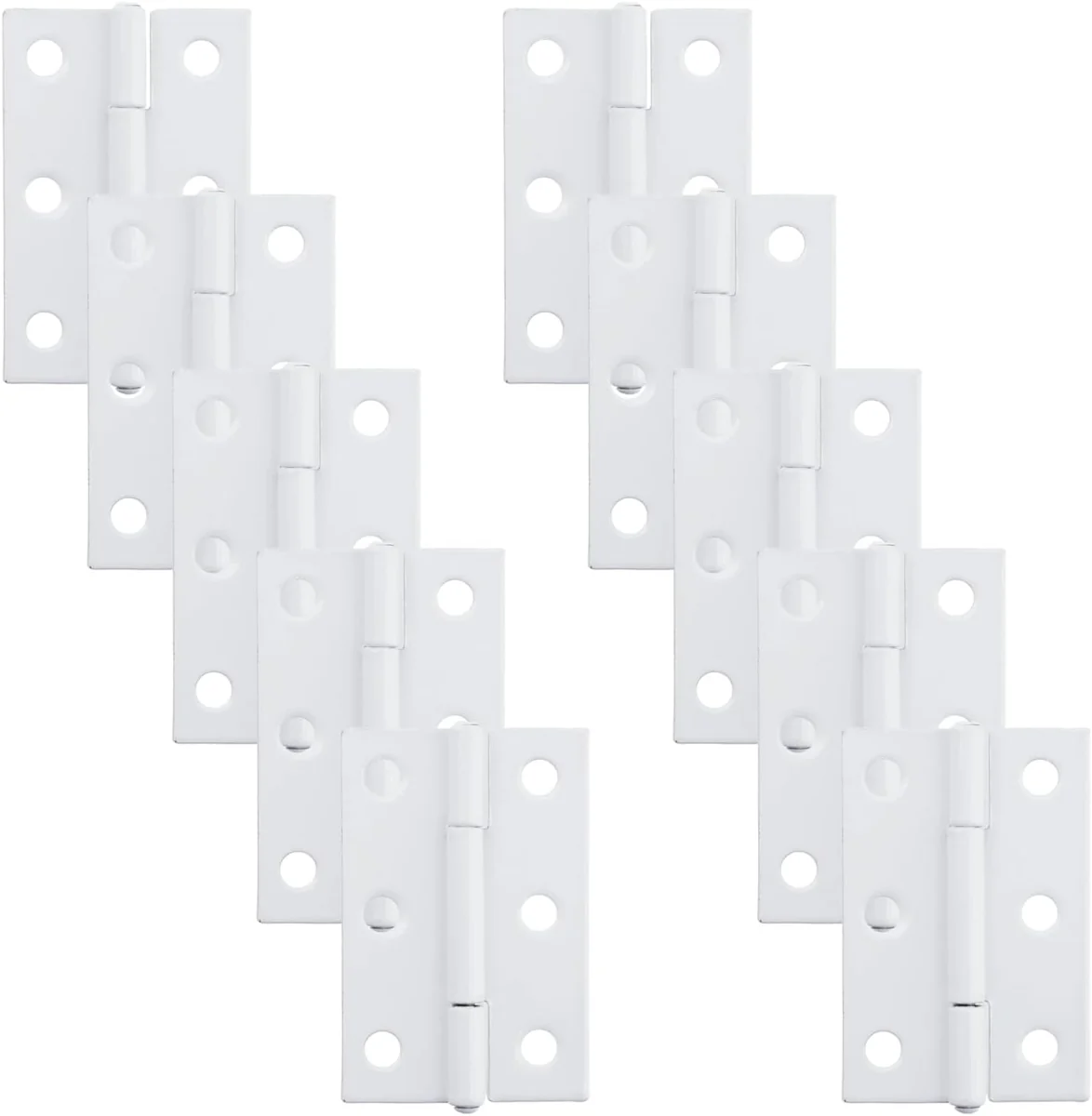

I bought Tulead White Butt Hinges as part of my camper van equipment.
Storage construction involves more than the drawer slides shown in my diary. These white hinges are another purchased movement option for wooden doors and lids.
Adding a Hinged-Panel Option to the Storage Kit
I built a timber cabinet frame around the storage-bin drawers.
The photographed drawer assembly moved on slides after I fitted its base and lining.
I bought white butt hinges among the separate hardware options for doors and lids.
The drawer after I fitted its rubber lining.The measured timber drawer frame on my patio.
My Takeaway from This Job

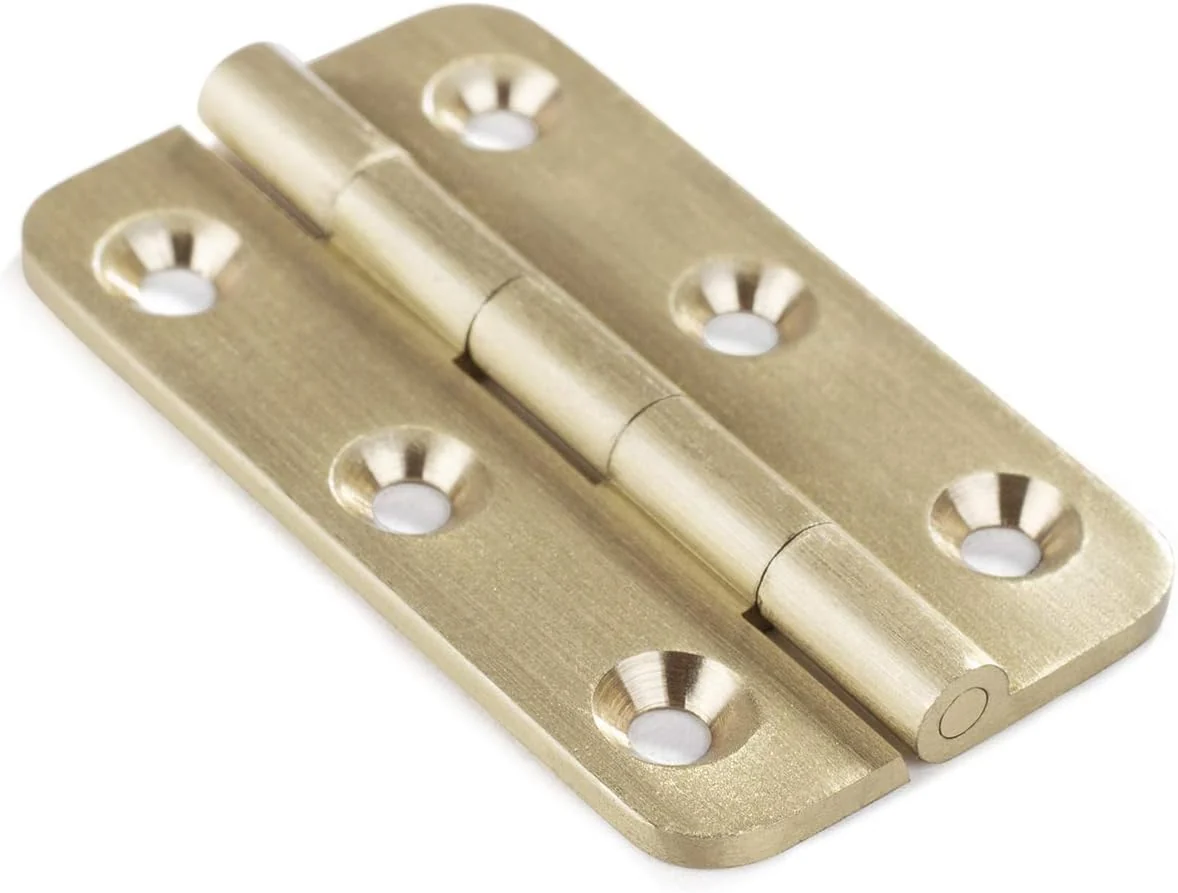

The storage kit includes both sliding and hinged movement. Within the hinge comparison, the leaf shape, hole layout and finish are the useful choices: white Tulead, brass Keenkee or black Murtenze.
A hinge adds rotation; my photographed drawer used sliding movement.
Product Details And Van-Build Uses
Specification
Product Detail
Listed size
51 × 34 × 1.2 mm
Pack
Ten hinges with screws
Material
Iron
A small cabinet butt hinge needs its two leaves aligned before the door holes are marked. Hold the panel at its finished gap, check the pivot line and open it through the intended arc. The Tulead listing gives a 51 by 34 mm footprint, which can be transferred to a simple paper pattern for checking against narrow timber edges. Include the screw positions and covering thickness in that pattern. This is useful for comparing a surface-mounted lid with a door that needs more clearance around its frame.
