Flatline Van Co Low Pro Roof Rack

My Flatline rack was the starting point for fitting the solar panels, extrusion and cable routes on the roof.

By · Camper Van Freedom

Read my build notes ↓

The Item in My Kit

My Flatline rack was the starting point for fitting the solar panels, extrusion and cable routes on the roof.

How the Rack Shaped My Roof Layout

  1. I moved the rack cross beams to suit the solar-panel length and added 2020 extrusion above the rack.
  2. I brought two solar panels onto the roof for fitting.
  3. I arranged junction boxes, cable glands, power leads and Ethernet routes alongside the mounting work.
Lights, cables and tools laid out during my roof work.
Lights, cables and tools laid out during my roof work.
Rack extrusion and mounting hardware during the fitting stage.
Rack extrusion and mounting hardware during the fitting stage.

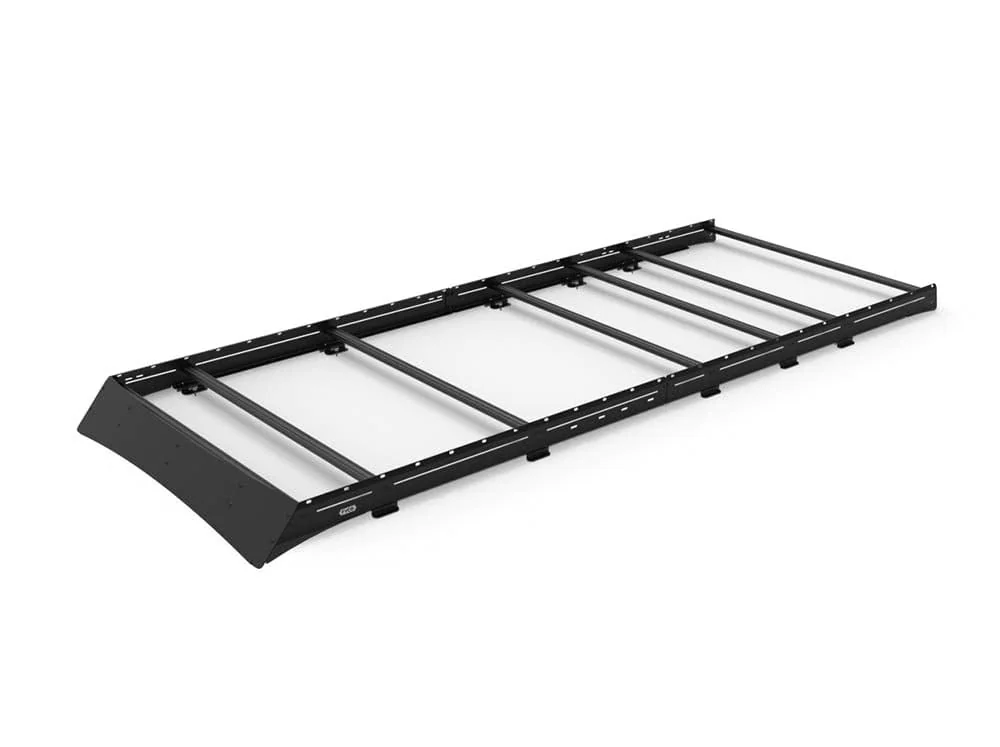

Flatline Van Co Low Pro Roof Rack for My Extended Transit

My Takeaway for the Build

I moved the Flatline rack cross beams to suit the solar-panel length and added 2020 extrusion above them. That makes adjustable layout the useful takeaway from this purchase. The two alternatives are crossbar ladder racks, so they change the structure around which the panels and other roof equipment would be arranged.

Product Details And Van-Build Uses

SpecificationProduct Detail
Rack FamilyLow Pro for Transit 148-inch High Roof Extended
ConstructionAluminum side rails and crossbars
Current Product LayoutSeven adjustable crossbars

An adjustable crossbar layout gives a roof-equipment plan room to position components along the rack. Flatline describes compatibility with 10-series 80/20 accessories for the current product. The linked TR0102B instructions cover the normal-fairing extended high-roof rack family relevant to this page. They are useful for understanding the rack assembly and mounting sequence while keeping later product revisions separate from my purchase history.

Manufacturer Product Reference

Download Flatline TR0102B Transit Low Pro Rack Installation Guide (PDF)

Which Installation Guide Matches This Rack Family?

The linked TR0102B guide is for the Transit Low Pro 148-inch high-roof extended rack. It is separate from the Sprinter, ProMaster and other Transit-length guides.

Alternative products

Two Alternatives to Compare

My Flatline Low Pro rack provides the platform around which I arranged the roof equipment. The MELIPRON and MusixiA alternatives use crossbar ladder-rack layouts rather than the same full-length rack design.

ProductWhat distinguishes itPurchase link
Flatline Van Co Low Pro Roof Rack for My Extended TransitFull-length low-profile rails and adjustable crossbars.View at Flatline Van Co
MELIPRON Transit Ladder Rack (alternative)Separate ladder-rack bars with rear cargo roller.View on Amazon
MusixiA Transit Roof Crossbars (alternative)Two steel crossbars with upright end stops.View on Amazon

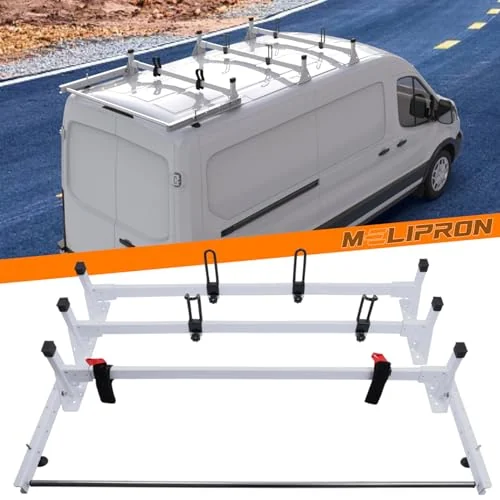

MELIPRON Transit Ladder Rack

Melipron Transit Ladder Rack

This crossbar ladder rack includes a rear cargo roller. Its separate roof bars provide a different layout from a full-length camper-van platform rack.

View on Amazon

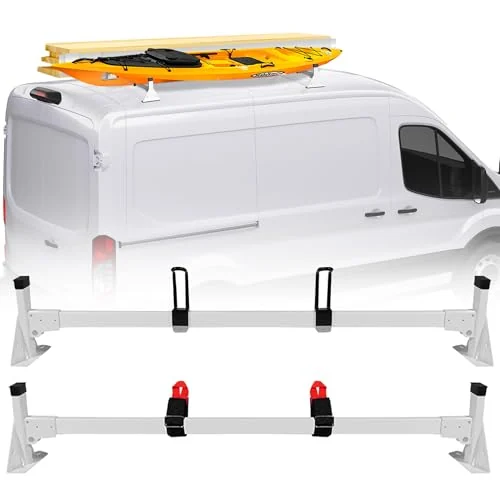

MusixiA Transit Roof Crossbars

MusixiA Transit Roof Crossbars

This steel ladder-rack set uses two roof crossbars. Upright stops at the bar ends help define the cargo-carrying area.

View on Amazon
