The Blue Sea 7187 is the named 100A surface-mount breaker in my electrical drawings. I keep its 285-series identity separate from the other generic breaker symbols in the system.
I used the Blue Sea 100A breaker named in my original drawing. The manufacturer identifies the 7187 as a surface-mounted 285-series unit, matching the 100A component image in the source diagram.
The electrical build has several forms of distribution and protection hardware. A named breaker, a fuse and a bus bar each get a separate reference so the component list stays readable when following a branch through the drawing.
My Build Context
The breaker appears with the DC-load and distribution components in my system diagram. The wider build also includes the battery on/off switch, a Smart BatteryProtect and branch switching at the Nilight panel.
Those controls describe different functions. The on/off switch provides manual isolation, the BatteryProtect controls its load supply and the breaker provides its own switching and overcurrent function. Keeping their names visible makes the equipment pages easier to follow from the diagram.
The vehicle detail from my electrical-system diagram, including component E46.
My main comparison points are the breaker’s rating, mounting arrangement and terminals. The 7187’s 100A marking identifies the component; the word “surface-mount” explains the housing format.
A panel-mounted 187-series breaker changes the installation format even at the same nominal current. Another surface-mounted 100A breaker has its own body, terminal and mounting dimensions. I would compare those details alongside the rating when planning the space for the component.
A matching amp label is only one part of identifying a breaker; keep its series and mounting format too.
Product Details And Van-Build Uses
Specification
Product Detail
Model
7187, 285-Series
Current Rating
100A
Maximum Voltage
48V DC
Terminal Studs
M6

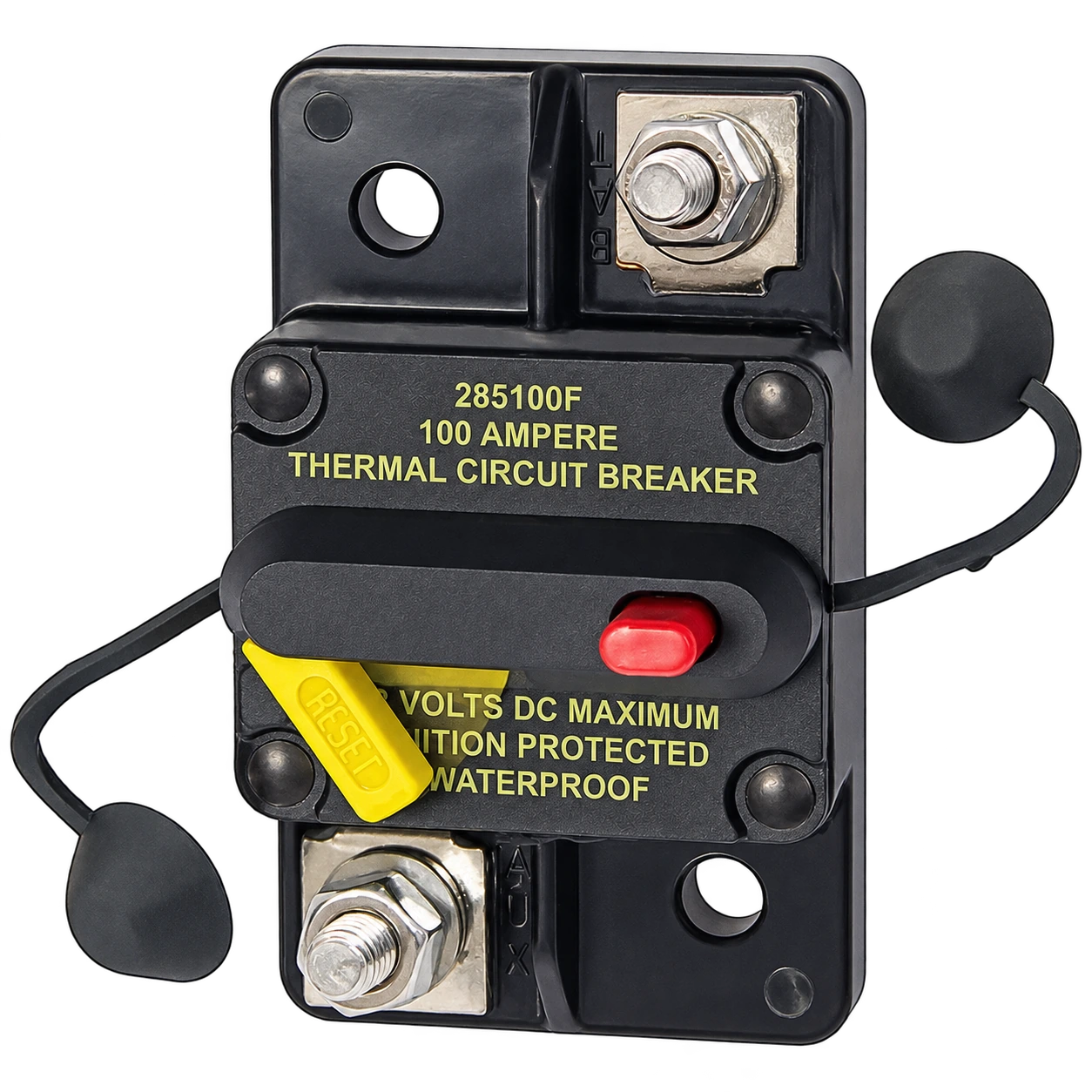

The Blue Sea 7187 combines a manual-reset circuit breaker with a visible reset lever. Its 100A rating identifies this particular model within the wider 285-Series, while its 48V DC maximum is a separate specification. The manufacturer’s dimensioned drawing helps with enclosure clearance and stud access before a component is mounted. In a van electrical layout, that physical information is useful when arranging cable lugs, covers and neighboring distribution parts. The lever also makes the open condition visible during troubleshooting. Blue Sea identifies the device as trip-free, meaning the mechanism cannot be held closed after it trips.
No. The 285-Series includes multiple current ratings. Model 7187 is the 100A surface-mount version.
Alternative products
Two Alternatives to Compare
The Blue Sea 7044 keeps a 100A rating but changes to the panel-mounted 187-series format. The E9 100A option uses a surface-mounted body with a manual-reset control. Their housing, terminal and mounting details distinguish them from the 7187.
