Trailer wiring is another connection point in my equipment list. My roof-wiring diary shows the broader approach I took to cable routing: arranging the physical route and connections before closing up the surrounding work.

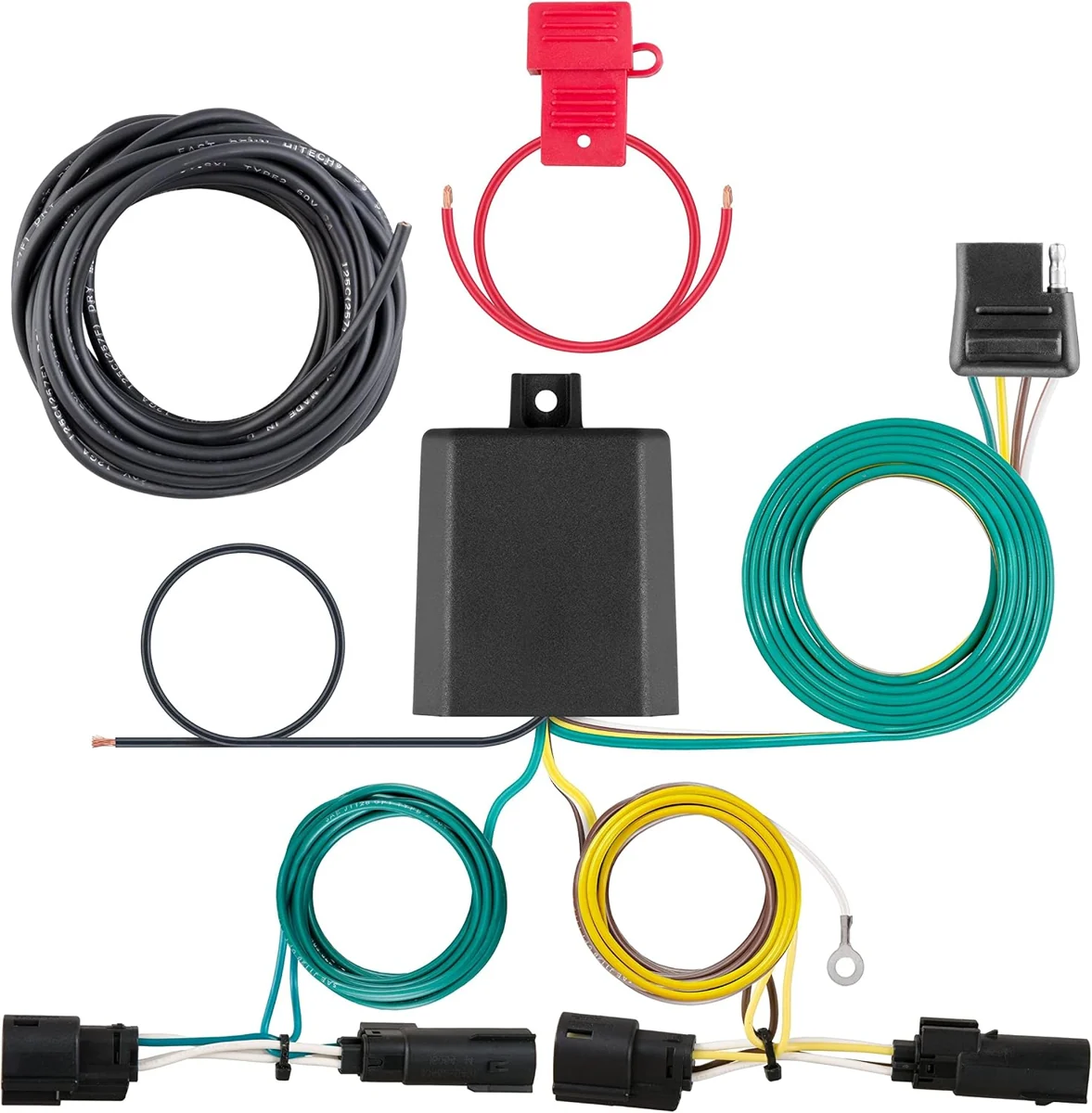

I bought CURT 56327 Transit Trailer Wiring Harness as part of my camper van equipment.
Trailer wiring is another connection point in my equipment list. My roof-wiring diary shows the broader approach I took to cable routing: arranging the physical route and connections before closing up the surrounding work.
Trailer-Light Connections and Harness Format
I pulled the roof cables through the PVC route with fish tape.
I fitted plastic trim around the roof opening where the wires entered the van.
I completed the remaining light connections, covered the boxes and joined the final conduit sections.
The trimmed roof opening where my cable groups enter the van.The roof at the end of my Roof Wiring and Devices Project Day 8 wiring session.
My Takeaway for the Build
My wiring work reinforced the value of planning the full route and the connections at its ends. The CURT 56327 purchase uses a vehicle-specific harness format. MECMO offers another T-connector approach; the powered CURT converter uses splice-in leads, so it belongs to a different installation layout.
Product Details And Van-Build Uses
Specification
Product Detail
Model
CURT 56327
Output
Four-way flat trailer-light connector
Connection
Vehicle-specific harness with battery connection
The CURT instructions describe a harness that connects at the tail-light assemblies and includes a separate battery feed. The four-way output carries the trailer-light functions identified in the product reference. For a van parts record, keep model 56327 and the exact vehicle application together, along with the planned route to the connector. The linked installation sheet provides the original sequence and illustrations. It is a product-specific reference, while my purchase and the documented cable-routing work remain separate observations.
CURT identifies tail, brake and turn-signal lighting functions through the four-way flat connector. The installation sheet also documents the separate battery connection.
Alternative products
Two Alternatives to Compare

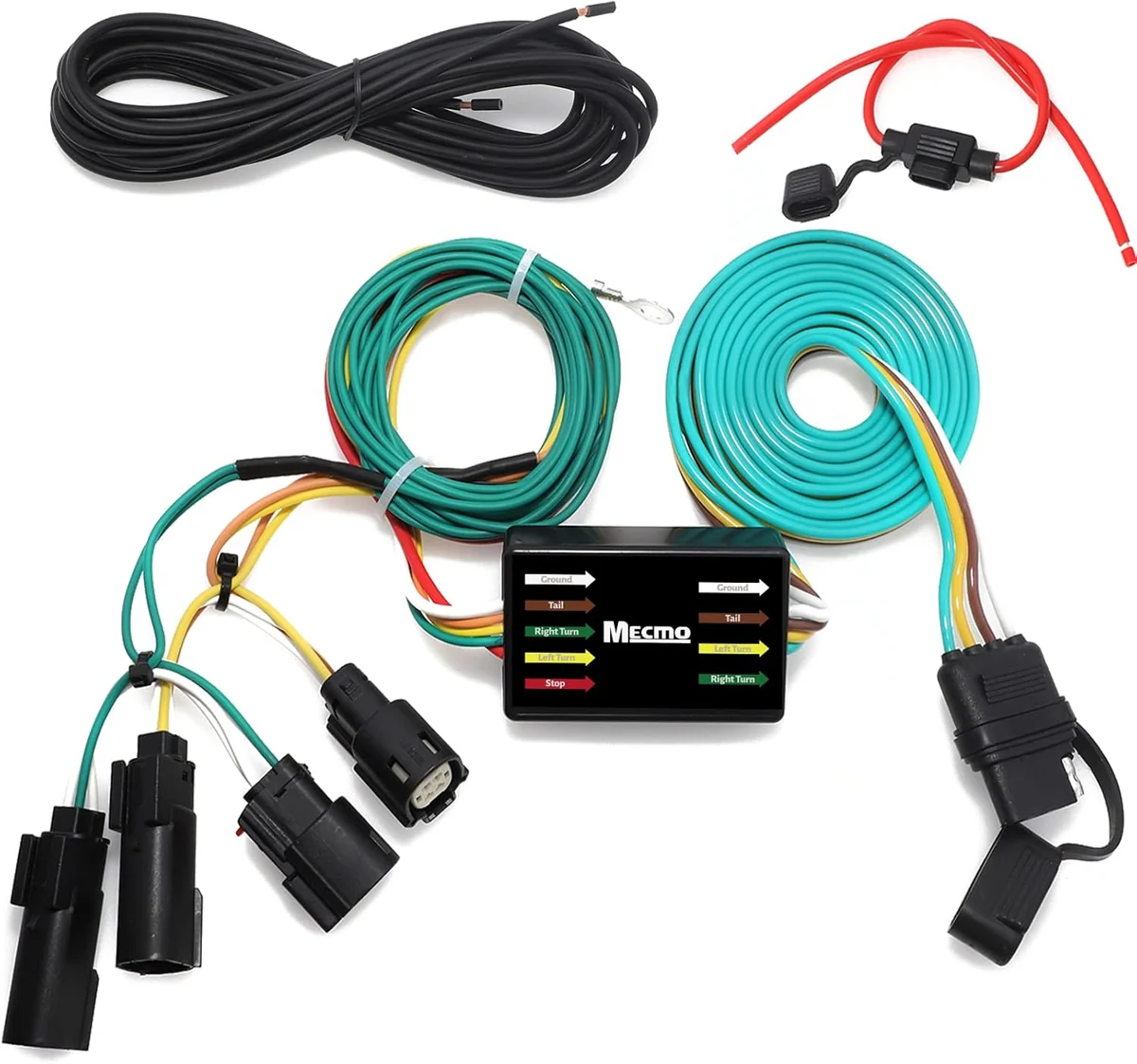

The MECMO harness uses a Transit-specific T-connector layout. The CURT 59236 is a powered universal splice-in converter, so it represents a different wiring method and circuit design rather than another version of the same plug-in loom.
Product
What distinguishes it
Purchase link
CURT 56327 Transit Trailer Wiring Harness
Vehicle-specific harness with four-flat trailer outlet.

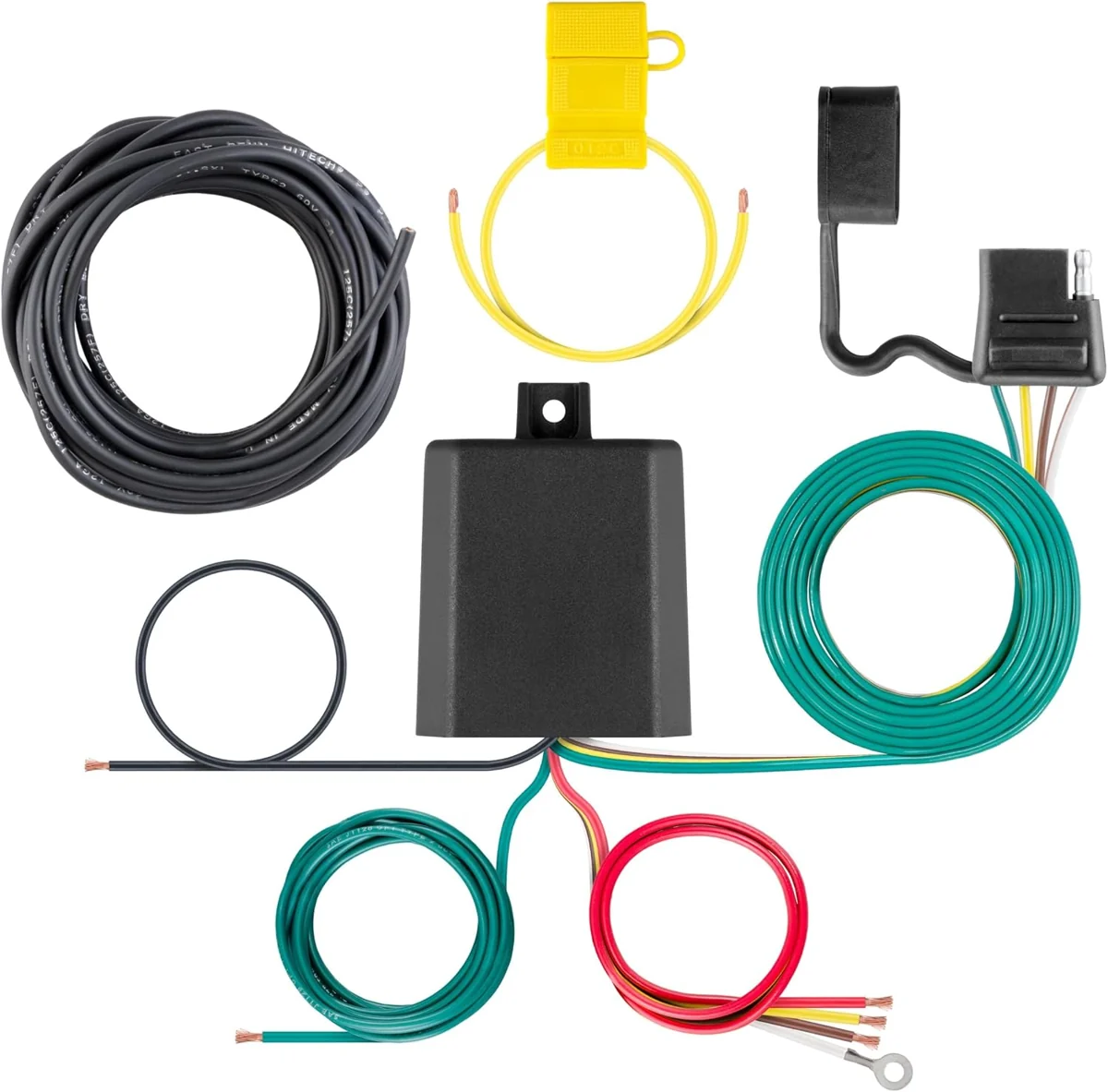

The CURT 59236 combines a powered tail-light converter with a four-flat trailer outlet. Its universal splice-in leads provide a different installation format from a vehicle-specific T-connector harness.
