I used female-thread PVC connectors as nuts on the passenger-front junction-box fittings. This small assembly detail was recorded while joining the box to the route toward the van entry.
The passenger-front box needed pipe fittings as well as a cable gland. The female adapters were included among the materials used to assemble those connections.
Their ordinary fitting shape combines a socket and an internally threaded end. In this part of my build I used the threaded end to hold the male connector at the box.
Using Female-Thread Fittings as Nuts at the Box
I drilled the passenger-front box and installed the male-thread connectors.
I threaded female PVC connectors onto them as nuts and fitted the cable gland.
I cut the pipe toward the large box, prepared the wires and connected the sections.
Another box entry showing the relationship between the pipe and threaded fittings.The passenger-front box and its PVC fittings during my roof-wiring assembly.
My Takeaway from This Job
The distinctive detail was using the female fittings around the mating connectors at the box. The box photograph places that small threaded connection within the longer sequence of drilling, wire preparation and routing.
The female fitting’s threaded end became part of the box-entry attachment arrangement.
Product Details And Van-Build Uses
Specification
Product Detail
Material
PVC
Ends
Slip socket and female pipe thread
Function
Thread-to-socket transition
A female adapter receives a male threaded fitting at one end and a pipe section in the socket at the other. When drawing a small PVC assembly for the van, include the fittings in the overall dimensions rather than adding only the straight pipe lengths. The adapter location can also affect whether a finished assembly can be separated later. Keep its nominal size and thread description together with the pipe record so the matching parts remain identifiable.
The threaded end receives a male fitting. The male adapter has the exposed threaded end instead.
Alternative products
Two Alternatives to Compare

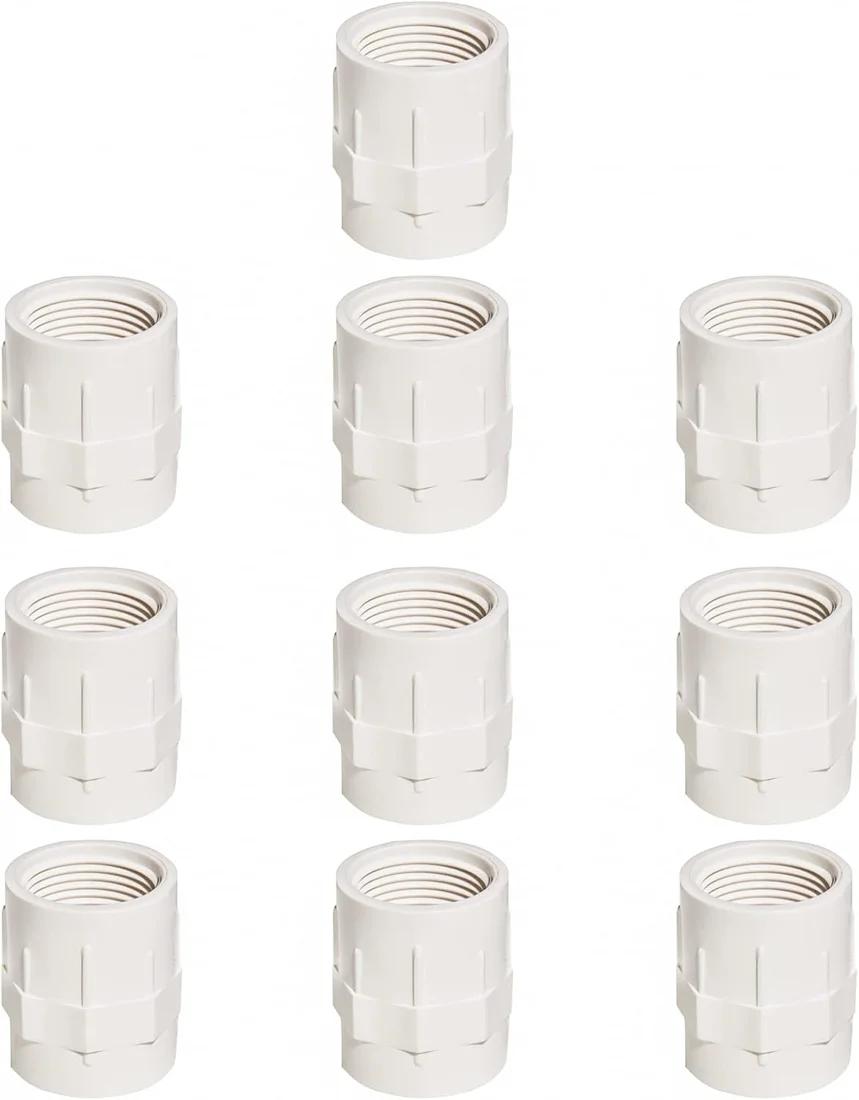

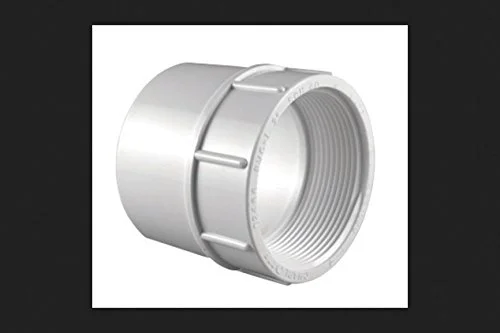

The Charlotte and FangKingNo alternatives both combine a socket with a female pipe-threaded end. Their shaped bodies provide two other examples of this fitting format. In my recorded use, the internally threaded end was the important part of holding the mating connector at the box.
Product
What distinguishes it
Purchase link
Fitvell PVC Female Adapters
Female-thread fittings used as nuts in my recorded assembly
This white PVC adapter combines a slip socket with a female pipe-threaded end. The fitting changes a pipe run from a socket connection to an internally threaded connection.
These white PVC fittings connect a slip socket to a female pipe-threaded end. Their shaped bodies provide another adapter format for joining the two connection styles.
