I reconnected the heater’s fuel-pump wires with two lever connectors after passing the power jack through the factory floor opening. My diary recorded that connection as temporary while the wiring work continued.
The fuel-pump power jack would not pass through the floor route in its original arrangement. I cut the wires so I could move the jack through the factory opening.
The lever-connector kit was included in the materials for that session. It provided the connectors used to rejoin the two wires after routing.
Reconnecting the Leads After Changing the Floor Route
I passed the fuel-pump wires through the drilled factory gasket and floor opening.
I reconnected the wires with two lever connectors.
I attached the wires and sheathing along the fuel line and recorded a plan to replace the connectors with solder-seal connections later.
The fuel-line and wire route beneath the van after the routing work.The two lever connectors beside the fuel-pump wire entry in my van.
My Takeaway from This Job
The connectors let me reconnect the leads after changing their route. The photograph records this stage of the wiring job, while the diary’s later-work plan keeps the connection sequence clear.
Routing the jack through the factory opening came before reconnecting the cut leads.
Product Details And Van-Build Uses
Specification
Product Detail
Connection
Lever-operated wire clamp
Assortment
Several port counts
Storage
Divided kit

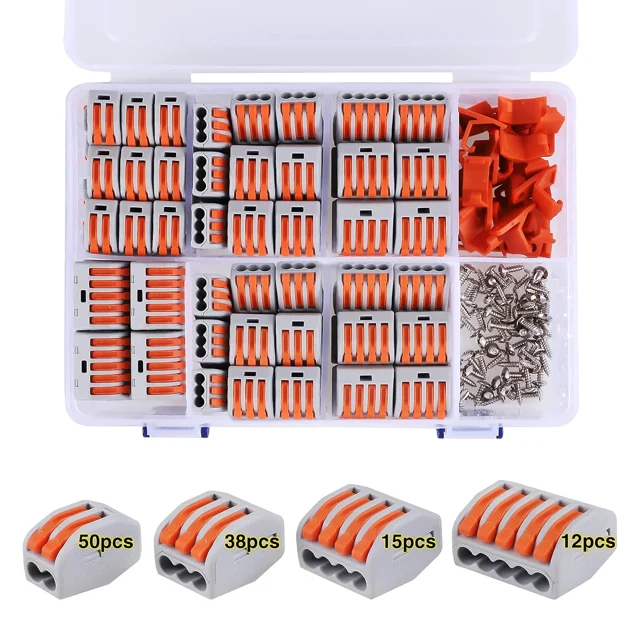

Port count describes how many wire entries a connector provides, making it a useful part of the small-parts inventory. In a van wiring plan, keep the connector's own product information beside the conductor details and the intended connection group. The lever mechanism and wire-entry positions need access inside the enclosure during assembly. Sorting the shapes by port count makes the assortment easier to use when several small connections are being prepared at the same time.
It describes the number of wire-entry positions on the connector. Keep the connector model and conductor details with that count.
Alternative products
Two Alternatives to Compare

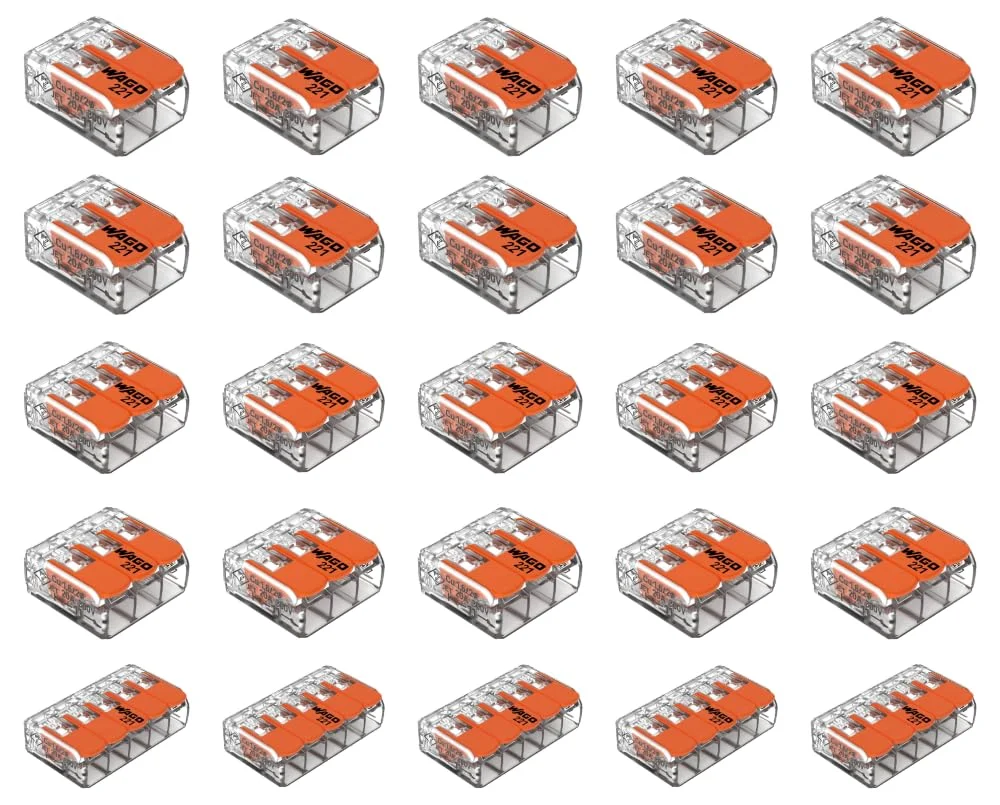

The WAGO 221 assortment includes several port counts, while the IDEAL option uses five-port housings. Both use releasable levers with different grouping arrangements. Port count and housing layout distinguish these alternatives for planning how wire ends are grouped.

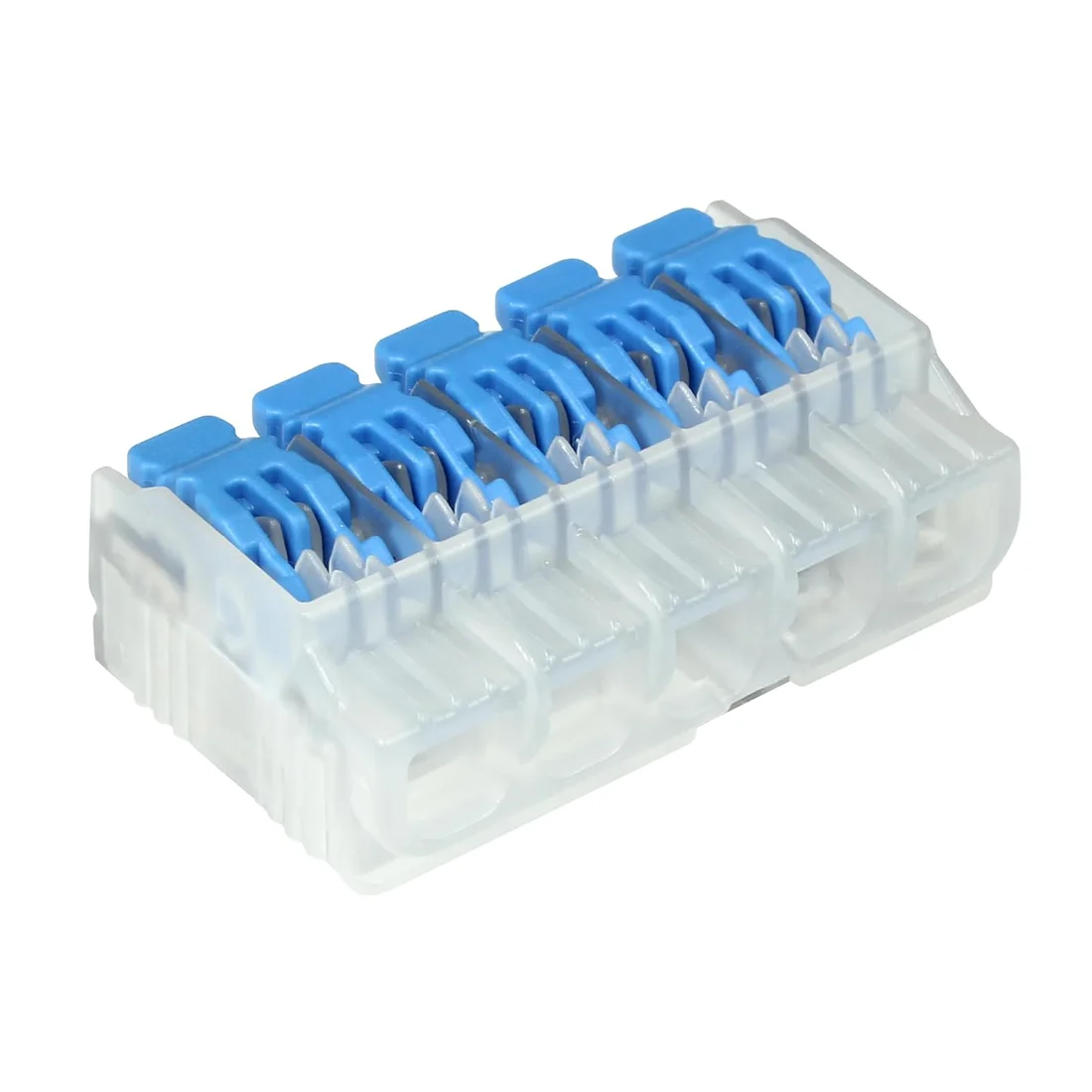

These lever-operated connectors provide five wire-entry ports in each housing. Their releasable levers provide another connector format for grouping wire ends.
