I drilled a small plastic junction box for PVC fittings while joining the roof lights and camera cable routes. That box connected a local group of wires to the larger conduit layout.

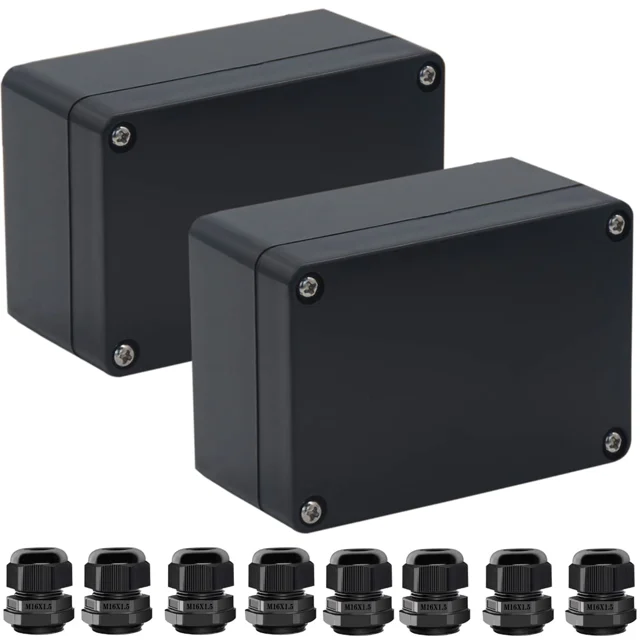

Otdorpatio Small Project Boxes appears in my build materials and equipment for this work.
I drilled a small plastic junction box for PVC fittings while joining the roof lights and camera cable routes. That box connected a local group of wires to the larger conduit layout.
Fitting the Small Box into the Larger Wire Route
I drilled the small plastic box for a male PVC fitting.
I used an internally threaded fitting as a retaining nut during the assembly.
I brought the local wire group toward the larger conduit and van-entry layout.
A grouped roof-wire connection before the final conduit work.The larger roof enclosure during my cable-entry work.
My Takeaway from This Job
The small enclosure had to work with the surrounding fittings and wire path. The open-box photographs show that intermediate arrangement before the remaining covers and conduit joints were finished.
I built the cable route a section at a time, bringing local connections into the larger conduit system.
Product Details And Van-Build Uses
Specification
Product Detail
Format
Small plastic project enclosure
Access
Removable lid
Entries
Separate cable glands or fittings
A small box can gather a local group of wires before that group joins a larger route. In my roof work, I drilled a plastic box for PVC fittings as the light and camera routes came together. Mark the fitting centers on the actual box and compare the space behind them with the lid and screw positions. Keeping that smaller junction identifiable makes the larger roof-conduit drawing easier to follow when several branches meet.
How Does A Small Junction Differ From The Main Box?
It groups a local branch. The larger enclosure gathers the wider set of routes before they enter the van.
Alternative products
Two Alternatives to Compare
The hinged Zulkit box changes the lid arrangement, while the other Zulkit enclosure provides another removable-cover format. Overall size and the space needed around the fittings distinguish the options.
Product
What distinguishes it
Purchase link
Otdorpatio Small Project Boxes
Small removable-cover box in my roof-route supplies
This ABS project box has a hinged lid and included cable glands. It offers a smaller enclosure format with a different access arrangement from a removable-lid box.
This ABS project enclosure provides space for housing components and cable connections. Its reserved entry locations offer another layout for fitting conduit adapters and cable glands.
