Sealproof Single-Gang Box: My Roof Wiring Junctions
The small metal boxes sat along the individual roof-wire runs, separate from the large enclosure at the van entry. I arranged their fittings, cable glands and PVC sections as the route developed.
I put the metal boxes together, drilled openings for cable glands and brought wires through their entries. The pipe lengths and connectors were fitted around each location as the route took shape.
Later work included the passenger-front box, threaded PVC connections and the run toward the larger junction enclosure. The photos show both the small-box mounting arrangement beside the extrusion and the cable-entry fittings.
The box and its mounting arrangement beside the roof-rack extrusion.
Arranging Each Small Roof-Wiring Box
I drilled openings in the metal boxes for the cable glands.
I fitted the PVC connectors and brought the wires through the entries.
I added covers as the pipe and wiring route came together.

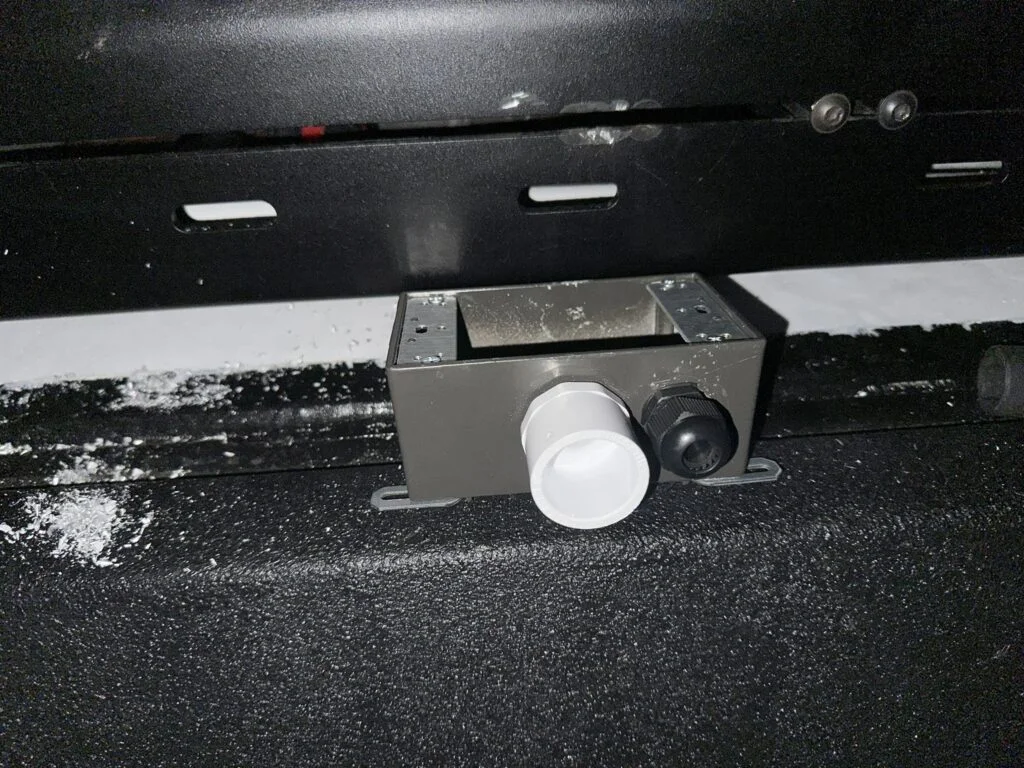

A small metal junction box with cable-entry fittings along my roof route.
My Takeaway for Choosing the Kit
My choice would start with the route entering and leaving the box, rather than the single-gang label alone. Sealproof, BELL and Sigma provide compact metal formats with threaded entries; Sigma’s listed option has three entries. The room around those openings and the fitted connectors mattered throughout my roof assembly.
Product Details And Van-Build Uses
Specification
Product Detail
Format
Single-gang metal enclosure
Entries
Threaded openings
Build Use
Conduit and cable junctions
The single-gang box connects a compact enclosure with several threaded entry positions. In my roof work, boxes and fittings developed together as the separate routes were joined. A useful layout identifies the occupied openings and shows the direction of each connected conduit section. Keep the cover outline and the space inside the enclosure visible on that sketch. That connects the selected box to the actual fittings rather than treating every single-gang enclosure as the same shape.
Identify the fitting and route at that opening, together with its direction into or out of the box.
Alternative products
Two Alternatives to Compare
The BELL and Sigma 14250 alternatives are other single-gang metal box designs with threaded entries. Compare the entry arrangement and available interior space with the fittings in a planned route. Those layout details were central to how I assembled the small boxes in my build.
Product
Why compare this option
Purchase link
Sealproof Single-Gang Electrical Box
Single-gang metal box listed in my roof-routing materials.

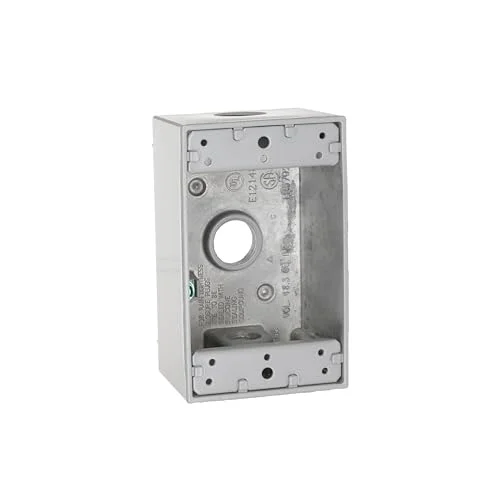

This metal electrical box has threaded entries for conduit connections. Its single-gang format offers another compact enclosure for assembling cable routes and connection points.

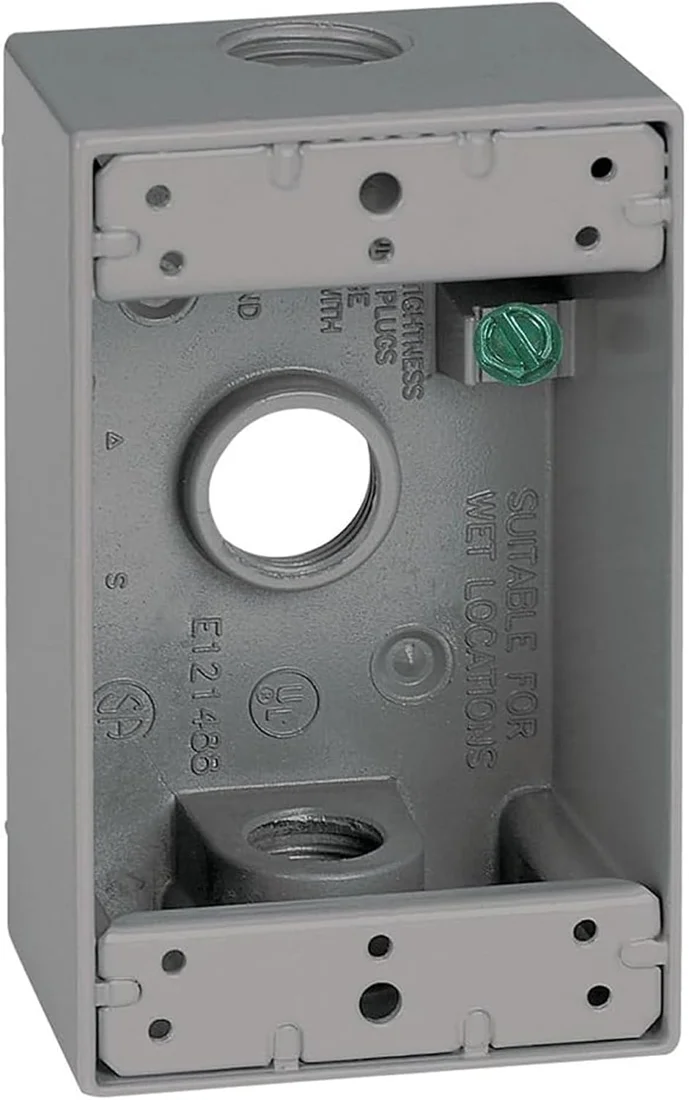

This single-gang metal electrical box includes three threaded entry openings. It provides another compact box format for conduit and cable-entry fittings.
