The solar connection parts in my purchases sit alongside a much broader roof-wiring project. My photographs show how I arranged the roof equipment's cable routes and brought them toward a common entry into the van.
I bought Spartan Power Solar T-Branch Connectors as part of my camper van equipment.
The solar connection parts in my purchases sit alongside a much broader roof-wiring project. My photographs show how I arranged the roof equipment's cable routes and brought them toward a common entry into the van.
Comparing Rigid Branches with Flexible Branch Leads
I arranged roof-device wiring into local routes and shared entry boxes.
I brought the camera and light leads toward the van through the conduit layout.

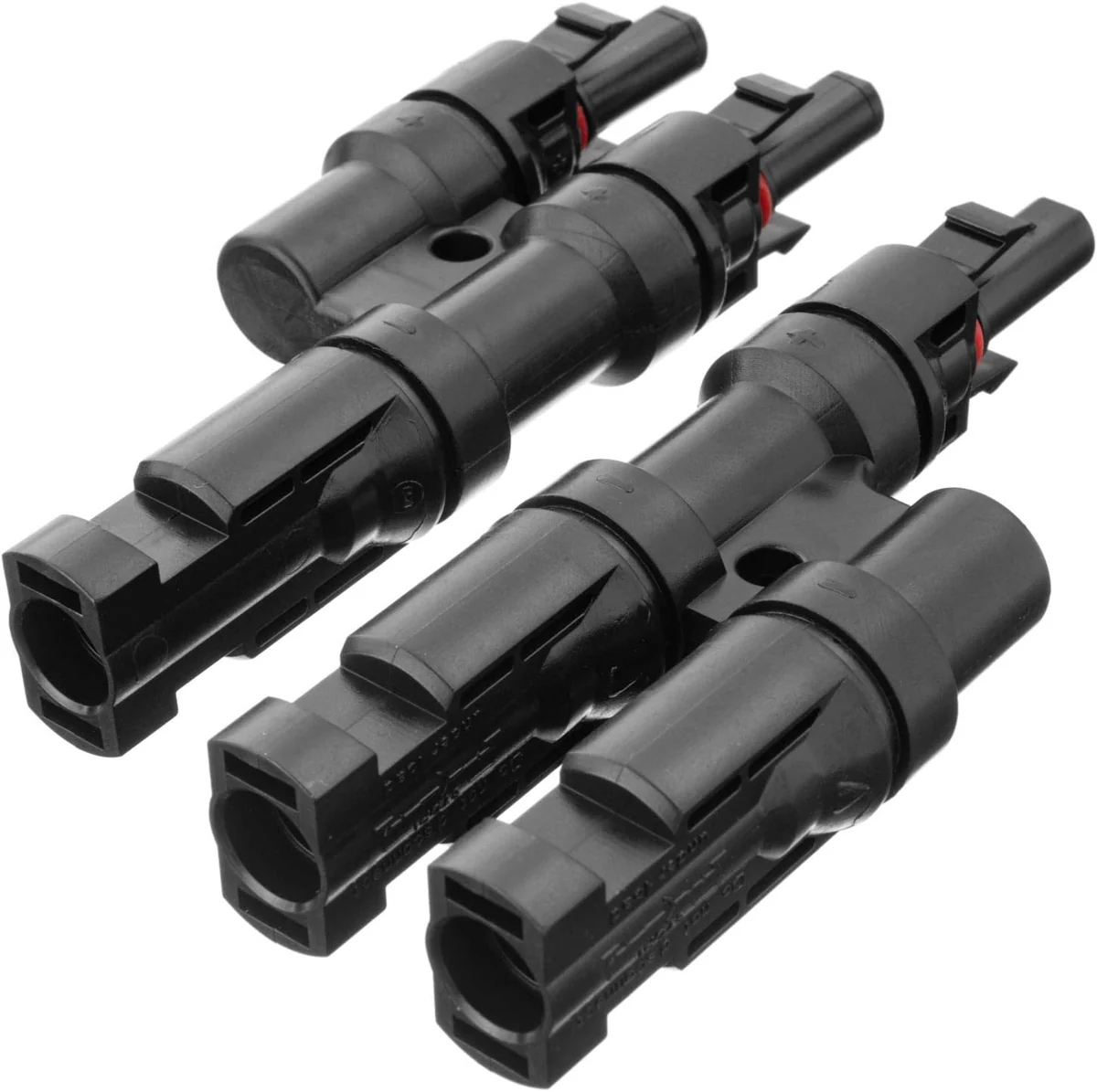

My separate solar purchases included paired T-branch connectors.
A grouped roof-wire connection before the final conduit work.The larger roof enclosure during my cable-entry work.
My Takeaway from This Job
Branch shape changes the space taken up by the connector group. Spartan Power uses rigid T bodies, Renogy separates the ends with flexible leads, and BougeRV provides another paired branch-body layout.
Rigid branch bodies and flexible branch leads occupy space differently.
Product Details And Van-Build Uses
Specification
Product Detail
Shape
Rigid T-branch connector pair
Arrangement
Two branches to one
Ends
Male and female connector combinations
The T-branch pair brings two cable branches together on each polarity. Label the panel branches before they reach the connectors and keep the positive and negative paths distinct on the drawing. The rigid bodies occupy space differently from a flexible Y lead, particularly when the wiring lies beside a roof rail or panel frame. For a van solar layout, include the connector bodies and cable exits so the panel plan and wiring plan fit the same roof space.
It describes the branch arrangement at each connector, joining two cable branches into one route.
Alternative products
Two Alternatives to Compare

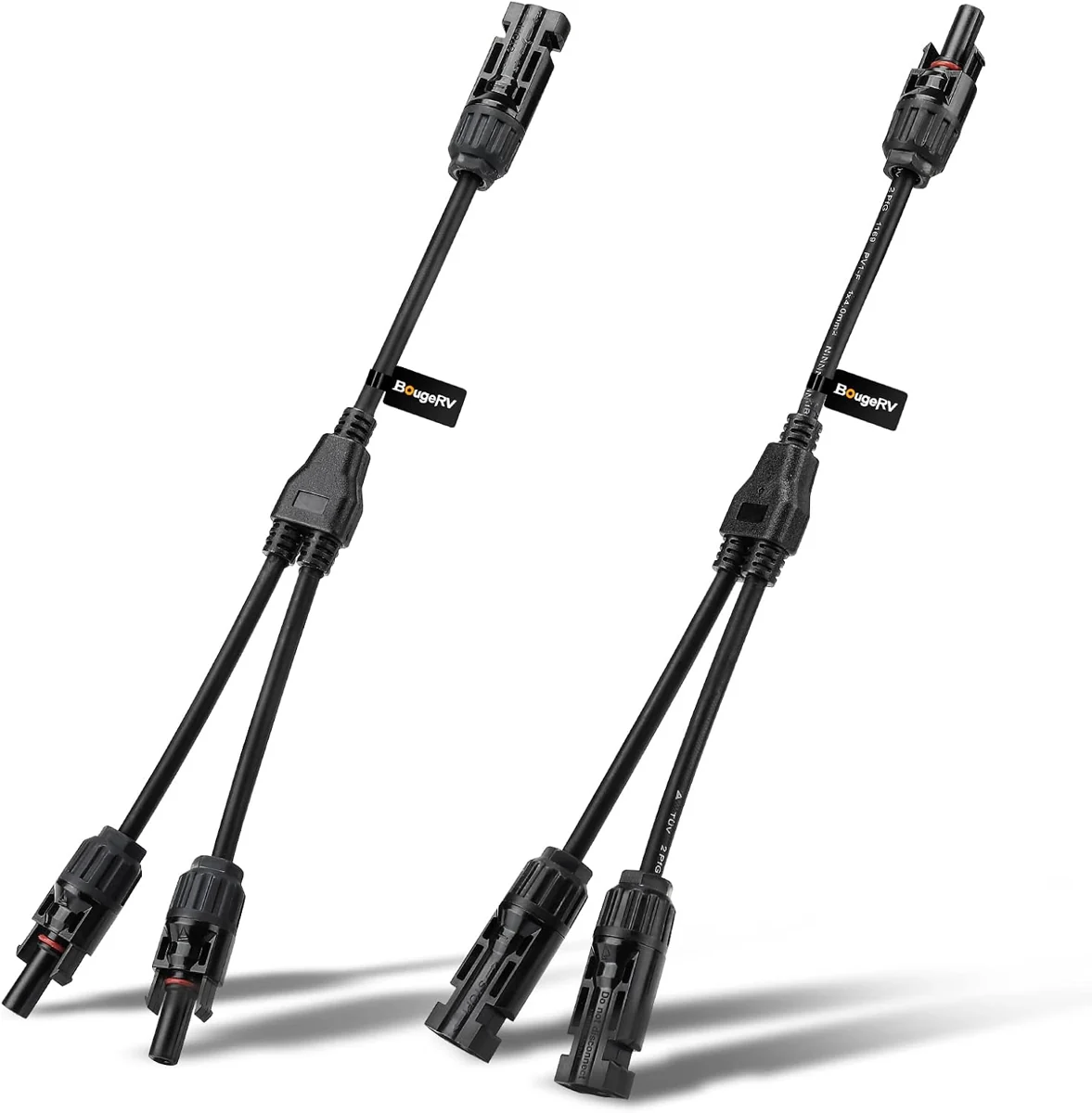

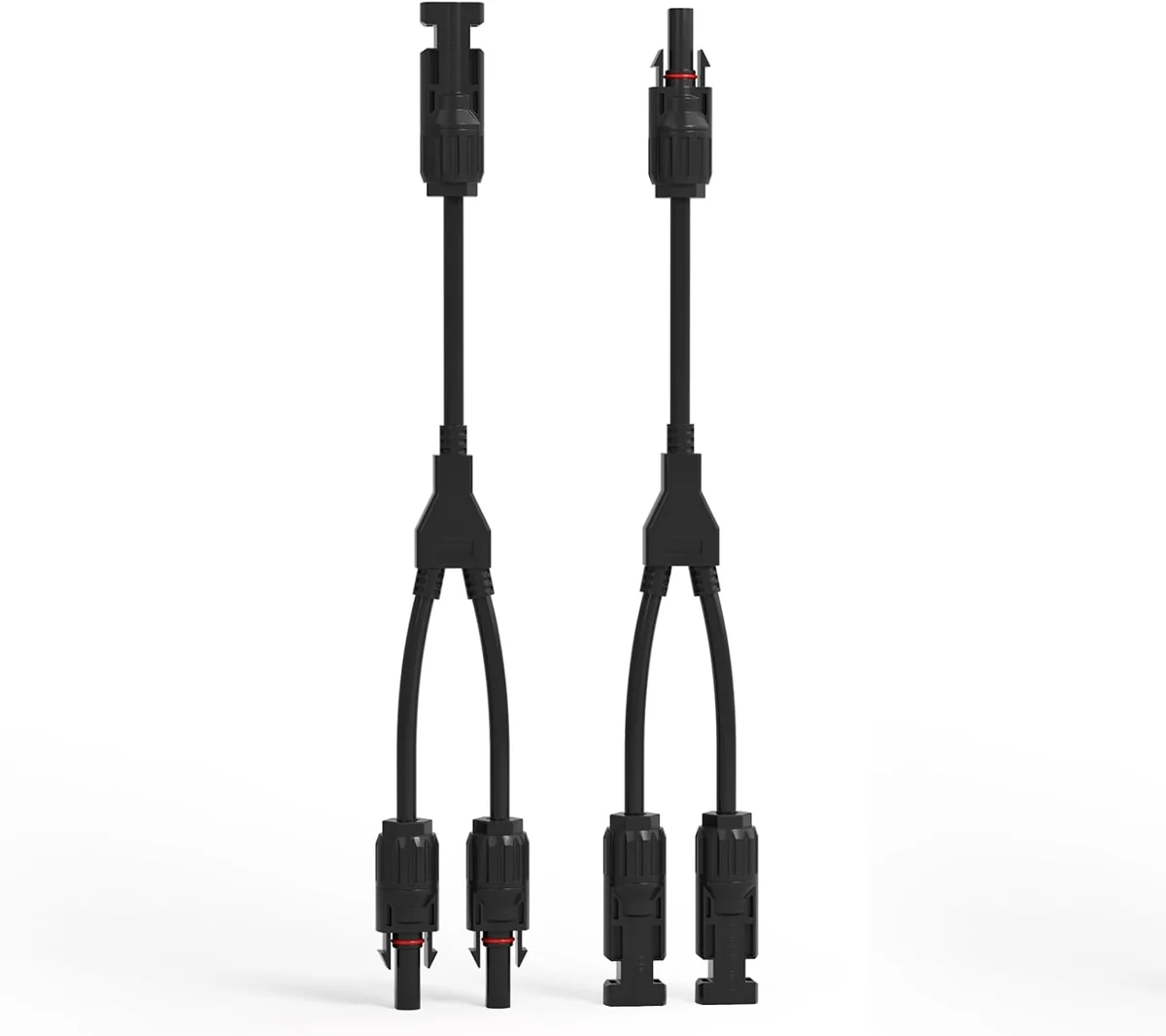

Renogy uses flexible Y-branch leads, while BougeRV offers another Y-branch connector set; the space taken up by flexible leads and rigid connector bodies differs.
These paired branch connectors combine solar cable connections into a parallel branch arrangement. Male and female ends are grouped in complementary connector bodies.
