This Trisinger purchase belongs to the solar connection supplies in my kit. The roof diary documents the wider cable-routing project, including the junction boxes and conduit leading into the van.
I bought Trisinger 20A Inline Solar Fuse Holder as part of my camper van equipment.
This Trisinger purchase belongs to the solar connection supplies in my kit. The roof diary documents the wider cable-routing project, including the junction boxes and conduit leading into the van.
Comparing the Holder Around the Inline Solar Connection
My solar connection supplies formed a separate part of the electrical purchases.
The roof diary follows the physical route through glands, boxes and conduit.

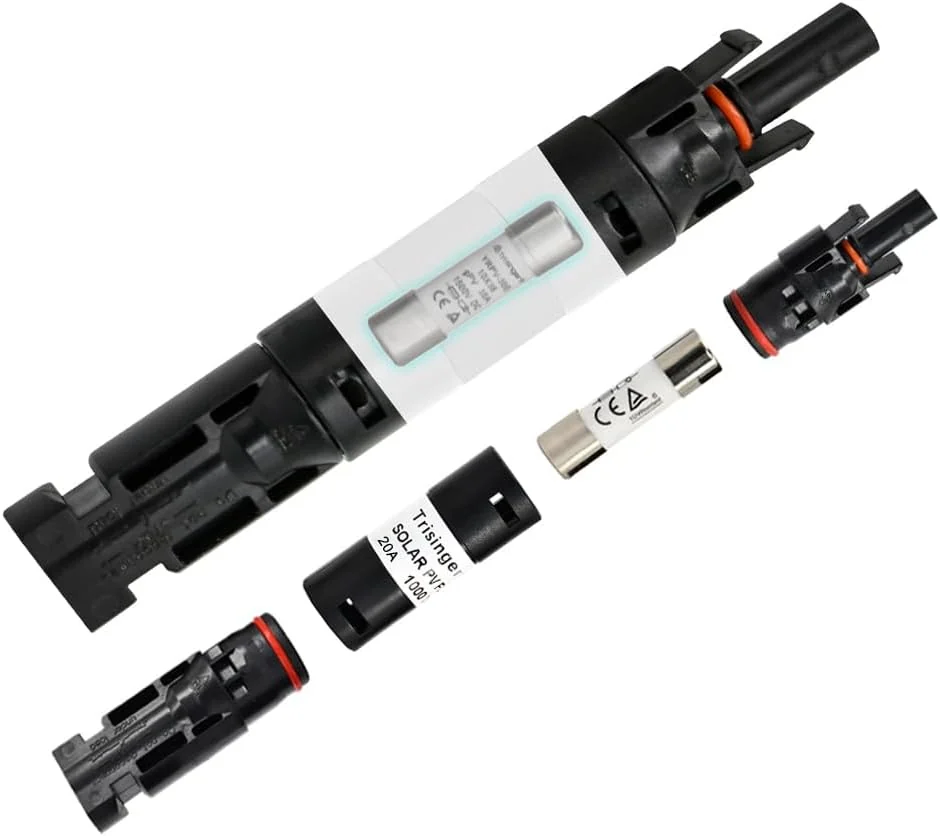

The Trisinger purchase added an inline connector body supplied with a twenty-amp fuse.
A grouped roof-wire connection before the final conduit work.The larger roof enclosure during my cable-entry work.
My Takeaway from This Job

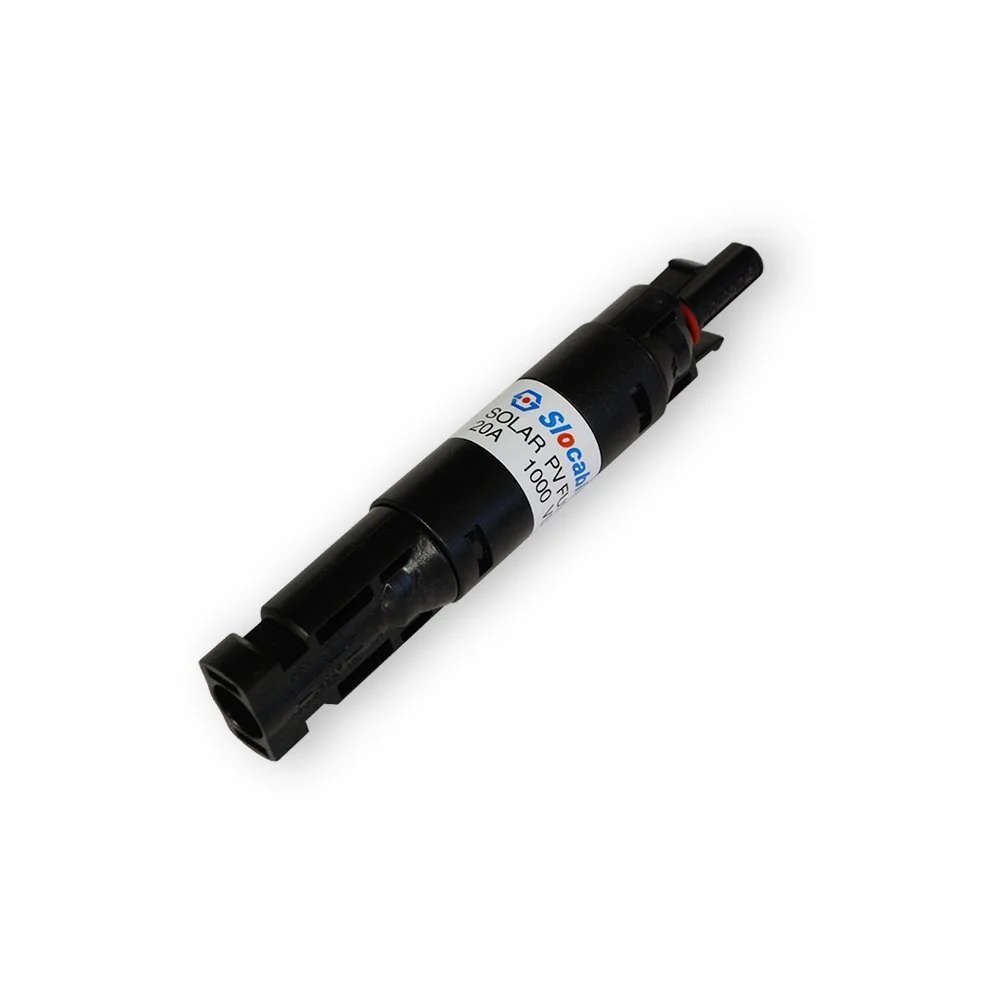

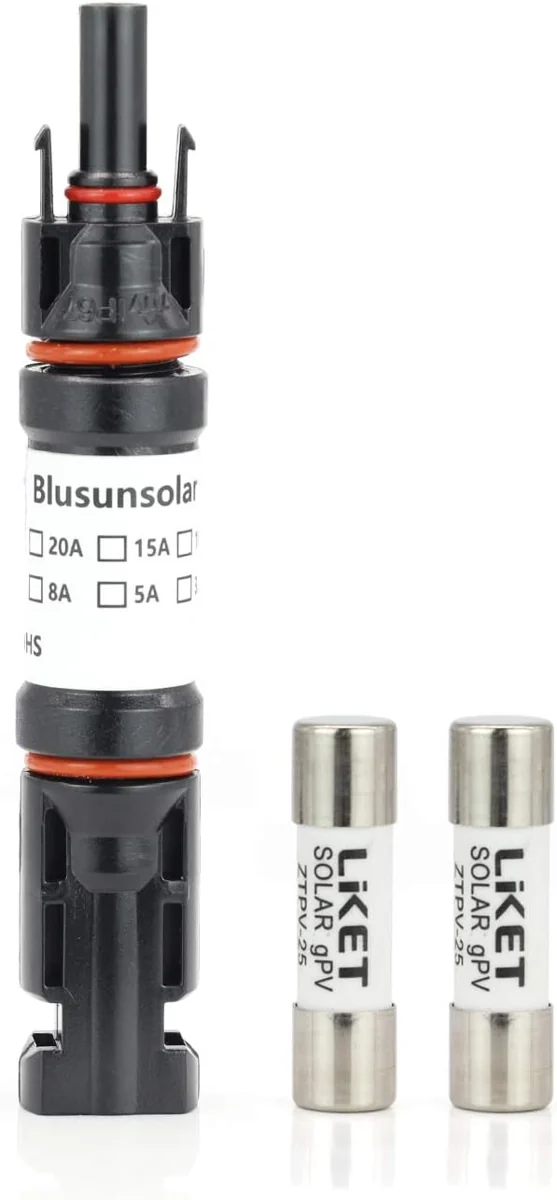

The three products keep the supplied twenty-amp fuse within an inline solar-connector body. Their molded housings and connector details are the comparison points within that shared format.
Compare the molded holder body within the shared inline format.
Product Details And Van-Build Uses
Specification
Product Detail
Fuse
20 A cartridge
Format
Inline connector body
Ends
Male and female solar connectors
The holder adds a fuse body to the cable route rather than placing the fuse inside a separate combiner enclosure. Include that body in the drawing, leaving its location identifiable after the wiring is arranged around the panels. The connector ends and the cartridge inside are separate details in the parts record. For a van roof layout, record the exact holder reference with the branch label so the component can be located without tracing every cable from the beginning.
