Square D Seven-Terminal Ground Bar

The ground bar is one of the smaller electrical parts in my purchase list, alongside the load-center enclosure and breakers.

By · Camper Van Freedom

Read my build notes ↓

The Item in My Kit

I bought Square D Seven-Terminal Ground Bar as part of my camper van equipment.

The ground bar is one of the smaller electrical parts in my purchase list, alongside the load-center enclosure and breakers.

Terminal Count Within the Enclosure Plan

  1. I used SketchUp to plan the interior and put body openings ahead of the framing, floor and wall panels.
  2. My Interior Preparation notes included the shower drain and openings for three water tanks in that preparation sequence.
  3. I removed cargo tie-down hardware for later framing mounts and door trim for the later insulation and paneling.
The cargo floor during my preparation session before sound deadening.
The cargo floor during my preparation session before sound deadening.
Removing stuck-on residue during the floor cleanup.
Removing stuck-on residue during the floor cleanup.
Square D Seven-Terminal Ground Bar

My Takeaway for the Build

My interior preparation put equipment access ahead of the finished panels. For the ground-bar purchase, the useful comparison is the number of connections and the length of the bar inside the enclosure. The nine- and twenty-three-terminal alternatives change both, making connection count a separate decision from the box outline.

Product Details And Van-Build Uses

SpecificationProduct Detail
Catalog NumberPK7GTA
TerminalsSeven
TypeLoad-center ground-bar accessory

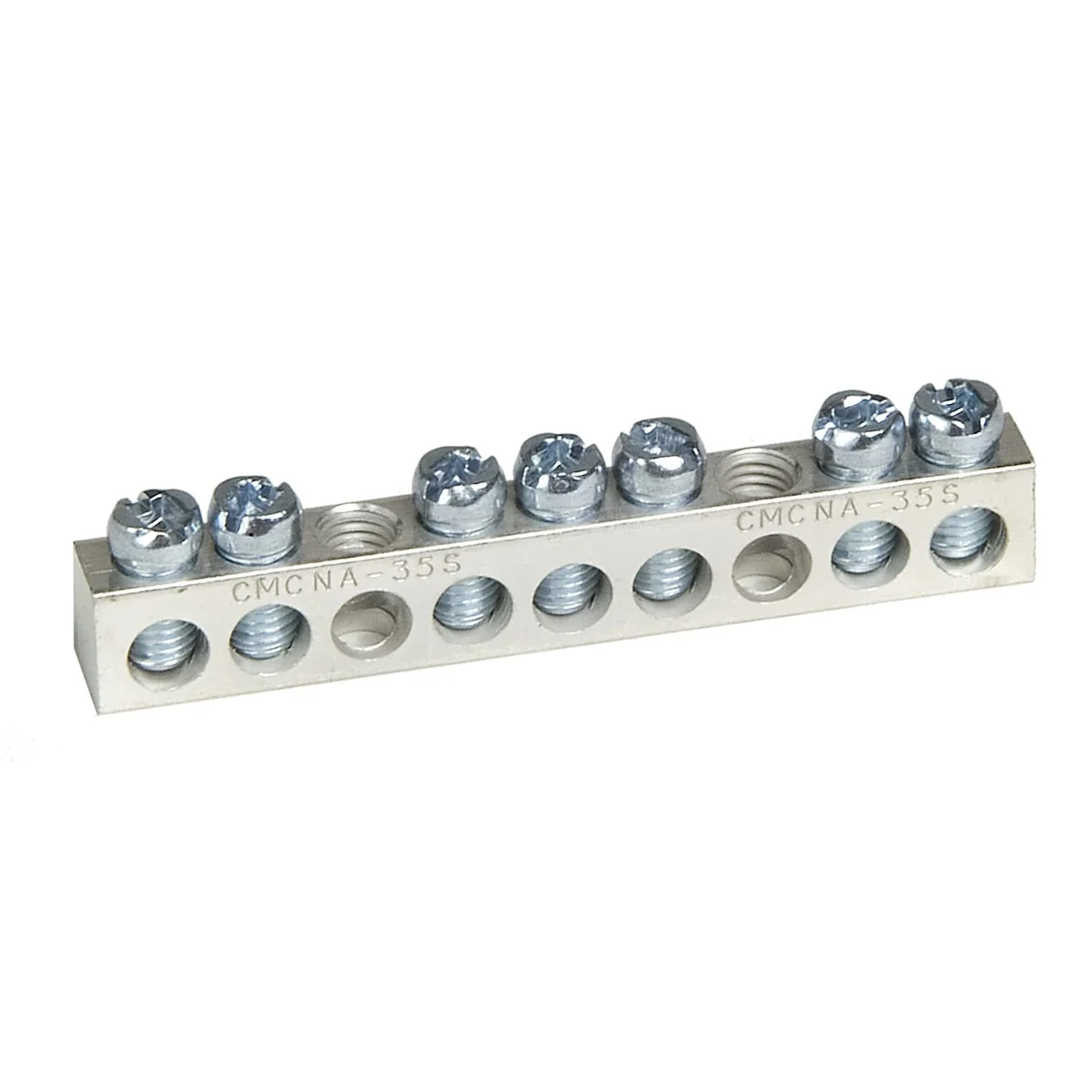

The PK7GTA is a seven-terminal ground-bar accessory in the Square D QO and Homeline product references. Schneider's manufacturer resource identifies this kit and links its installation instructions. Keep the exact enclosure identification with that reference when documenting a parts layout. For a van equipment record, distinguishing this enclosure accessory from the positive and negative distribution bars elsewhere in the kit makes the component list clearer and keeps similar-looking metal terminal strips from being grouped under one name.

Read PK7GTA Manufacturer Instructions Resource

Related Build-Kit Reference: Twelve-Position Terminal Block Set

Where Are The Original Instructions?

The linked Schneider Electric resource identifies PK7GTA and links the original instruction sheet.

Alternative products

Two Alternatives to Compare

The PK9GTA and PK23GTACP provide different terminal counts and bar lengths. They illustrate how the same general grounding-bar format changes with enclosure layout and connection count.

ProductWhat distinguishes itPurchase link
Square D Seven-Terminal Ground BarCompact seven-terminal accessory bar.View on Amazon
Square D Nine-Terminal Ground Bar (alternative)Nine terminal positions on a screw-connection bar.View on Amazon
Square D Twenty-Three-Terminal Ground Bar (alternative)Longer bar with twenty-three terminal positions.View on Amazon
Square D Nine-Terminal Ground Bar

Square D Nine-Terminal Ground Bar

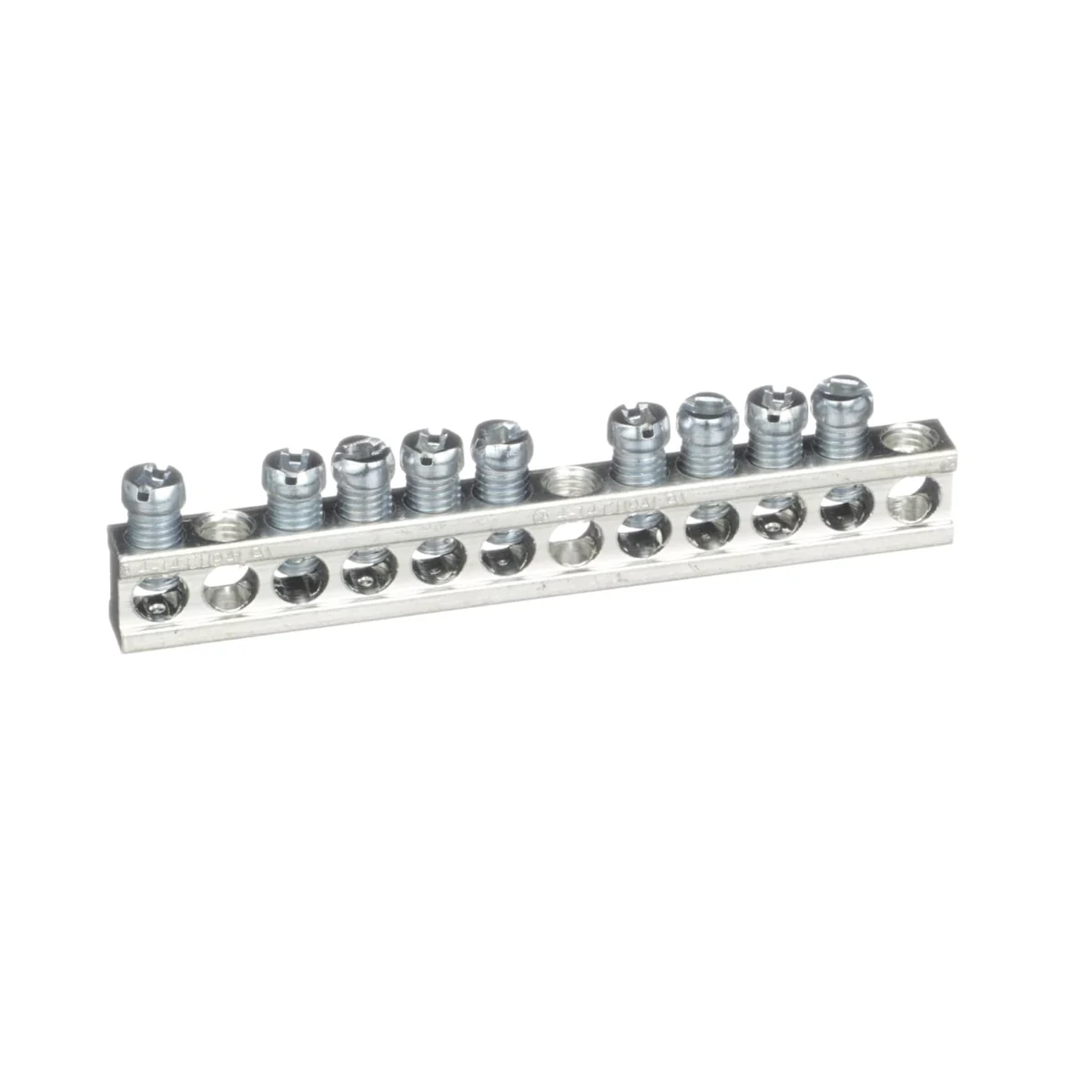

The PK9GTA is a grounding-bar accessory with nine terminal positions. Individual screws secure the conductors along the metal bar.

View on Amazon
Square D Twenty-Three-Terminal Ground Bar

Square D Twenty-Three-Terminal Ground Bar

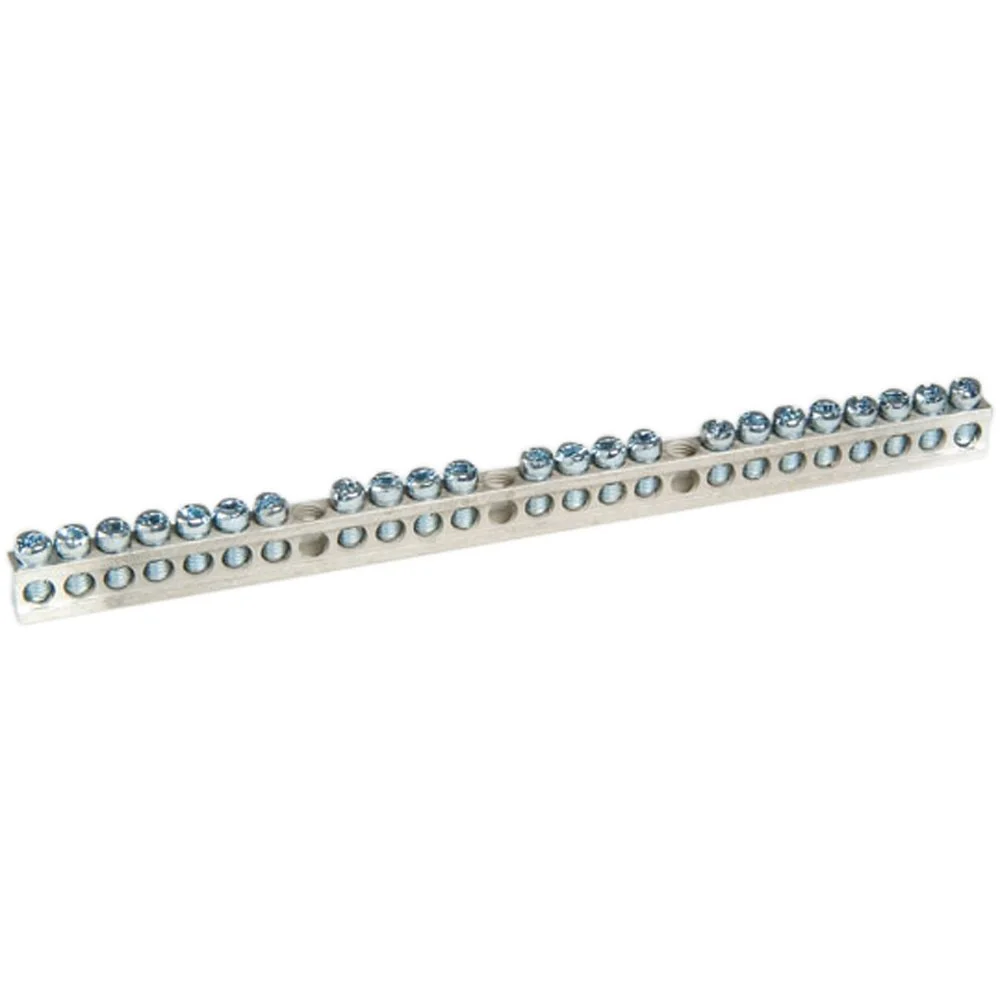

The PK23GTACP provides twenty-three grounding terminal positions. Its longer bar creates a row of screw connections inside the enclosure.

View on Amazon
