I bought VictorsHome LW28-63 Changeover Switch as part of my camper van equipment.
The changeover switch belongs to my purchased control hardware. The diary photographs show my actual work organizing device wiring around boxes and entry points before the routes came into the van.
Comparing the Selector Positions and Contact Body
I pulled the roof cables through the PVC route with fish tape.
I fitted plastic trim around the roof opening where the wires entered the van.
I completed the remaining light connections, covered the boxes and joined the final conduit sections.
The roof at the end of my Roof Wiring and Devices Project Day 8 wiring session.The trimmed roof opening where my cable groups enter the van.
My Takeaway from This Job
These selectors all use three positions, but the original has twelve terminals and the alternatives eight. Their current classes also differ, so the terminal arrangement and model designation remain visible alongside the common rotary action.
Product Details And Van-Build Uses
Specification
Product Detail
Model
LW28-63
Selector
Three positions
Connections
Twelve terminals

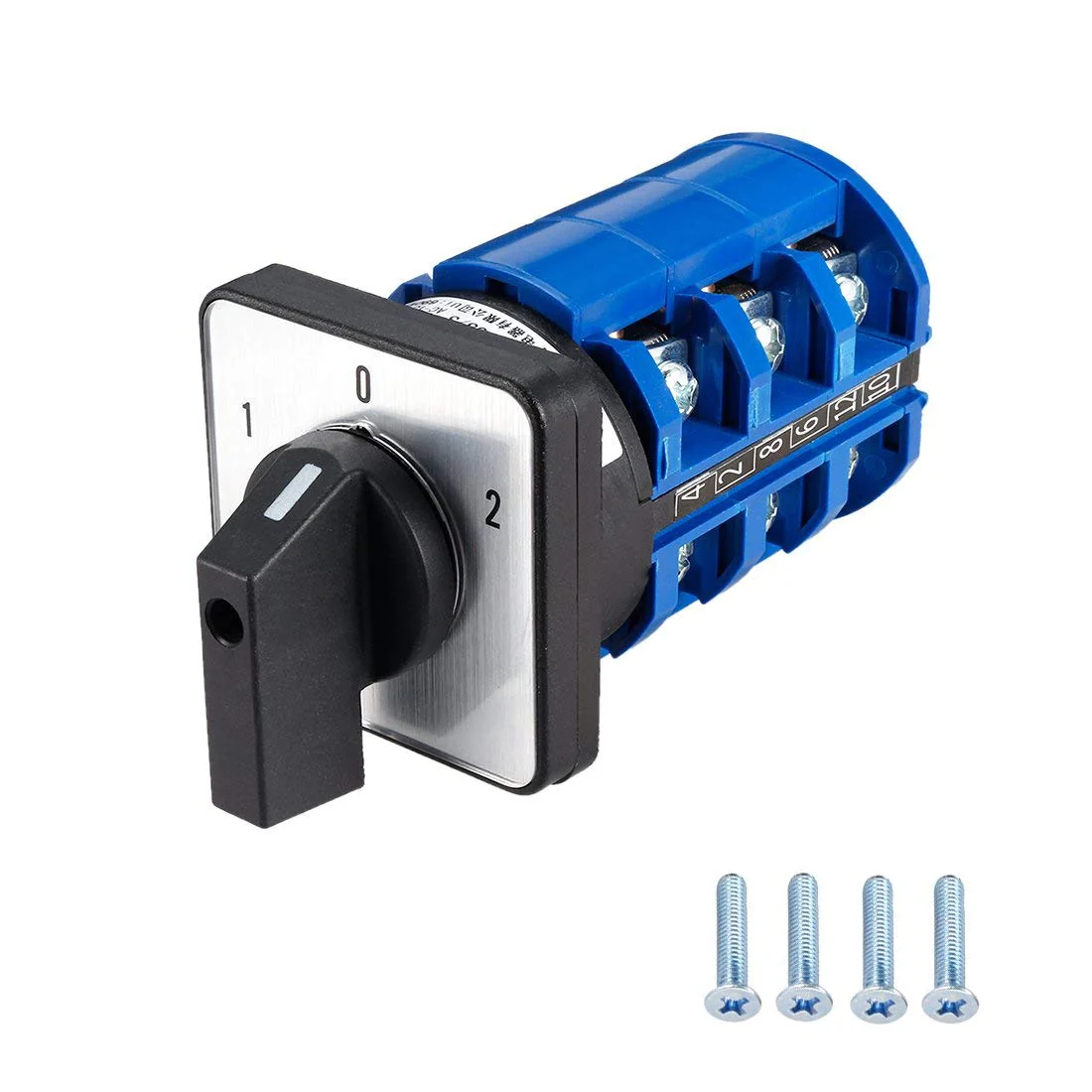

The front selector and stacked contact body need to be shown together in the panel drawing. Record the actual terminal identifiers and the selected position labels rather than inferring the internal connections from the handle alone. In a van equipment layout, reserve rear space for the terminal screws and arriving leads. Keeping the exact purchased variant with that drawing distinguishes it from other rotary switches that share a similar front handle but use different contact arrangements.
Does The Handle Position Describe Every Internal Contact?
No. Keep the exact terminal and contact arrangement with the model record instead of inferring it from the handle.
Alternative products
Two Alternatives to Compare

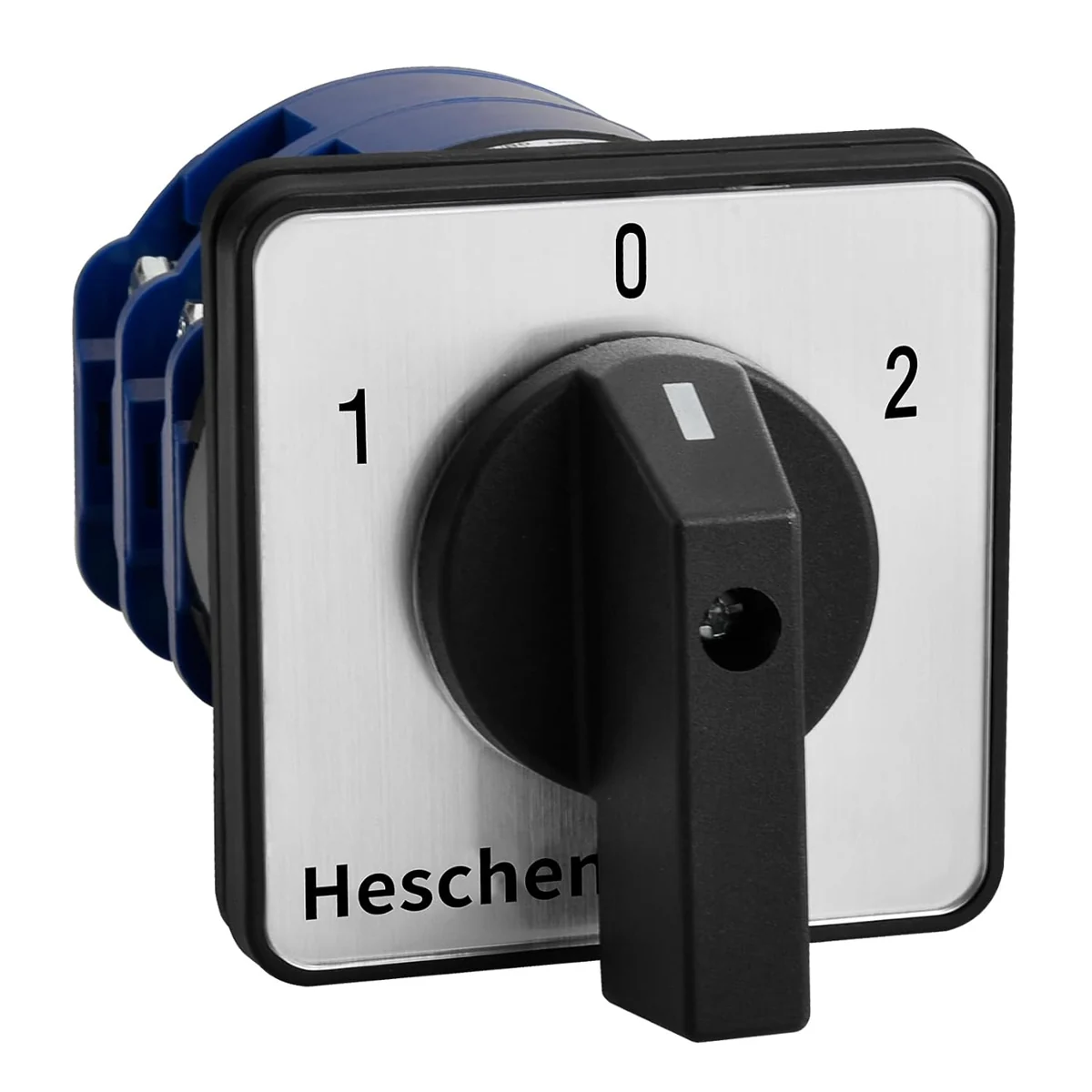

The Heschen 125A and VictorsHome 20A alternatives use eight-terminal bodies, changing both terminal layout and current class from the purchased twelve-terminal switch.
