I bought this single-style terminal pack among the van's wiring consumables. A box of one terminal type is organized differently from the mixed connector assortments elsewhere in my kit.

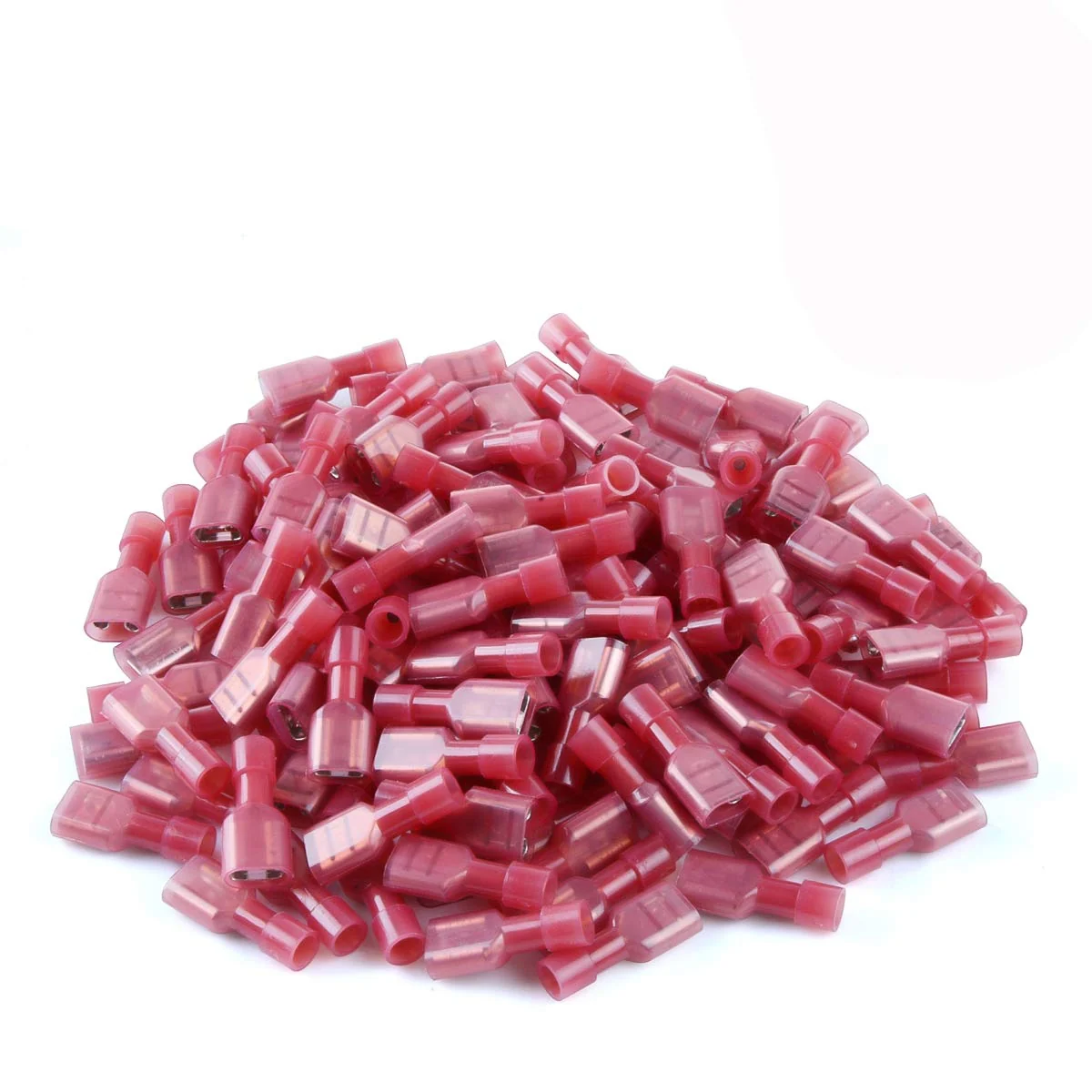

I bought XHF Red Female Spade Terminals as part of my camper van equipment.
I bought this single-style terminal pack among the van's wiring consumables. A box of one terminal type is organized differently from the mixed connector assortments elsewhere in my kit.
Stocking One Terminal Shape or a Mixed Connector Box
I drilled roof junction boxes for threaded fittings and cable glands.
I brought the light-wire groups and camera lead through their entries toward the larger box.
I joined the local routes into the PVC conduit path leading into the van.
A grouped roof-wire connection before the final conduit work.The larger roof enclosure during my cable-entry work.
My Takeaway from This Job
The XHF pack repeats a female spade terminal rather than mixing several shapes. TICONN broadens the terminal selection, while Wirefy pairs male and female spades with heat-shrink insulation, changing both the contents and insulation format.
Product Details And Van-Build Uses
Specification
Product Detail
Connection
Female push-on spade
Wire Range
22–16 AWG
Insulation
Red nylon body
The wire barrel and the push-on end describe different parts of a spade terminal. Keep the recorded wire range with the barrel and compare the mating tab separately. For a van device lead, label the connection at the switch or component as well as the cable route. The nylon body covers the connector assembly, but its color alone is not a complete parts description. Retaining the exact terminal reference helps separate these pieces from ring terminals and butt splices.

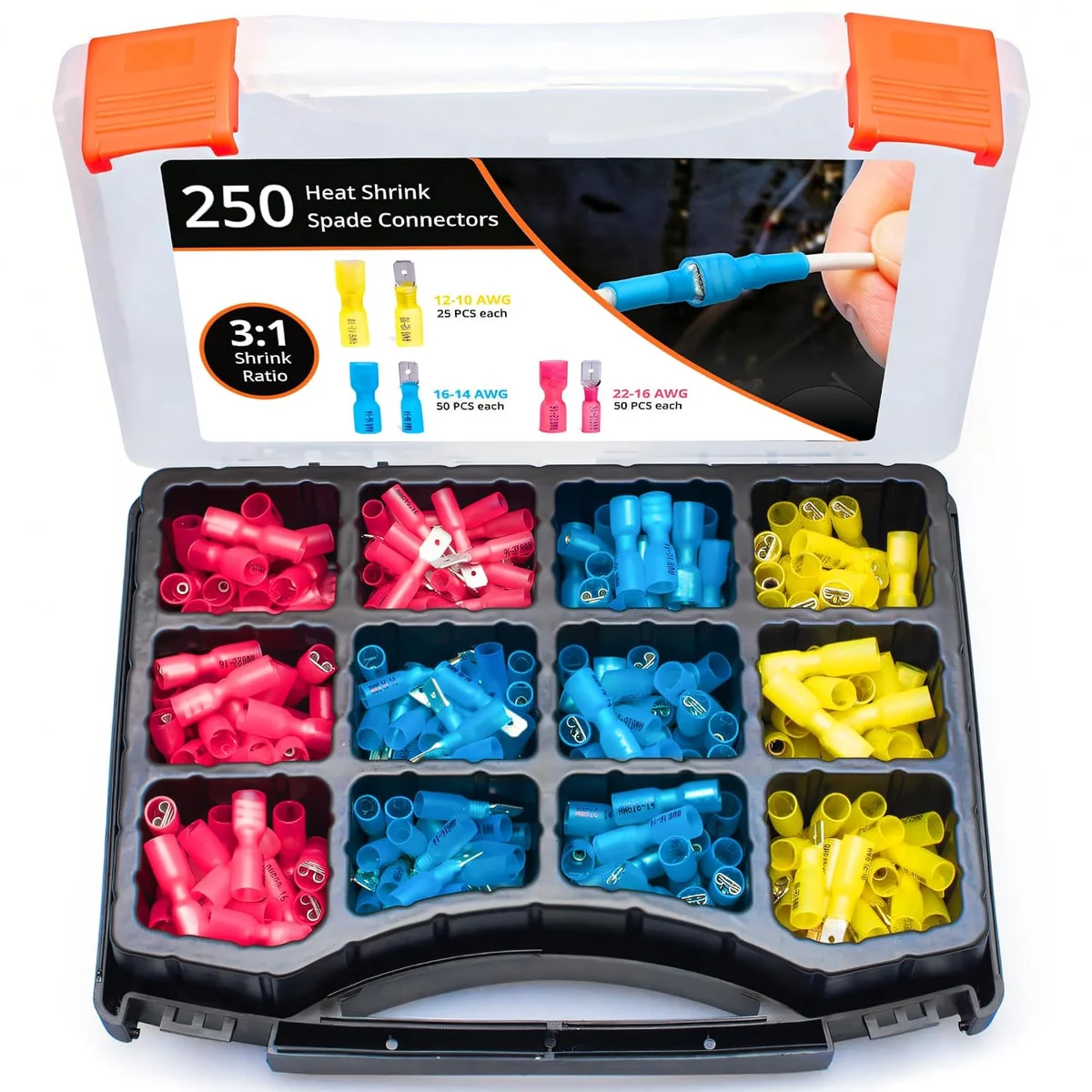

This terminal assortment includes several crimp-connector shapes with heat-shrink sleeves. The grouped pieces provide options for joining wires and attaching leads to terminals.
