Air outlets are visible trim as well as duct components. My passenger-seat-platform photographs show the separate cover-building work where the shape and placement of an opening became part of the finished panel.
I bought Garneck Sixty-Millimeter Round Air Vents as part of my camper van equipment.
Air outlets are visible trim as well as duct components. My passenger-seat-platform photographs show the separate cover-building work where the shape and placement of an opening became part of the finished panel.
A Round Outlet Beside the Heater-Cover Work
I cut the heater-cover front and triangular sides from black aluminum composite sheet.
I joined the panels with brackets and self-tapping screws.
I fitted the cover around the angled seat platform, where drilling access affected the screw positions.
My black composite cover panel during the heater-cover work.The cover and vent arrangement behind the passenger seat.
My Takeaway for the Build
The heater-cover front was cut to fit the angled passenger-seat platform, making the outlet opening part of the panel layout. My Garneck purchase supplies two adjustable round vents. The alternatives change pack count and louver control, useful details when comparing both the visible face and the body behind the panel.
Product Details And Van-Build Uses
Specification
Product Detail
Format
Round adjustable outlet
Nominal size
60 mm
Purchased pack
Two outlets
A round outlet needs room behind the visible face as well as a neat opening in the panel. Before marking a cover, place the vent beside the intended duct route and check the space behind its body. Make a cardboard layout of the face, fastener positions and surrounding edges. This is useful for a removable heater cover because the outlet and the cover fasteners share a limited area. The adjustable louvers then provide directional control at the finished face.
No. Allow for the body behind the panel, the duct connection and access to nearby fasteners.
Alternative products
Two Alternatives to Compare

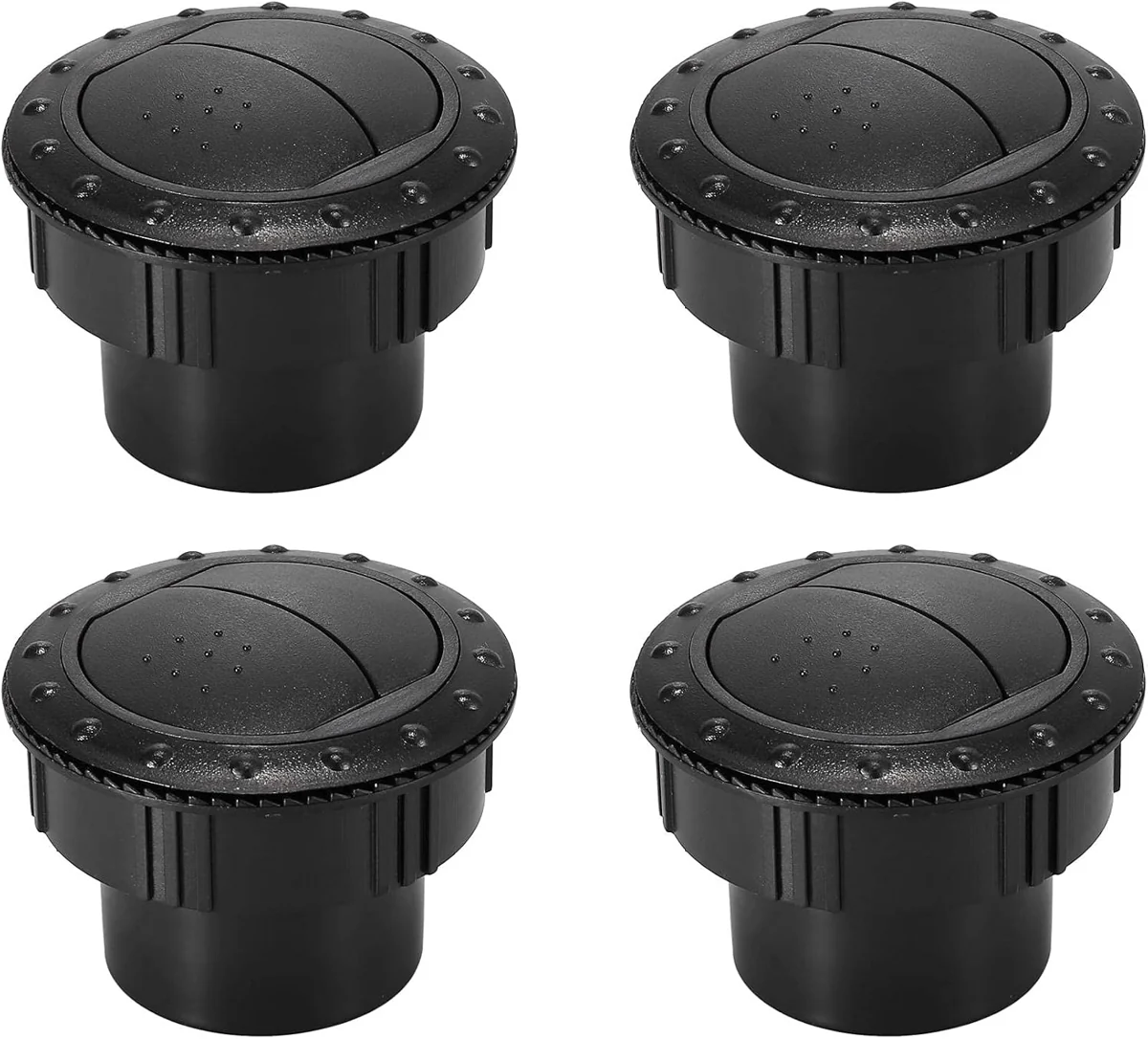

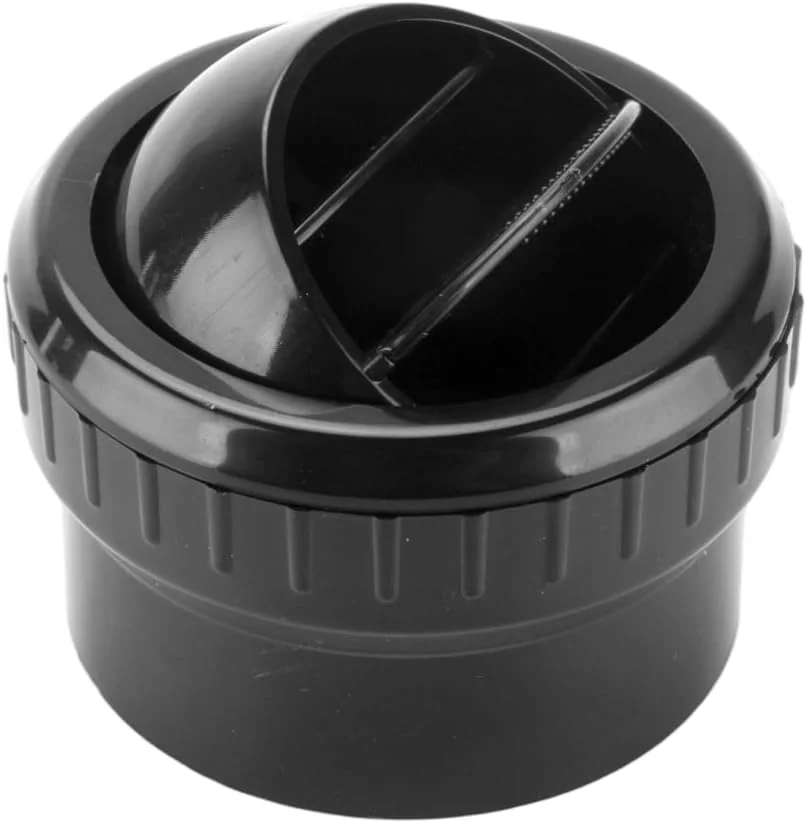

The X AUTOHAUX pack supplies four outlets, while the YOLLKY option offers another round dashboard-style vent. The louver control and mounting profile distinguish these outlet choices.
Product
What distinguishes it
Purchase link

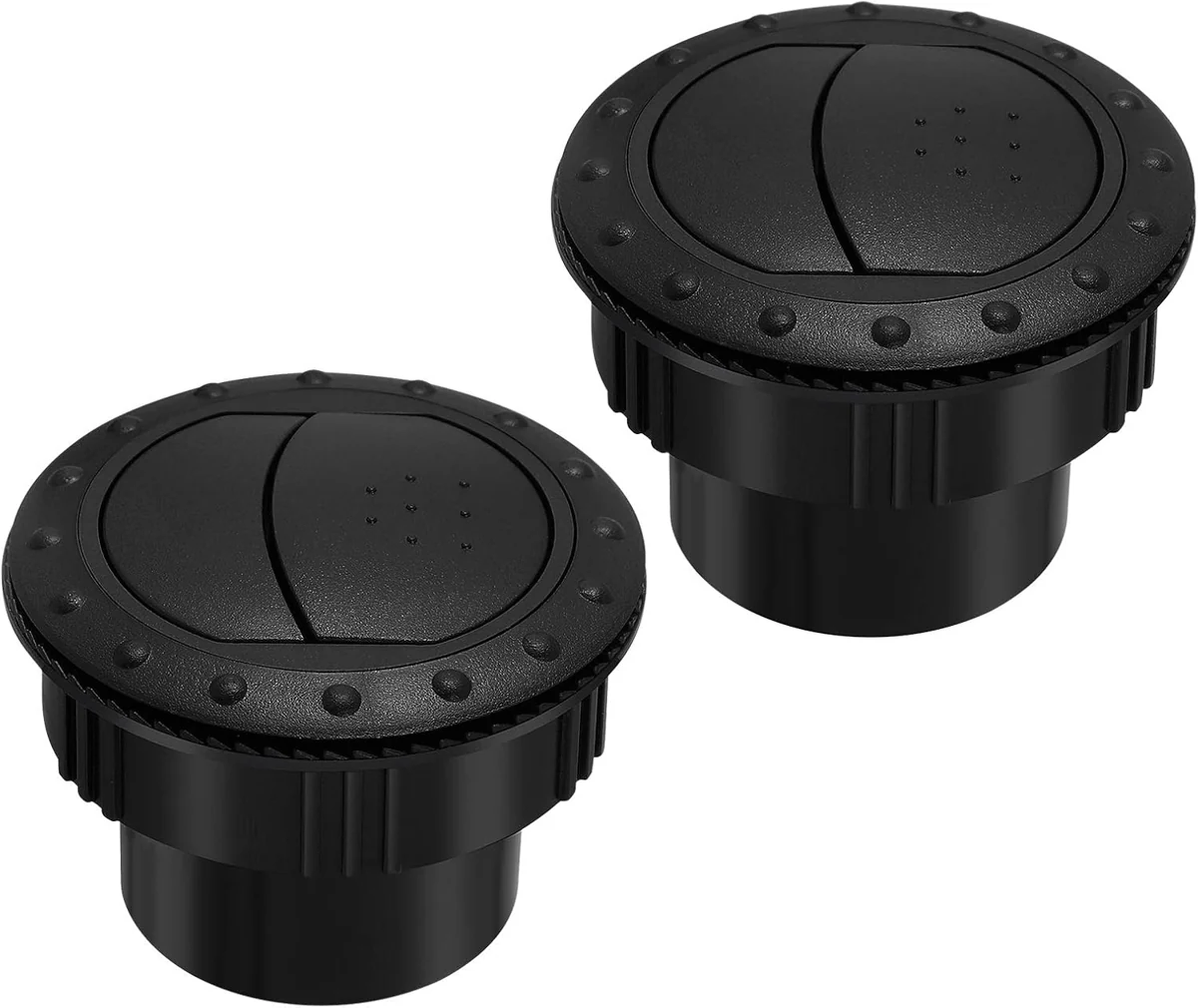

Garneck Sixty-Millimeter Round Air Vents
Two sixty-millimeter round outlets with adjustable louvers.
