I fitted drawer slides between the cabinet frame and my storage-bin drawer. The extended-drawer photograph shows the access arrangement I was building around the bins.
A fixed storage box would have made the bins harder to reach inside the cabinet frame. I included full-extension drawer slides so the storage drawer could pull outward.
The slides joined two custom pieces: the timber cabinet frame and the rubber-lined drawer. Their position was part of the layout I was developing for the storage system.
Getting the Bin Drawer Out of the Cabinet
I built the timber cabinet frame and the lined storage-bin drawer.
I attached the slides to the frame and drawer with screws.
I extended the drawer with the bins in place to view the access arrangement.

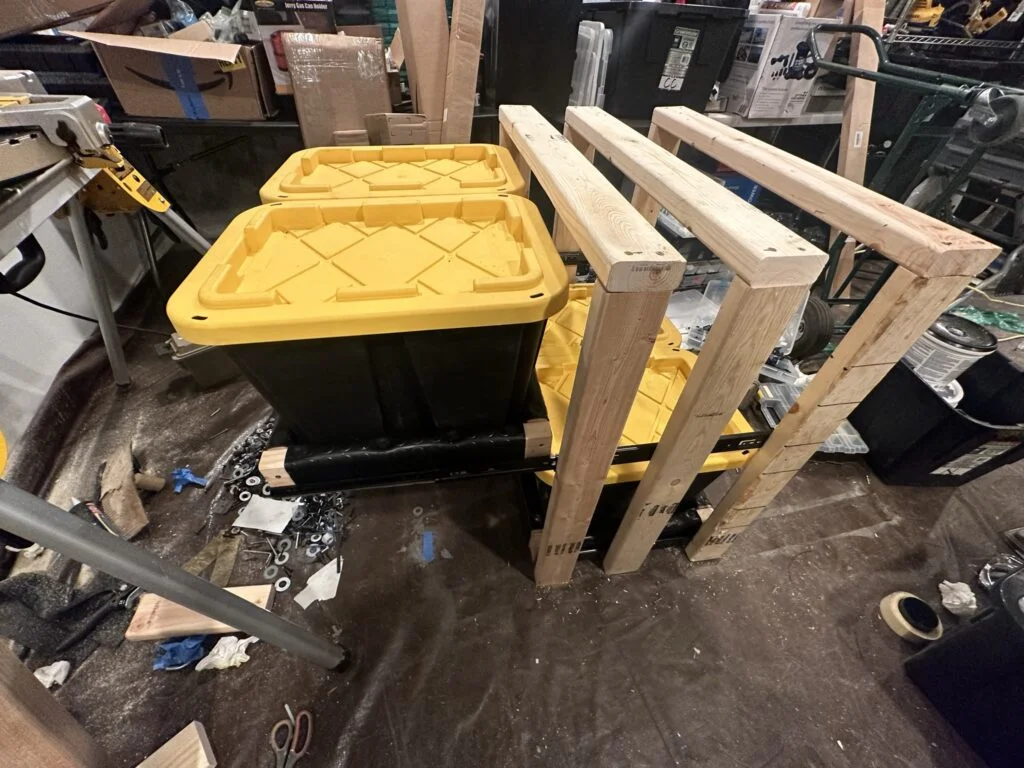

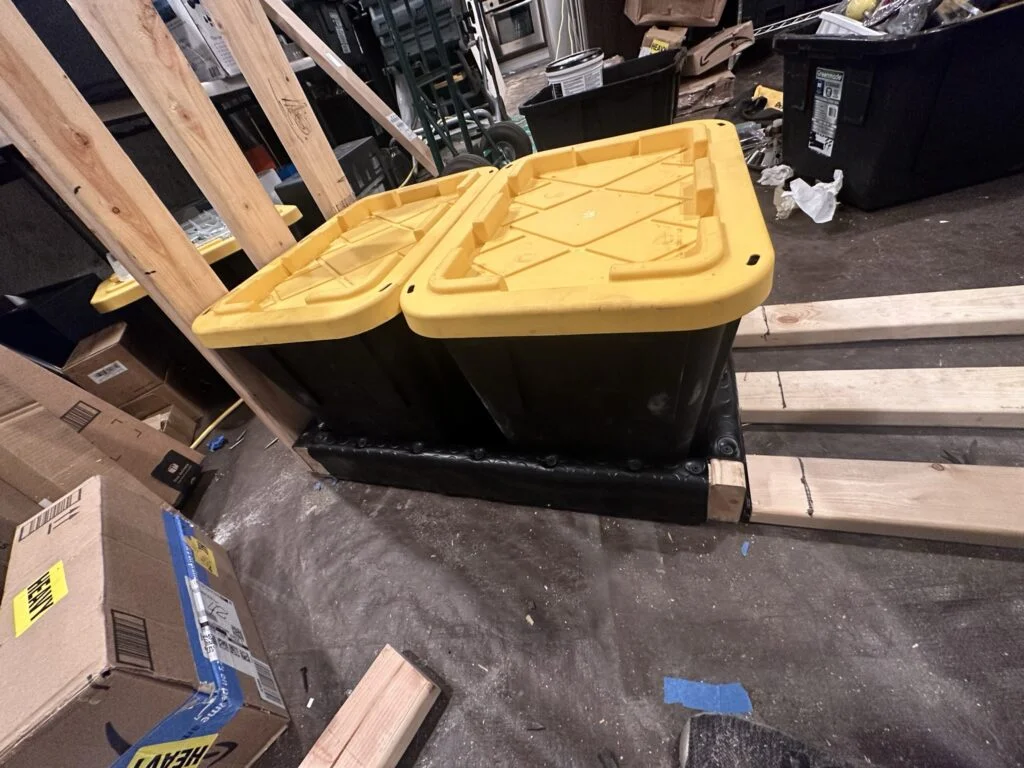

My storage-bin drawer extended from its timber cabinet frame.The containers positioned in the drawer during the storage-system work.
My Takeaway from This Job
The useful result shown in my photographs is the drawer extended from the frame. When comparing slides, I would distinguish plain extension, a locking mechanism and soft-close action.
The slides linked the custom drawer and cabinet into a pull-out storage assembly.
Product Details And Van-Build Uses
Specification
Product Detail
Family
A4510 full-extension side-mount rails
Action
Ball-bearing extension with detachable inner rail
Layout
Matched rails on opposite drawer sides
Side mount drawer slides need a parallel cabinet opening and a drawer sized for the space between the rails. Measure the inside cabinet depth, drawer depth and both side gaps before selecting a length. AOLISHENG’s installation guide shows the inner rail release and a level mounting sequence. Its family instructions give a nominal half-inch side clearance, which belongs in the drawer-width calculation. In my bin-drawer project, the practical goal was access to the containers after the drawer pulled out of its frame.
Which Measurements Come Before Choosing Slide Length?
Record cabinet depth, drawer depth and the available side clearances. Keep the exact slide length with the drawer drawing.
Alternative products
Two Alternatives to Compare

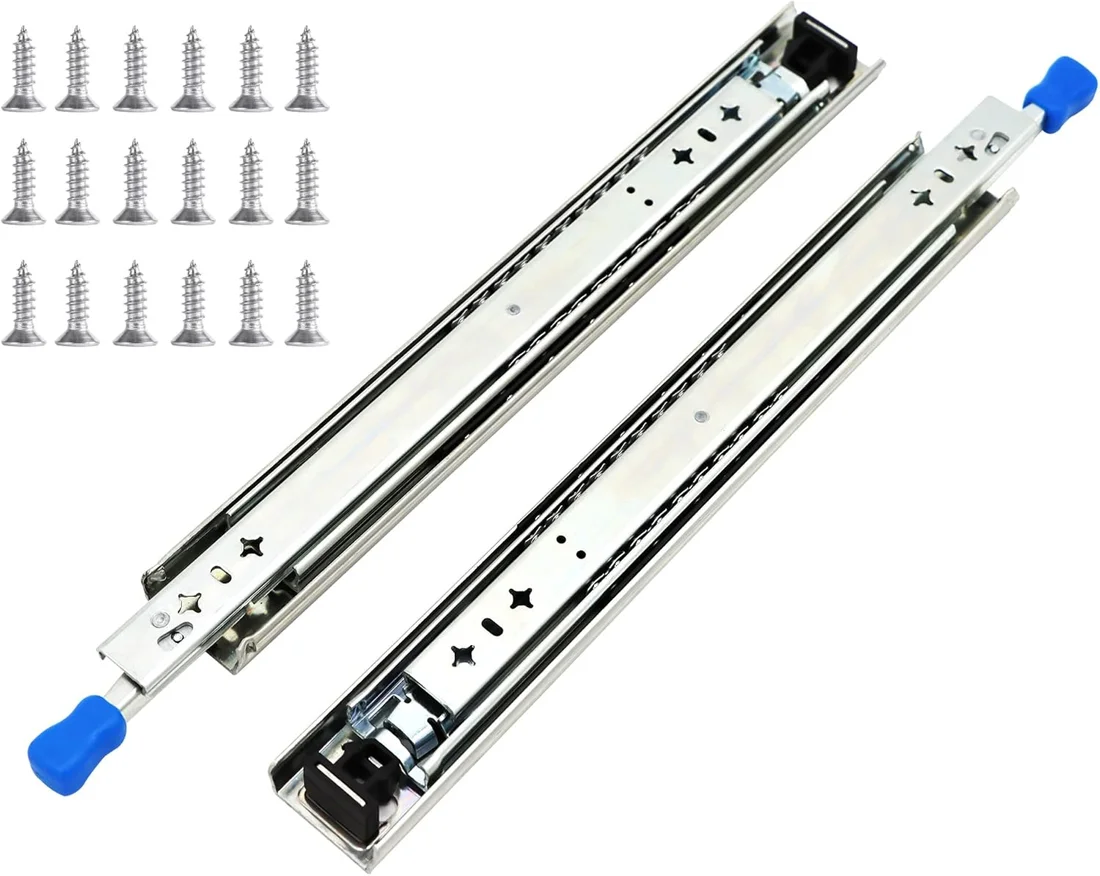

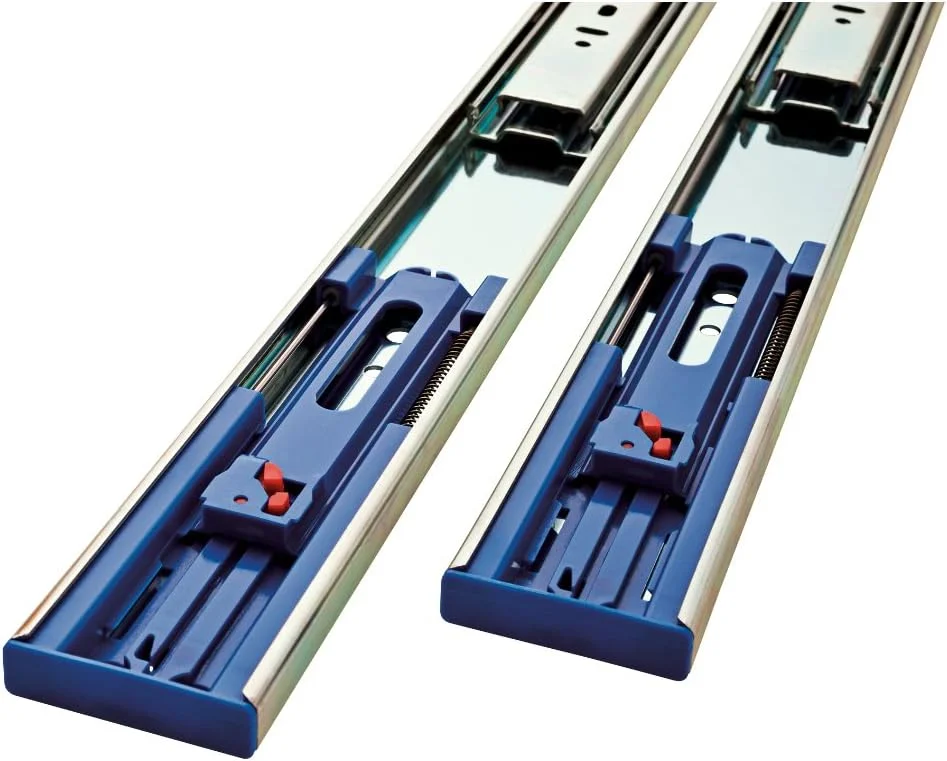

The KCOLVSION alternative adds a locking mechanism, while the Liberty 942005 adds a soft-close action. Those are different operating features to compare with the conventional full-extension slides in my materials list, along with rail length and mounting arrangement.
These side-mounted ball-bearing slides provide full drawer extension with a locking mechanism. The locking design offers a different operating feature from a conventional drawer slide.
