The Item in My Kit

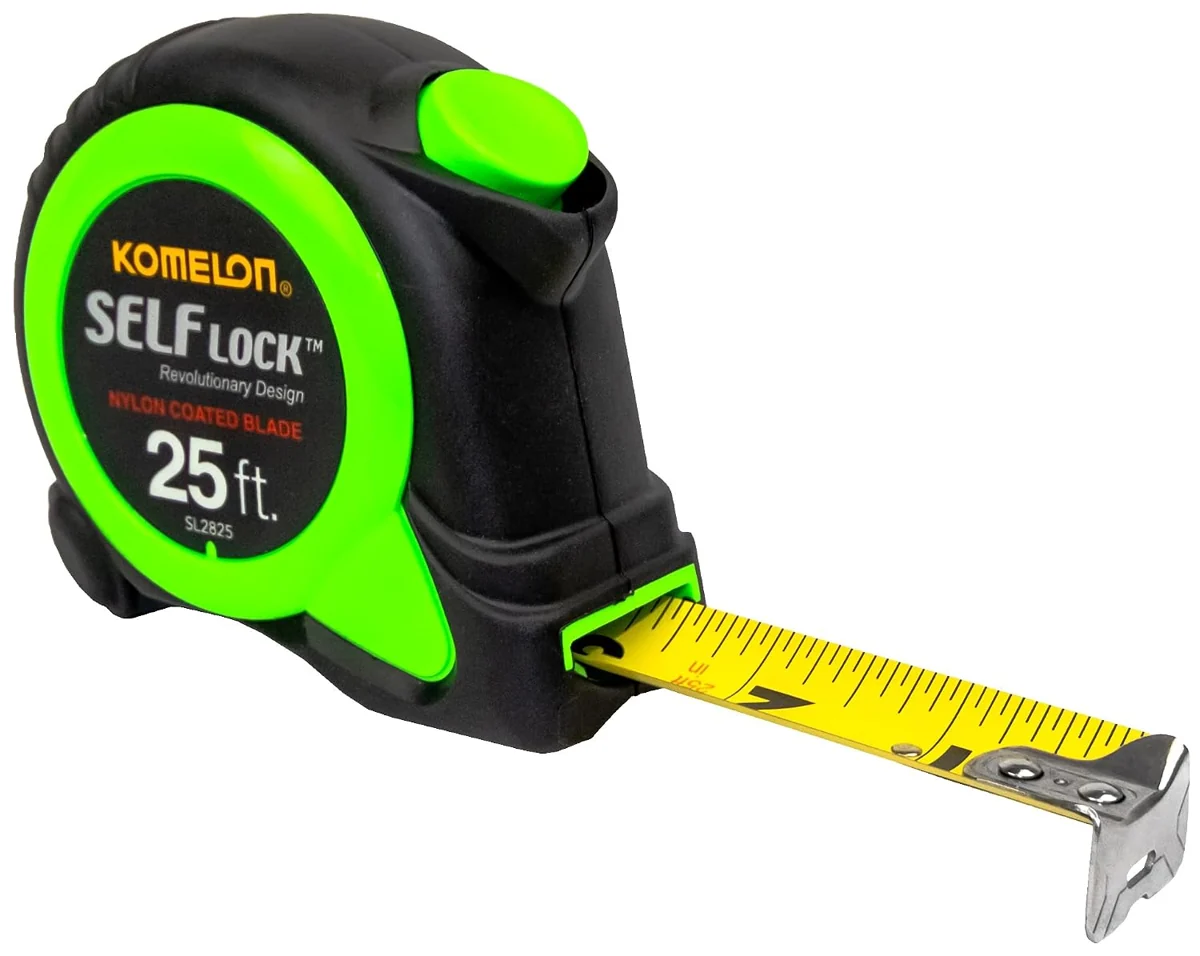

I bought Komelon Self-Lock Tape Measure as part of my camper van equipment.
The storage-bin drawer began with measurements and a timber frame on the patio. Its width, depth and height had to work together with the slides and the surrounding cabinet.
Measuring Before the Drawer Frame and Lining Stages
- I began the storage drawer with a measured layout and timber frame on the patio.
- I joined the frame, added inside brackets and fitted the base.
- I lined the drawer and attached the slides to the surrounding cabinet frame.
Camper Van Project Applications
Measuring inside a partly built van can mean working between obstructions and curved surfaces. Short supported measurements and long unsupported spans put different demands on a tape. Recording which surfaces a measurement runs between helps when returning to the same layout later.
For a wider view of the build kit, see my van conversion tool checklist and budget versus professional tool comparisons.
Manufacturer Specifications And Instructions
| Specification | Manufacturer Detail |
|---|---|
| Model | SL2825 |
| Tape Length | 25 feet |
| Blade Width | 1 inch |
| Lock | Automatic blade lock |
| Retraction | Thumb push button |
Komelon’s catalog lists SL2825 separately from SL2825IE, so the original model identity matters when comparing measurement scales. The self-lock mechanism holds the extended blade until the release is pressed. My review below describes the more limited rigidity I experienced on longer runs; for a van layout, recording a fixed start point and keeping the tape supported helps make repeated measurements easier to compare.
My Experience with This Tool
This inexpensive tape measure worked for the measuring I needed during the build. It felt less substantial than more expensive ones, and the blade did not stay stiff on longer runs.
Watch My Komelon, IRWIN And SWANSON Measuring Tool Review
My shared review covers the inexpensive Komelon tape that worked for my measuring needs, its less-rigid blade over longer runs, and the two squares I used for corners and measurements.
Press Play To Start The Video.
Read The Video Transcript
Hi, I'm Steve Smith with Camper Van Freedom. Today I'm going through three measuring tools from my van build: the Komelon Self-Lock tape measure, the IRWIN carpenter square, and the seven-inch SWANSON Speed Square. The tape did the measuring I needed, with a drawback on longer runs. Both squares worked well for me.
The Komelon tape was an inexpensive option that worked during the build. It felt less substantial than more expensive tapes, and the blade did not stay stiff on longer runs. That was the limitation I noticed. Its compact case, retractable blade and self-locking format are different things to compare from how rigid the blade feels when extended.
The IRWIN carpenter square gave me a reference for corners and measurements on wood and other materials. I used it, it worked well, and I recommend it. The matching picture shows the two straight legs of this steel carpenter-square format. That shape gives a different reference-edge arrangement from a compact triangular square.
The SWANSON Speed Square also worked well for accurate corners and measurements on wood and other materials. I recommend this one too. Its seven-inch triangular body and board-edge fence make it a different shape to handle and place against a workpiece. These are two actual tools in my review, even though their product pages also compare them as alternatives to each other.
Distance and corner layout are related, but separate jobs. A tape establishes a distance between points. A square provides a reference for a perpendicular line or corner. The diagram shows that relationship without turning it into a measurement of a particular van part. This workshop footage illustrates measuring and a workbench setup, alongside the exact tools from my kit.
My drawer photographs show why the layout stage mattered in the build. The project moved from a measured timber frame to an assembled drawer with a base and rubber lining. Those stages changed the access around the frame. The open-frame and lined-drawer pictures are my actual project context, rather than a claim that every measurement in the pictures was made with one particular tool.

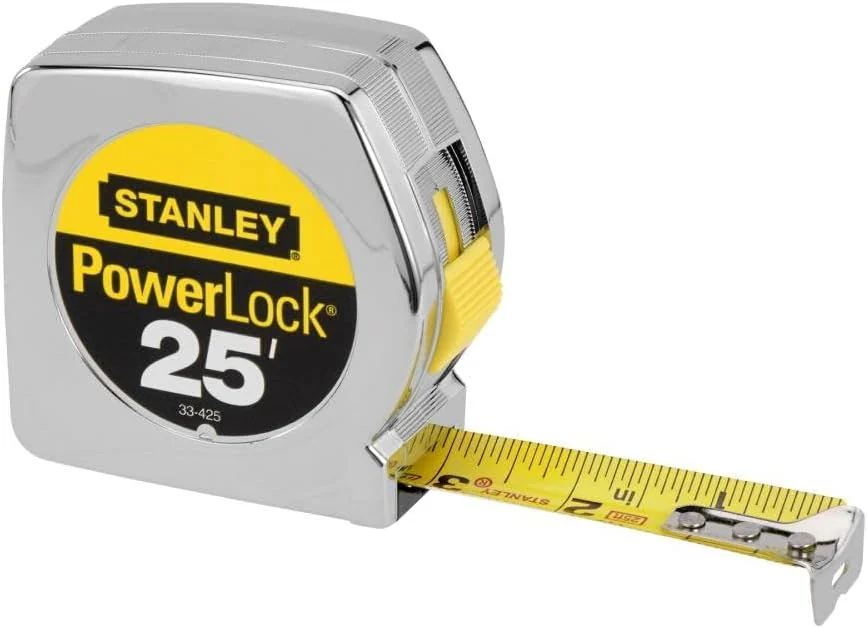

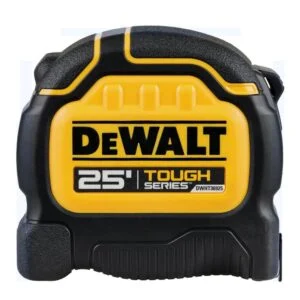

The Komelon page compares DEWALT ToughSeries and STANLEY PowerLock tapes. Their pictures show two other retractable-tape formats, with different case and blade-lock arrangements. They are buying alternatives here, not tapes I am adding a firsthand performance review for.
The square pages also include a Klein seven-inch rafter square. It keeps the compact triangular format, while the IRWIN carpenter square uses the longer two-leg arrangement. Klein is the additional alternative. My actual recommendations in this group are the IRWIN and SWANSON squares I used.
Thanks for watching. I'm Steve Smith with Camper Van Freedom. The three product pages, matching pictures and current Amazon buying options are linked below. My takeaway: the inexpensive Komelon worked for my measuring needs but lost blade stiffness over longer runs, and both the IRWIN and SWANSON squares worked well for me. Until next time.
Watch This Review On YouTube · English Captions (VTT) · Download The Transcript
My Takeaway from This Job
The drawer dimensions had to work together with the slides and cabinet space. The exposed-frame and lined-drawer photographs show how each stage changed the access to the next attachment point, keeping the original layout work relevant throughout the assembly.
