The roof diary records M5 hardware alongside quarter-inch rack fasteners. This checker is part of my purchased measuring kit for keeping thread identity separate from how similar the parts look.
The drilled connectors and fasteners joining my added extrusion to the roof rack.
The item in my kit
I bought Nut and Bolt Thread Checker Board as part of my camper van equipment.
The roof diary records M5 hardware alongside quarter-inch rack fasteners. This checker is part of my purchased measuring kit for keeping thread identity separate from how similar the parts look.
Where it fits my build
For the light bar, I cut an added extrusion beam and made three short drilled connectors. The rack side used quarter-twenty hardware, while the smaller 2020 extrusion used M5 hardware.
The different nuts changed the assembly sequence. A rack nut had to slide in through an opening, which meant undoing bolts I had already tightened; the smaller nuts could move and spin while I tried to start a bolt. I used an Allen key to reposition them.
The profiles and joint hardware during my roof-mount assembly.
My build notes
The cutting and drilling made the components, but positioning the small hardware took its own time. I recorded the difference between inserting the rack nuts and fishing the smaller nuts into place because it affected how the joint went together.
The profile, connector shape, bolt and slot nut all contributed to the assembly sequence.
Alternative products
Two alternatives to compare
The Original Thread Checker uses individual gauges on a flexible carrier. Manalete offers another board-style layout with additional measuring references.
Original Nut and Bolt Thread Checker

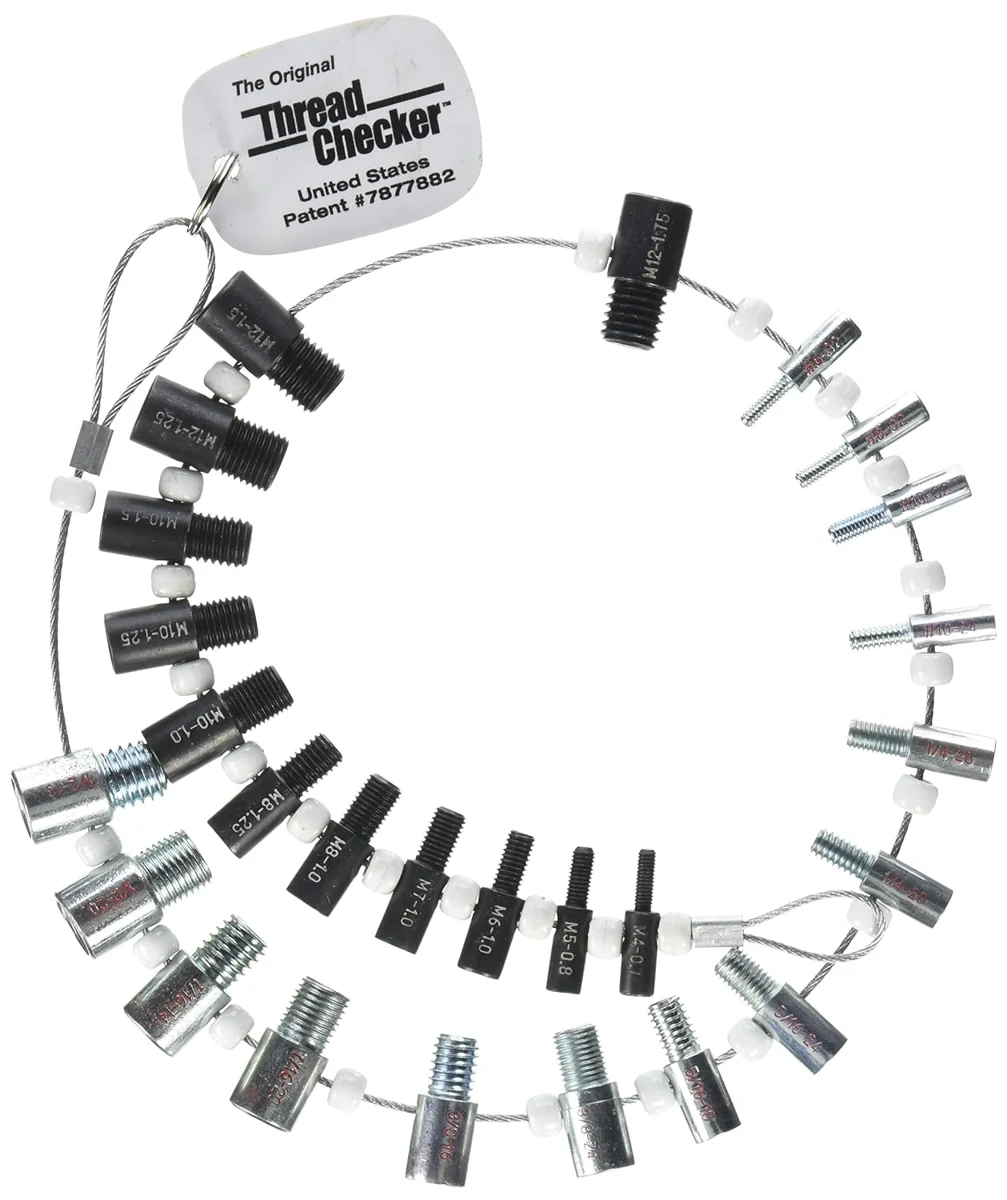

This checker holds individual inch and metric thread gauges on a carrier. Each labeled gauge offers a reference for identifying a nut or bolt thread.
