The Build Behind This Item

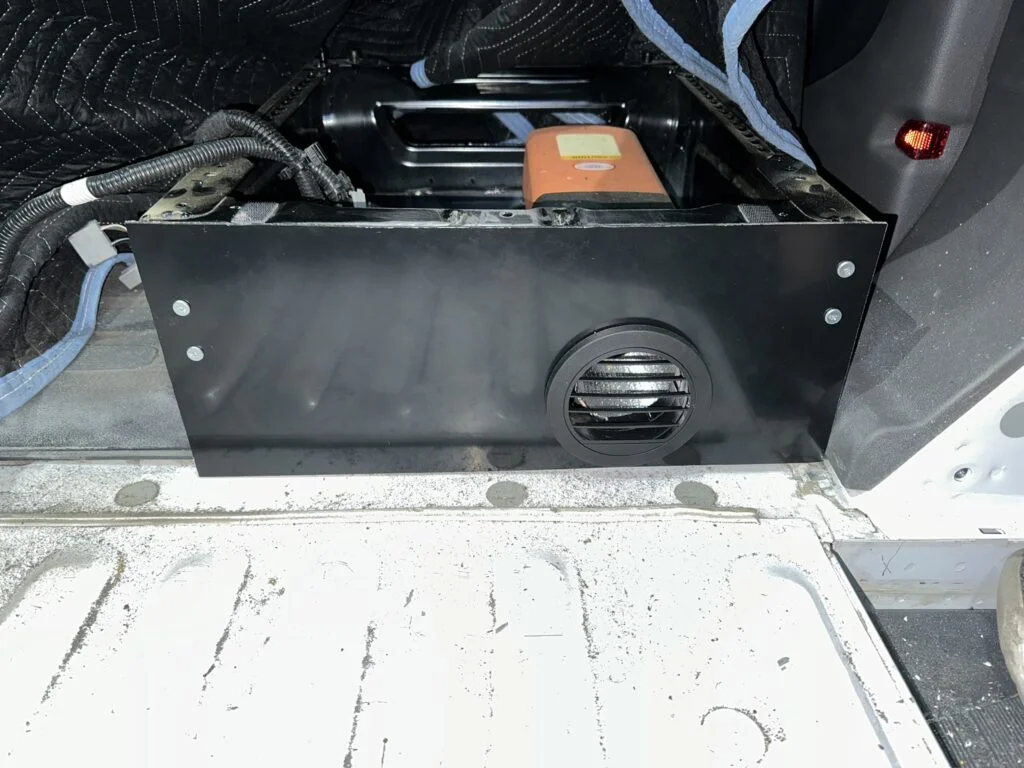

The cover face and side pieces were made from black aluminum composite sheet. I liked the sheet’s appearance and how it worked, and used brackets and self-tapping screws to assemble the pieces.
The harder part was fastening at the sloping seat platform. One awkward screw position left a hole that I planned to cover with a larger washer. That fitting experience is why I put panel shape and later screw access together when thinking about the cutting kit.
Putting the Jigsaw Purchase Beside the Cover-Panel Project
- I made a rectangular cover face and two triangular sides from black composite sheet.
- I joined the panels with brackets and self-tapping screws.
- I fitted the cover at the sloping seat platform, where the angled fastening positions made drilling awkward.
Camper Van Project Applications
A jigsaw is useful when an opening starts inside a panel rather than at its edge. Sink apertures, curved wall panels and removable access covers give it a different role from a circular saw making long straight cuts. Blade choice and the clearance beneath the panel matter as much as the outline drawn on top.
For a wider view of the build kit, see my van conversion tool checklist and budget versus professional tool comparisons.
Manufacturer Specifications And Instructions
| Specification | Manufacturer Detail |
|---|---|
| Blade Fitting | T-shank |
| Orbital Action | Four positions |
| Shoe Bevel Detents | 0°, 15°, 30° and 45° |
| Motor | Brushless |
DEWALT lists a variable-speed trigger and dial, an integrated dust blower and a lever-operated blade clamp. Those controls provide separate ways to adjust the cutting setup and change blades; the material being cut still determines the blade choice.
My Experience with This Tool

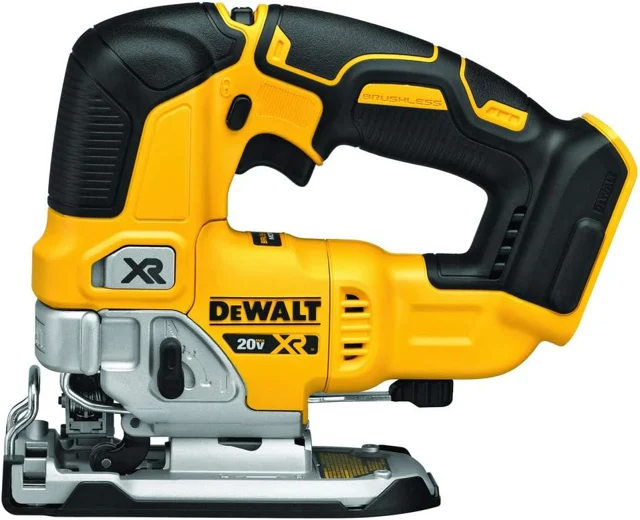

I bought my DEWALT DCS334B jigsaw on Amazon and used it for many projects involving wood, plastic and metal. It was particularly useful whenever I needed an opening inside a piece of material rather than a cut starting at its edge. For those jobs, I made a starter hole with my DEWALT drill and used the jigsaw to make the cutout.
The sink opening in my butcher-block countertop is one example. I also used the jigsaw to trim the countertop edges and cut the van’s metal siding when installing the van capsules.
For my build, its value came from the range of jobs it covered. It was a tool I reached for repeatedly as different parts of the conversion took shape.
I built much of the van on the road, carrying tools and materials in a trailer and working outside. Durability is the main reason I consider my DEWALT tools worth the money: they kept working through dirt, travel and rough handling.
My Takeaway for Choosing the Kit

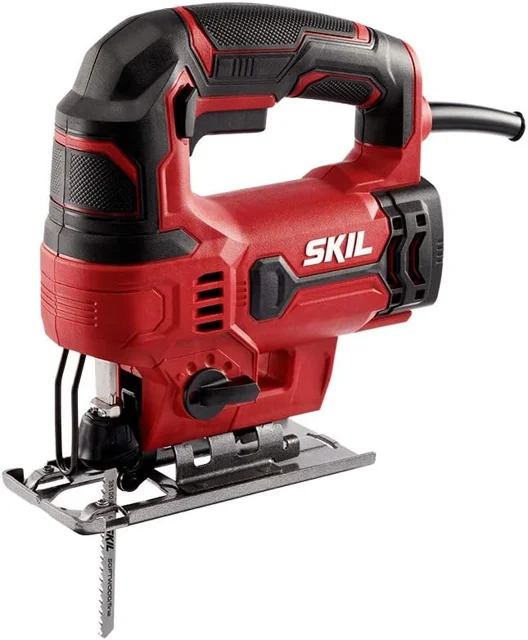

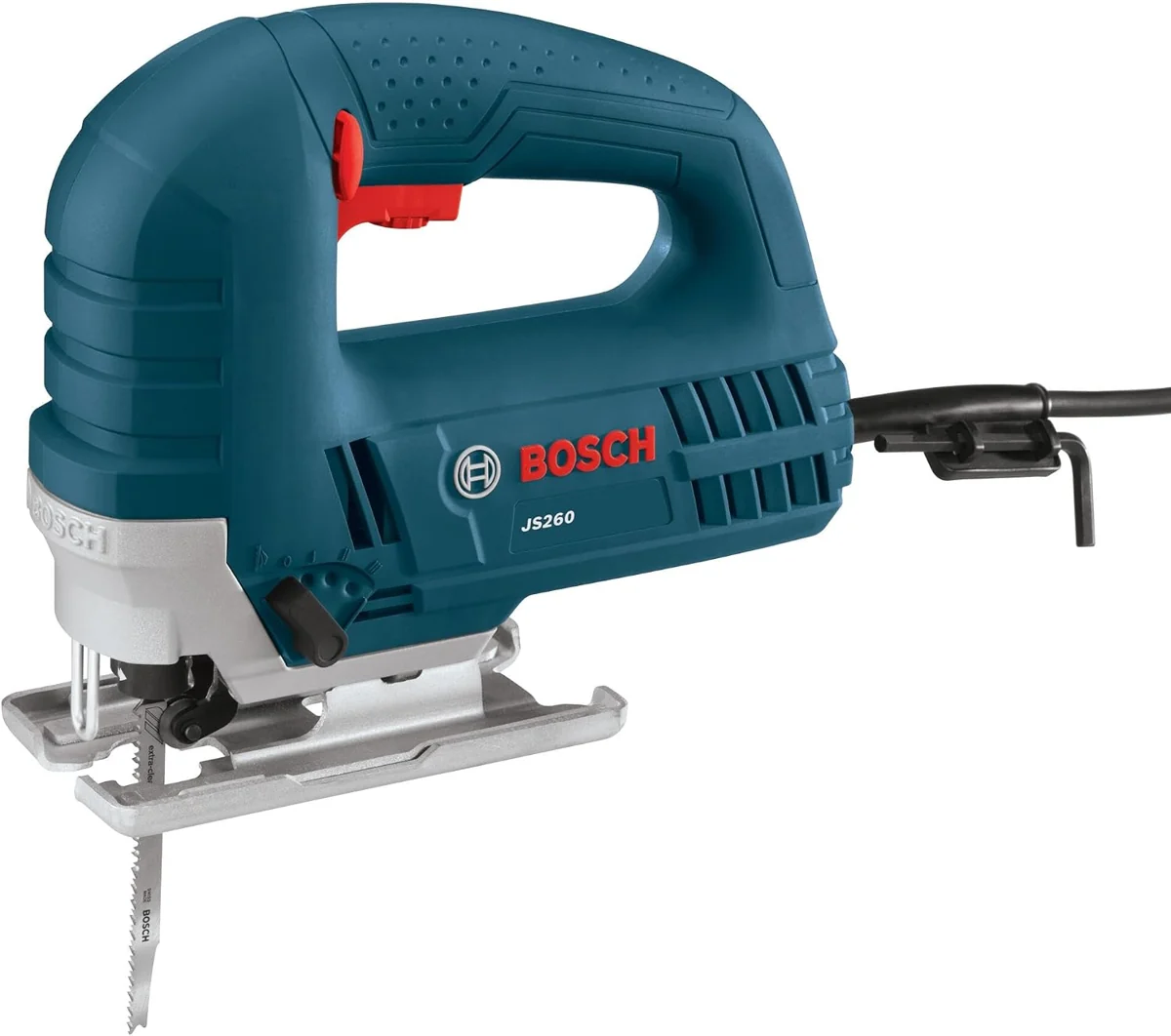

My buying comparison starts with cordless versus corded power, then the blade assortment for the panel work. DCS334B is my cordless purchase; Bosch JS260 and SKIL JS313101 are corded top-handle alternatives. The cover project also makes the fastening plan worth sketching before shaping the panels.
