80/20 is a brand that supplies several aluminum-framing profile families. “2020” often describes a 20 mm by 20 mm metric extrusion, but it can also appear in a manufacturer's part number with a different meaning. Compare exact profiles and compatible hardware rather than treating the brand and a size label as competing standards.
Read The Exact Profile Number And Dimensions

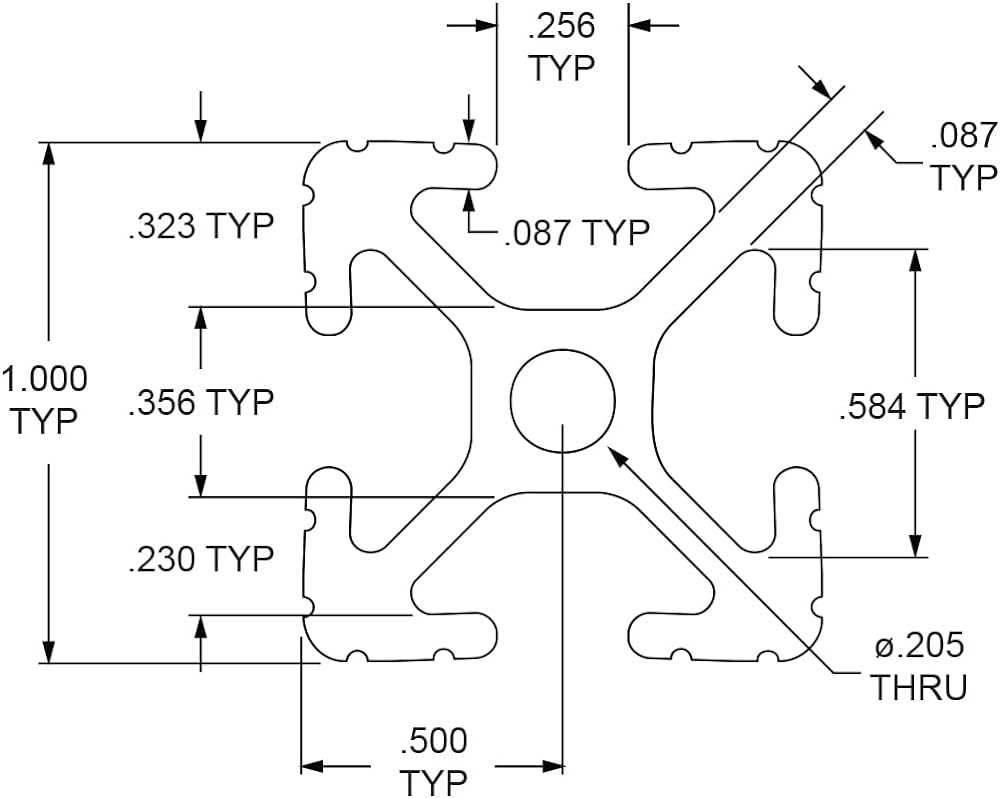

The supplier's drawing identifies the outside dimensions, slot shape and compatible series. These three 80/20 examples show why the full number matters:
| Manufacturer Part | Outside Dimensions | Documented Series |
|---|---|---|
| 20-2020-Black-FB | 20 mm × 20 mm | Metric 20 Series |

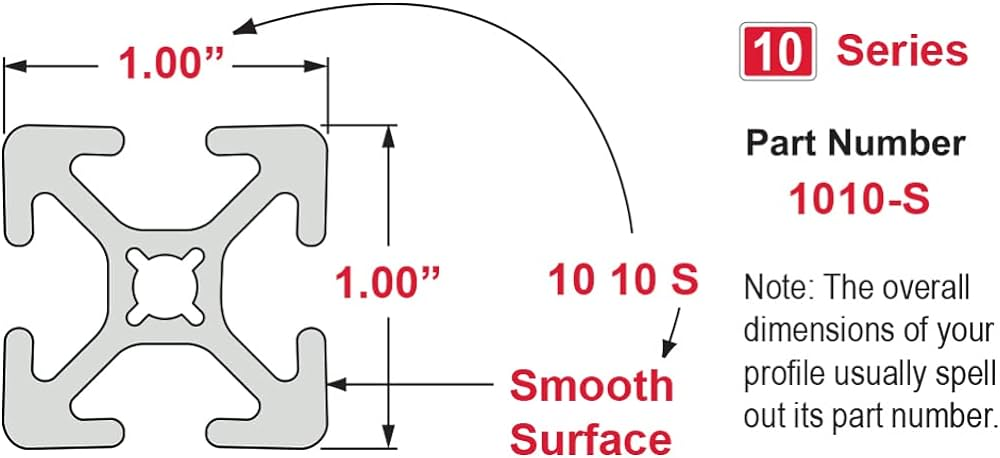

| 1010-Black | 1 inch × 1 inch (25.4 mm × 25.4 mm) | Fractional 10 Series |
| 2020 | 2 inches × 2 inches (50.8 mm × 50.8 mm) | Fractional 10 Series |
These are specific catalog examples, not interchangeable sizes. Another supplier's “2020” listing needs its own drawing and part identification.
Check units before copying dimensions into a layout. A one-inch profile is larger than a 20 mm profile; a change affects brackets, panel openings and the space occupied by a cabinet frame. Use the SketchUp Layout Guide to model the dimensions of the actual parts you choose.
Match Fasteners To The Actual Profile
Identify the supplier and series before selecting T-nuts, brackets or connectors. Check the fastener's documented profile compatibility, thread, engagement and installation requirements. Do not choose a nut solely because its bolt is M5 or 1/4-20: thread size and fit inside the slot are separate checks.
The two series can include different fastener options. Use the selected profile's specifications and connection information rather than a universal thickness estimate.
- Record The Part: Keep the manufacturer, complete part number and drawing.
- Check The Profile: Confirm outside dimensions, slot geometry and cut lengths.
- Match The Hardware: Confirm the nut, bolt and bracket are documented for the series and connection.
- Check The Assembly: Obtain requirements for its load, support and attachment to the vehicle.
- Plan Access: Allow space to install, tighten, inspect and service the connection.
For a roof rack, identify the rack model and its specified compatible accessories. The earlier Day 56 Roof Rack Entry supplies this van's build context. Ask the rack supplier before substituting extrusion or mounting parts.
Continue with Quick-Release Fitting Options when comparing serviceable attachments, or the Cabinet Guide for interior planning. Neither a size label nor a generic comparison certifies a vehicle structure's load capacity.
