Use the Folding-Bed References as a Layout Study
The original notes collect a manufacturer reference, possible hardware links and six images for a folding-bed idea. They explore how bed sections might move out of the way.
The notes include guesses about hinges, gas struts and mattress handling. Preserve those as questions to resolve.
Original Concept Notes and Images.

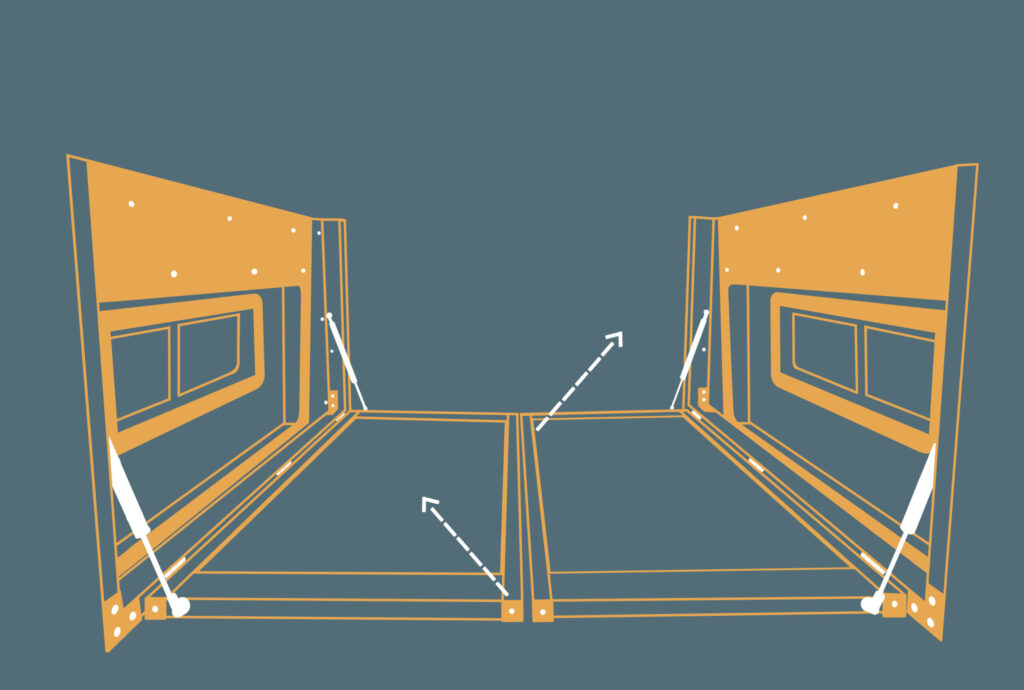

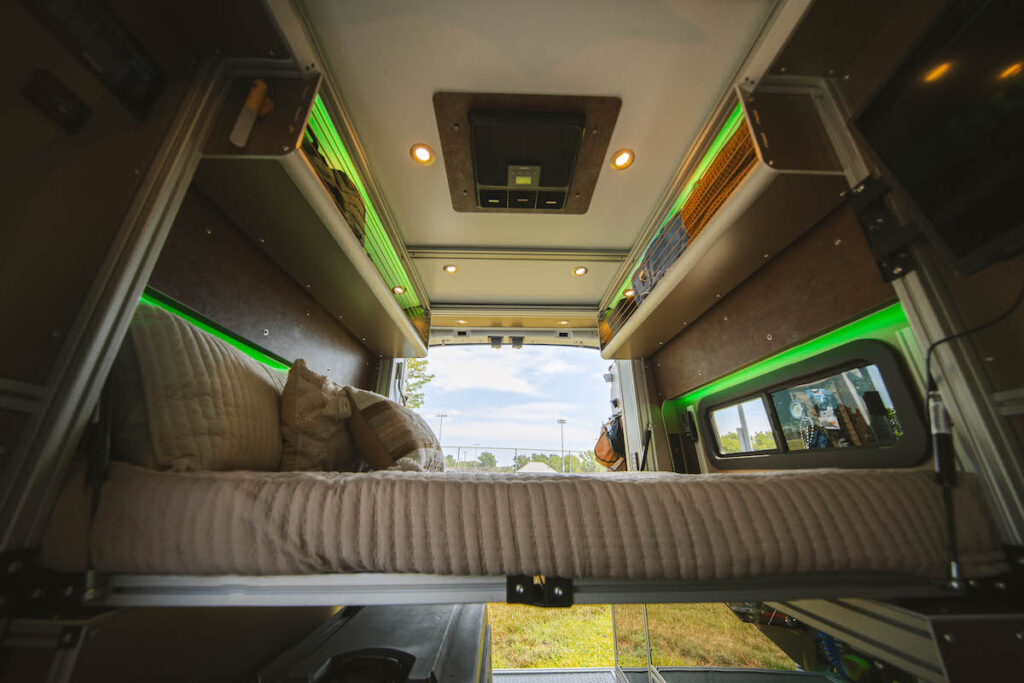

Vandoit MOOV drawbridge-bed example
Possible 2020 extrusion pivot-joint reference - Possible Hinge System
Possible RV-bed gas-strut reference - Possible Gas Struts
Appears like I can use regular door hinges from VanDoIt pictures.
Can probably secure mattresses to panels with tie downs so I can hold the bridges up and down without having to move the bed or bedding. Looks like they just cut a foam mattress in half. You can do this with a saw.
Open reference image 1
Open reference image 2
Open reference image 3
Open reference image 4
Open reference image 5
Open reference image 6Draw Each Position Separately
| Position | Record in the layout | Resolve separately |
|---|---|---|
| Bed open | Sleeping outline and nearby access | Complete support and attachment design |
| Bed folded | Panel and bedding envelope | Retention and clearances |
| Moving | The space swept by each section | Mechanism selection and safe operation |
| Vehicle travel | Intended stored configuration | Appropriate restraint and securing method |
Make a Reference Record for the Features You Want
Identify the image and the visible feature that interests you: the divided sleeping surface, the direction a panel moves or the space available when it is folded. This prevents an appealing layout from becoming an assumed hardware specification.
- Record the exact profile and panel choices once selected.
- Keep hinge, lift-assist, support and retention requirements as distinct design decisions.
- Account for the intended mattress and bedding in both open and folded layouts.
- Mark the access needed to operate, inspect and service the completed assembly.
Use the actual hinge, mattress and strut information to develop the assembly design.
Continue with the fixed-versus-convertible bed guide, the usable-space layout reference and the decision log.
Reference guide expanded October 20, 2026. Original publication date and archived references retained.
Product Options

Alternative: Vepagoo Gas Struts with Brackets
These gas struts provide lifting assistance through a pressurized cylinder and rod. The included brackets attach the strut ends to a moving panel and its support.
View On Amazon: Alternative: Vepagoo Gas Struts With BracketsWatch: Four Folding-Bed Layout States
My narrated guide follows open, folded, moving and vehicle-travel states when studying a folding-bed layout idea.
Press Play To Start The Video.
Read The Video Transcript
Hey, I'm Steve Smith with Camper Van Freedom. My folding-bed reference page collects ideas for moving sleeping space out of the way. To study an idea, draw four different states: bed open, bed folded, moving between them and stored for vehicle travel. Each state answers a different layout question.
Start with the bed open. Record the intended sleeping outline and the space around it. Include nearby storage and the route used to get in and out. Keep the intended sleeping dimensions consistent while comparing options. Complete support and vehicle attachment are separate design decisions that need their own record.
Next, record the bed folded. Include the complete panel and bedding envelope, rather than only a thin line where a panel might sit. Identify where the mattress sections, pillows and blankets go. Compare the space available for the daytime activity you want, and record any opening or handle that becomes covered.
Then study the movement between those two positions. Record the space crossed along the way, with nearby furniture still in place. Check intermediate positions, the place you would operate from and the access needed to reach the mechanism. A clear open position and a clear folded position do not examine the space between them.
Record the intended stored configuration for vehicle travel as its own state. Keep retention and securing requirements visible in the design record. Hinge or pivot selection, lift assistance, support and retention have different jobs. Record the exact profile, panel, mattress and mechanism choices once selected, together with their actual installation and operating information.
Keep a reference record for the feature that interests you. Name the source image, the visible feature and the question to resolve. A divided sleeping surface, a panel's direction of movement and a folded-space opening are separate observations. Bring the four state records into your bed comparison and layout model. My guide keeps the original references and the related planning pages together. Thanks for watching. I'm Steve Smith with Camper Van Freedom. We covered open, folded, moving and vehicle-travel states for a folding-bed layout study. See you next time.
