Reading Wiring Diagrams (Explanation, Symbols Legend)

Basic Electrical Signals #

Basic Steps to Read Wiring Diagrams: #

1. Identify the Symbols: Start by identifying and understanding the symbols used in the diagram. Diagrams should have a legend or key that explains what each symbol represents.
2. Understand the Lines: Solid lines are used to represent wires or conductors, showing how components are connected. A dashed or dotted line might represent a connection that is not physically present but is understood to be there (like a wireless connection or a connection that goes through other components).
3. Trace Circuits: Follow the lines from one component to the next to understand how the current flows through the circuit. This will help you understand the operation of the circuit and how it’s controlled.
4. Look for Labels: Components and wires may be labeled with numbers, letters, or names to indicate their function or location. This is especially useful for troubleshooting or when multiple components of the same type are present.
5. Check for Power Source: Identify the power source in the diagram (e.g., a battery or power supply) and note how it’s connected to other components.
6. Understand the Grounding: Ground symbols indicate where a circuit is grounded, which is essential for safety and proper operation.

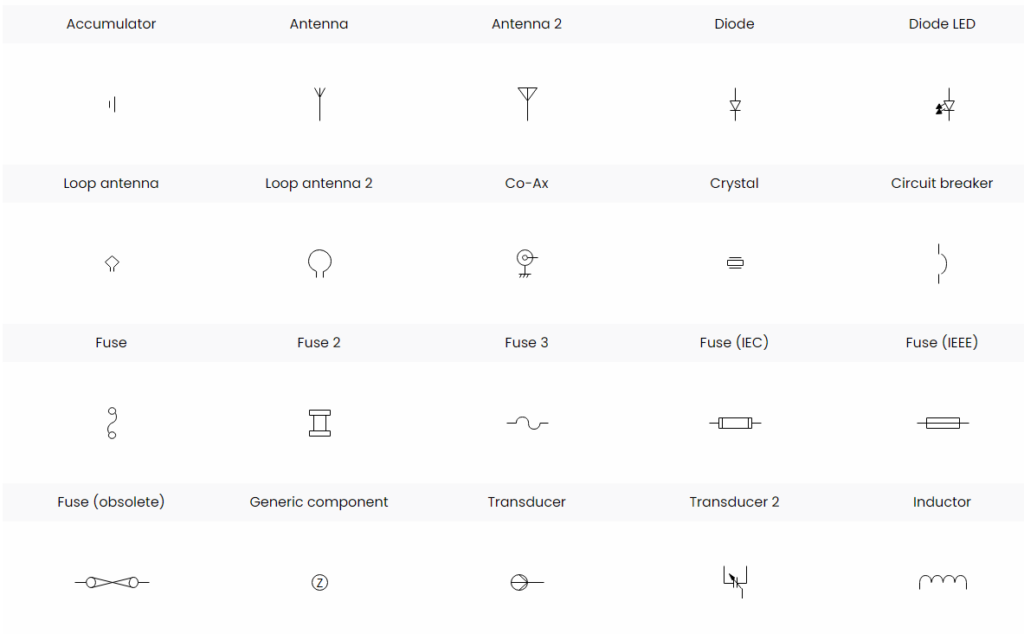

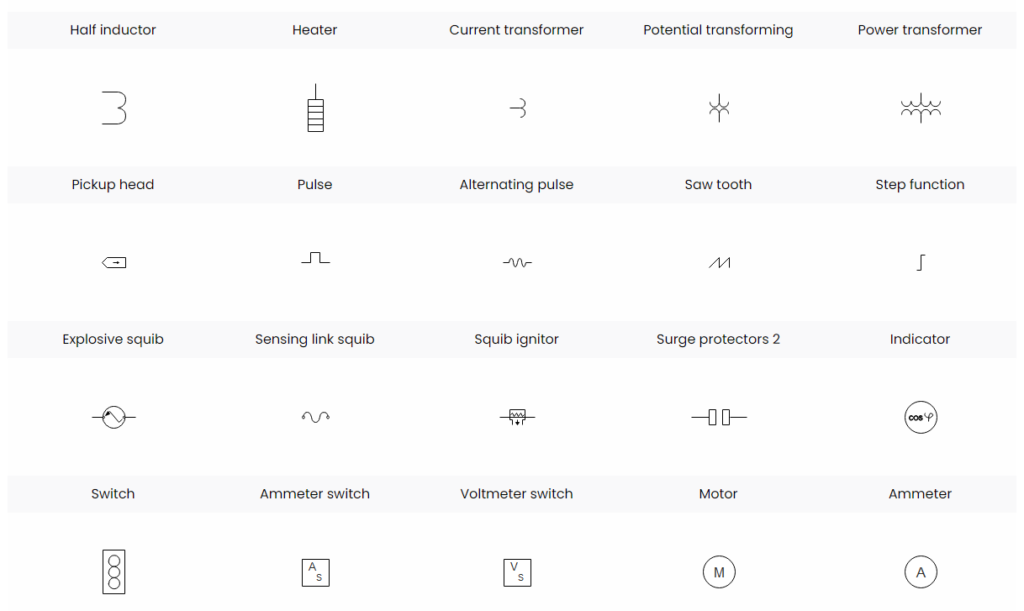

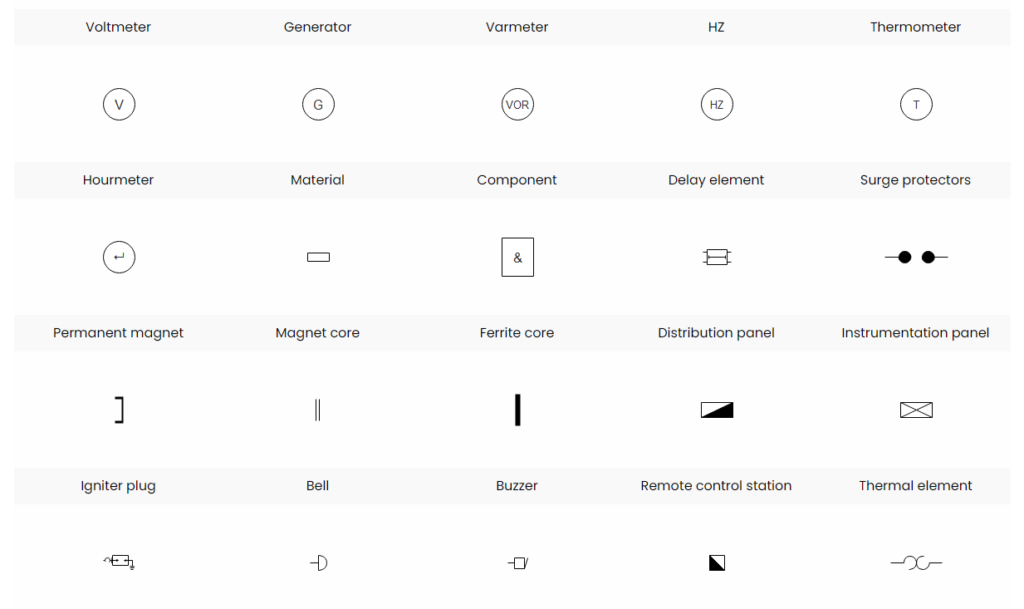

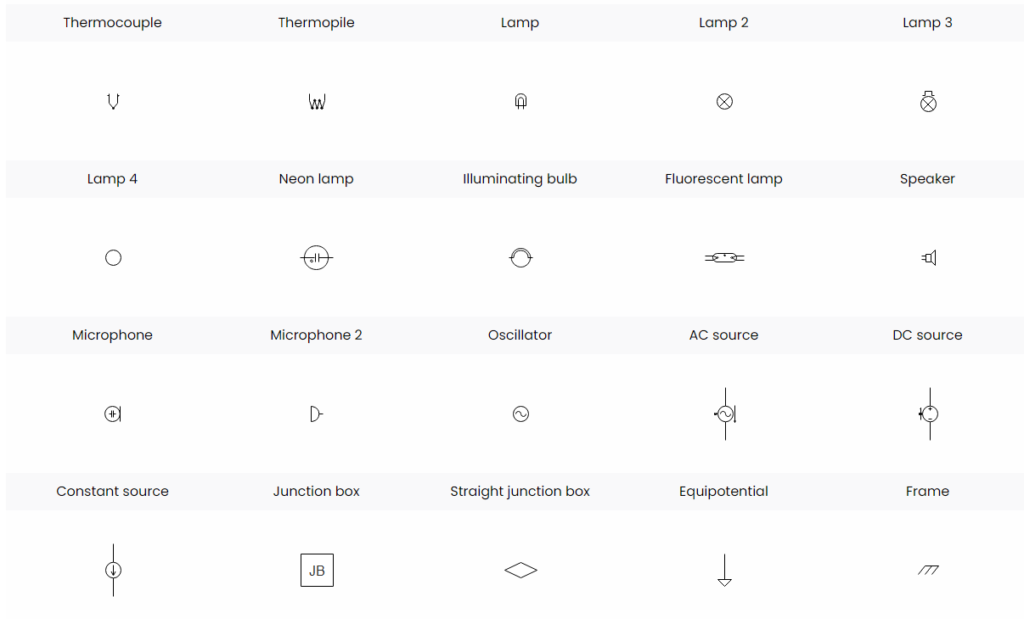

Common Symbols Used in Wiring Diagrams: #

• Wire/Conductor: A straight line represents a wire or conductor that connects components.
• Junction: A dot or small circle where wires cross or join indicates a junction or connection point.
• Switch (General): A break in a line with an angle, often accompanied by an actuator lever or push button symbol.
• Push Button Switch: A symbol resembling a button on a line, indicating a switch that closes a circuit when pressed.
• Resistor: A zigzag line indicates a resistor which limits the flow of current.
• Capacitor: Two parallel lines, often with one curved line, represent a capacitor, a component that stores electrical energy.
• Diode/LED: A triangle pointing to a line. An LED is indicated with two arrows pointing outwards, symbolizing light emission.
• Transistor: A combination of lines and symbols representing NPN or PNP transistors, which amplify or switch electronic signals.
• Ground: A series of one to three horizontal lines stepping down, indicating the ground or earth connection.
• Battery: A series of short and long lines parallel to each other, indicating a power source.
• Motor: A circle with the letter “M” inside, sometimes with two external lines indicating the terminals.
• Relay: A rectangle with a coil symbol inside, often accompanied by contact points (like switches) it controls.

This is a simplified overview, and many diagrams will include specialized symbols depending on the complexity of the system and the standards used by the diagram’s creator. As you work with wiring diagrams more, you’ll become familiar with the symbols and their meanings, making it easier to understand and work with electrical systems. Always refer to the specific legend or key provided with a diagram, as symbols can vary slightly between different diagrams or standards.
