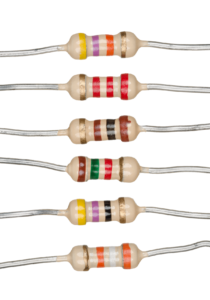

Resistors (Image, Definition)

A resistor is a fundamental electronic component that opposes the flow of electric current in a circuit. Its primary function is to reduce current flow and, in the process, lower voltage levels within circuits. Resistors are used in virtually all electronic devices and play a critical role in circuit design. Here are the key functions and characteristics of resistors:

Limiting Current: #

Resistors are used to control the amount of current flowing through a component. For example, a resistor placed in series with an LED can limit the current to a level that prevents the LED from burning out.

Voltage Division: #

Resistors are used in voltage divider circuits to produce a specific portion of the input voltage as an output. This is useful for reducing voltage levels to match the requirements of various components within a circuit.

Heat Generation: #

As current flows through a resistor, it converts electrical energy into heat due to the resistance. This property is utilized in applications like electric heaters.

Timing Circuits: #

Resistors can be paired with capacitors to create RC (resistor-capacitor) timing circuits. The time it takes for the capacitor to charge and discharge is determined by the resistor’s value, enabling timing functions in electronic devices.

Biasing: #

In semiconductor devices like transistors, resistors are used to establish proper operating conditions by setting voltage levels within the circuit.

Signal Conditioning: #

Resistors can also work alongside capacitors and inductors to filter noise from signals, match and terminate transmission lines, and perform signal attenuation.

Pull-up and Pull-down: #

Resistors are used as pull-up or pull-down resistors to ensure that input pins on digital circuits have a default logical state (high or low) in the absence of an input signal.

Characteristics of Resistors: #

• Resistance: Measured in ohms (Ω), this is the key property of a resistor, indicating how much it opposes the flow of current.
• Power Rating: Measured in watts (W), this indicates how much power the resistor can handle before it risks damage. Power dissipation in a resistor is given by P = I²R or P = V²/R, where I is the current through the resistor, V is the voltage across the resistor, and R is the resistance.
• Tolerance: This indicates how close the actual resistance value can be expected to be to the nominal value specified for the resistor.
• Temperature Coefficient: This describes how the resistor’s value changes with temperature, important for precision applications.

Resistors come in various forms, including fixed resistors with a set resistance value and variable resistors (or potentiometers) that can be adjusted to change their resistance. They are made from various materials, including carbon, metal film, and wire wound, each with different properties suitable for specific applications.
